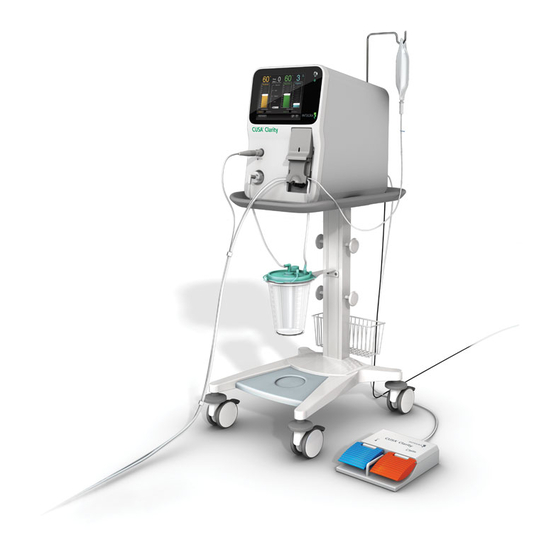

Integra CUSA Clarity Cleaning Instruction Manual
Ultrasonic surgical aspirator system
Hide thumbs
Also See for CUSA Clarity:
- Operator's manual (141 pages) ,
- Service and maintenance manual (117 pages) ,
- Instructions for use manual (84 pages)
Related Manuals for Integra CUSA Clarity
Summary of Contents for Integra CUSA Clarity

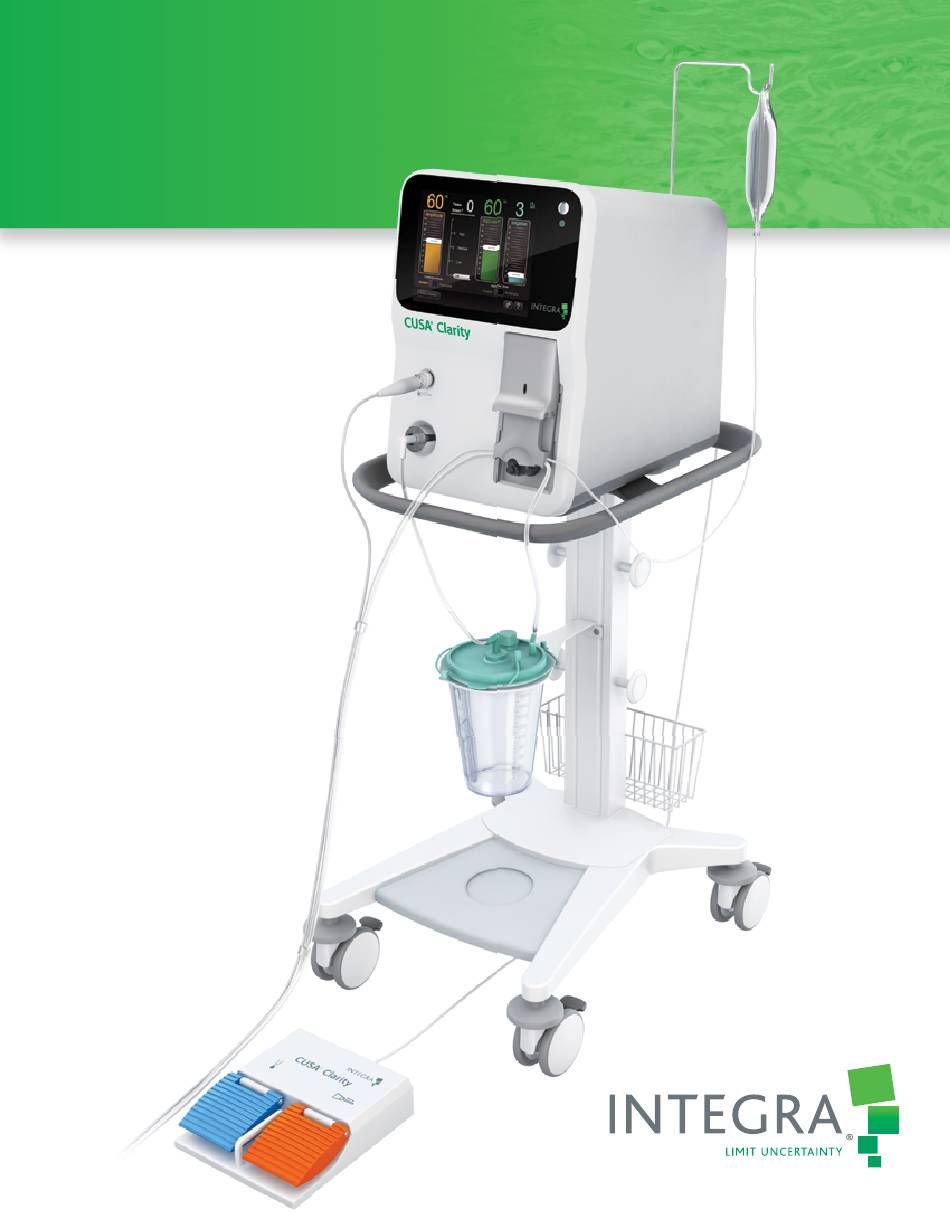

- Page 1 Integra CUSA Clarity ® ® Ultrasonic Surgical Aspirator System Cleaning Instruction Guide...
-
Page 2: Intended Audience
Integra CUSA Clarity – Ultrasonic Surgical Aspirator System ® ® Cleaning Instruction Guide PREFACE Intended Audience This operator’s manual and the equipment it describes are for use only by qualified medical professionals trained in the particular technique and surgical procedure to be performed. It is intended as a guide for using the CUSA® Clarity Ultrasonic Surgical Aspirator System only. -
Page 3: Disassembling The System
Disassembling the System CUSA Clarity Items to Keep and Discard After a Surgical Procedure ® Keep Discard Handpiece Nosecone Contamination Guard Flue EUTs (with less than 5 uses) EUTs (after 5 uses) Torque Base Tip Stylet Footswitch Torque Wrench CUSA Quick Connect ™... - Page 4 Integra CUSA Clarity – Ultrasonic Surgical Aspirator System ® ® Cleaning Instruction Guide 5. Slide the flue off of the nosecone base along the tip. 6. Twist off the nosecone counter-clockwise until it unlocks. 23 kHz 36 kHz 23 kHz 36 kHz 8.
-
Page 5: Disassembling The Console
Disassembling the Console 1. Detach the aspiration tubing from the patient port on the 2. Disconnect the contamination guard tubing canister. from the vacuum port of the canister. The contamination guard should not be removed NOTE from the console unless it is time to replace it (every six months or when the color changes). -
Page 6: Cleaning The System
Product damage may result if you do not follow the - Always unplug CAUTION WARNING instructions described in the cleaning section. the CUSA Clarity System before cleaning it. Never spray any cleaner directly onto NOTE the touch screen. Cleaning the Console, Touchscreen, and Cart surfaces 1. - Page 7 The CUSA Clarity cleaning brush is provided non-sterile and is not intended for use in a sterile environment. It is intended to be used and stored only in the reprocessing unit of the healthcare facility.
- Page 8 Integra CUSA Clarity – Ultrasonic Surgical Aspirator System ® ® Cleaning Instruction Guide Cleaning the Footswitch 1. Disconnect the footswitch from the console. 2. Wipe it clean. 3. If the footswitch is contaminated with blood or fluid: a. Immerse the footswitch in warm water containing detergent or disinfectant.
- Page 9 Sterilizing the System Packaging the Handpiece and Components for Sterilization The handpiece and components need to be packaged for sterilization. Integra provides a 23 kHz and 36 kHz sterilization tray for each of its corresponding handpieces The provided trays are intended to protect the CUSA Clarity Handpiece, EUT, and Torque Base during steam sterilization and during transfer to the sterile field.
- Page 10 Integra CUSA Clarity – Ultrasonic Surgical Aspirator System ® ® Cleaning Instruction Guide Most Common Sterilization Tray Configuration EUT Sterilization Tray Configuration Place the handpiece in the appropriate slot ➀ ➁ 2. Wrap the handpiece cable around the posts 3. Place the handpiece connector in the appropriate slot ➂...
- Page 11 • Wrapped—Sterilization tray double wrapped in hospital CSR material • Immediate-Use Steam Sterilization / Flash (Unwrapped) — Sterilization tray unwrapped The cycles below were validated for sterilizing the CUSA Clarity handpiece and components: Sterilization Cycles for the 23 kHz and 36 kHz Handpiece and Components...
- Page 12 Ireland Integra, the Integra logo, and CUSA are registered trademarks of Integra LifeSciences Corporation or its subsidiaries in the United States and/or other countries. CUSA Quick Connect is a trademark of Integra LifeSciences Corporation or its subsidiaries. Sani-Cloth is a registered trademark of Professional Disposables International, Inc. neodisher is a trademark of Chemische Fabrik Dr.
