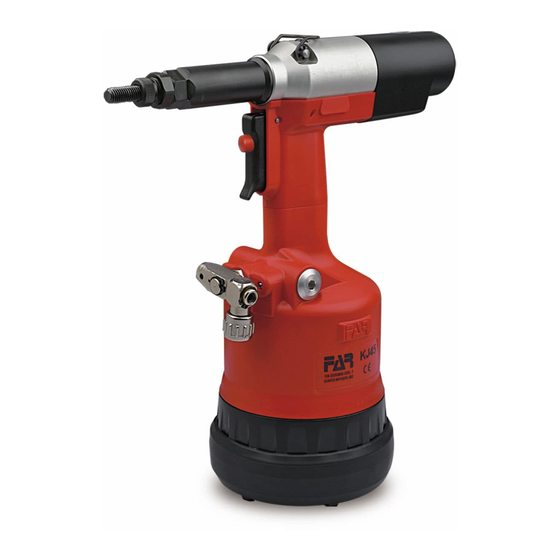

FAR KJ 45/S Translation Of Original Instructions

Hydropneumatic tool for inserts m4/m12
Hide thumbs Also See for KJ 45/S:
Table of Contents

Advertisement

Quick Links

Download this manual
- ISTRUZIONI ORIGINALI
I
RIVETTATRICE OLEOPNEUMATICA
PER INSERTI M4/M12
ISTRUZIONI D'USO - PARTI DI RICAMBIO
- TRANSLATION OF ORIGINAL INSTRUCTIONS
GB
HYDROPNEUMATIC TOOL
FOR INSERTS M4/M12
INSTRUCTIONS FOR USE - SPARE PARTS
- TRADUCTION DES INSTRUCTIONS ORIGINALES
F
OUTIL À RIVETER OLÉOPNEUMATIQUE POUR
ÉCROUS À SERTIR M4/M12
MODE D'EMPLOI - PIECES DETACHEES
- ÜBERSETZUNG VON ORIGINALANLEITUNGEN
D
PNEUMATISCH-HYDRAULISCHES NIETWERKZEUG
FÜR BLINDNIETMUTTERN M4/M12
BEDIENUNGSANLEITUNG - ERSATZTEILE
- TRADUCCION DE LAS ISTRUCCIONES ORIGINALES
E
REMACHADORA OLEONEUMATICA
PARA TUERCAS M4/M12
INSTRUCCIONES DE USO - PIEZAS DE REPUESTO
- TŁUMACZENIE ORYGINALNEJ INSTRUKCJI
PL
NITOWNICA OLEO-PNEUMATYCZNA
DO NITONAKRĘTEK M4/M12
INSTRUKCJA OBSŁUGI - CZĘŚCI ZAMIENNE
- ПЕРЕВОД ОРИГИНАЛЬНЫХ ИНСТРУКЦИЙ
RUS
МАСЛЯНО – ПНЕВМАТИЧЕСКИЙ ЗАКЛЁПЫВАЮЩИЙ АППАРАТ
ДЛЯ ВСТАВОК М4/М12
ИНСТРУКЦИИ ПО ИСПОЛЬЗОВАНИЮ - ДЕТАЛИ
KJ 45/S

Advertisement

Table of Contents
loading

Related Manuals for FAR KJ 45/S

Summary of Contents for FAR KJ 45/S

  • Page 1 KJ 45/S - ISTRUZIONI ORIGINALI RIVETTATRICE OLEOPNEUMATICA PER INSERTI M4/M12 ISTRUZIONI D’USO - PARTI DI RICAMBIO - TRANSLATION OF ORIGINAL INSTRUCTIONS HYDROPNEUMATIC TOOL FOR INSERTS M4/M12 INSTRUCTIONS FOR USE - SPARE PARTS - TRADUCTION DES INSTRUCTIONS ORIGINALES OUTIL À RIVETER OLÉOPNEUMATIQUE POUR ÉCROUS À...

  • Page 2: Safety Measures And Requirements

    • For all maintenance and/or repairs please contact FAR s.r.l. authorized service centers and use only original spare parts. FAR s.r.l. may not be held liable for damages from defective parts caused by failure to observe what mentioned above (EEC directive 85/374).

  • Page 3: Tool Identification

    KJ 45/S TOOL IDENTIFICATION MAIN COMPONENTS The riveting tool KJ 45/S is identified from a marking A) .................Threaded tie rod that shows company name and address of manufacturer, B) ..................Head designation of the tool, CE. Always refer to the information on C) .............Ring-nut clamping head...
  • Page 4 KJ 45/S AIR FEED (fig. f1) PRELIMINARY OPERATIONS (fig. f2-f3) Check that the threaded tie rod (A) and head (B) couple The compressed air system must be provided with air assembled on the riveting tool is suitable to the size of the cleaners and condensation drains and must guarantee that insert to clamp;...
  • Page 5 KJ 45/S 1 ÷ 4 Tie rod max. stroke Revolutions (M) Tie rod stroke Revolutions (M) Tie rod min. stroke Revolutions (M) ~ 8 mm ~ 0.4 mm ~ 2 mm PLACING OF THE INSERT (fig. f4-f5-f6) Check that the threaded tie rod (A) and head (B) couple assembled on the riveting tool is suitable to the size of the insert to be used.
  • Page 6 KJ 45/S WORKING PROBLEMS (fig. f7) Any time it is necessary to unscrew forcedly the threaded tie rod from the insert, push the button (P). ATTENTION! Carry out this operation keeping the riveting tool firmly in order to avoid sharp movements which could damage people or things.
  • Page 7 KJ 45/S CHANGE OF SIZE (fig. f8-f9-f10-f11) The riveting tool is supplied with 6 pairs of threaded tie-rods (A), heads (B), entreiners (R) and, spacers (S) only for tie- rods from M4 to M6 (f8). To change the size make as follows: •...
  • Page 8 KJ 45/S TIE-ROD/HEAD UNIT ADJUSTMENT (fig. f14-f15-f16) Changing the length of the insert to clamp, the position of the head (B) compared to the threaded tie rod (A) should be adjusted. Disconnect the compressed air feeding from the tool. Screw an insert of the desired length on the threaded tie rod manually until the insert head touches the riveting tool head (B).

  • Page 9: Maintenance

    It is advisable to carry out a complete overhaul of the riveting tool after 600,000 cycles or every year. In this case apply only to centres authorized by FAR S.r.l. DISPOSAL OF THE RIVETING TOOL Follow the prescriptions of the national laws for disposing of the riveting tool.

  • Page 10: Spare Parts

    KJ 45/S SPARE PARTS Tab. 1/5 Tab. 2/5 CODE Q.ty DESCRIPTION CODE Q.ty DESCRIPTION 713291 1 Head M 10 026Q 711722 1 Gasket B-094063/B/NEI 71C00281 1 Screw TCCE M10 x 70 UNI 5931 - 12,9 713402 1 Seeger ring JV 25...
  • Page 11 KJ 45/S SPARE PARTS Tab. 3/5 Tab. 4/5 CODE Q.ty DESCRIPTION CODE Q.ty DESCRIPTION 061A 710528 1 Gasket OR 008 71C00305 1 Ring nut 1/4" 062A 710572 1 Gasket OR 2-120 105AP 713192 5 Cage 063A 710385 2 Gasket OR 2-006...
