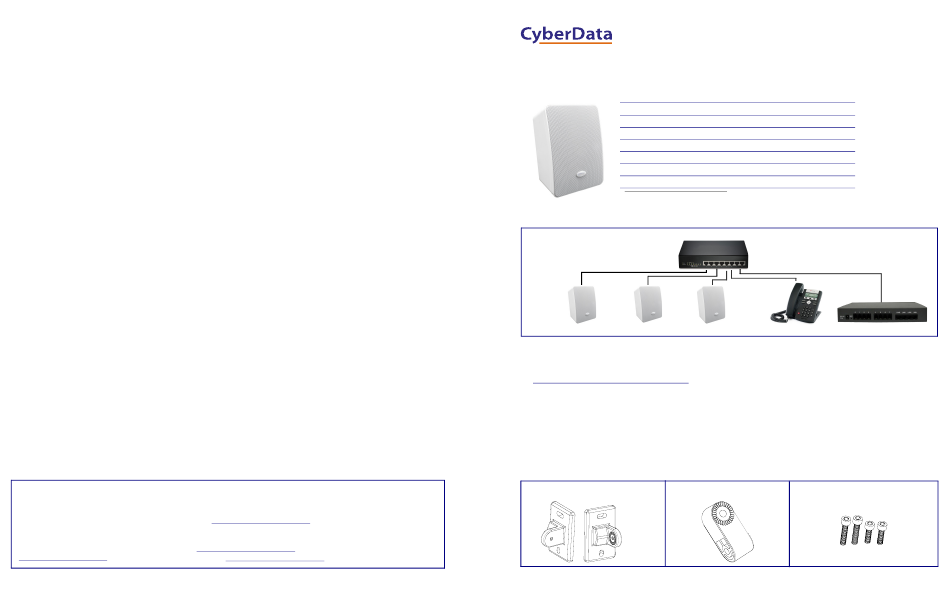

Typical System Installation
*More installation options are
illustrated in the Operations Guide.
Getting Started
• Download the Operations Guide PDF file, from the Downloads tab at the following webpage:
http://www.cyberdata.net/products/011487/
• Create a plan for the locations of your speakers.
• WARNING: This product should be installed by a licensed electrician according to all local electrical and building codes.
• WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
• WARNING: The PoE connector is intended for intra-building connections only and does not route to the outside plant.
• WARNING: This enclosure is not rated for any AC voltages!
Parts
(1) Base Mount (Two Pieces)
Quick Reference Quick Reference
Installation Quick Reference

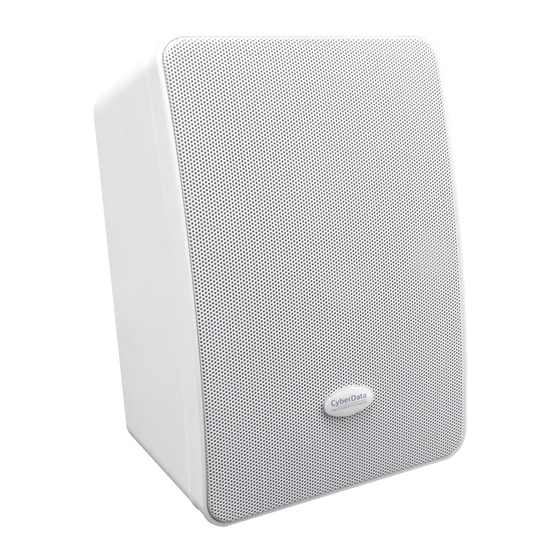

Multicast Wall Mount Speaker
SIP Compliant
011487
Parameter Factory Default Setting
IP Addressing DHCP
a
IP Address 10.10.10.10
Web Access Username admin
Web Access Password admin
a
Subnet Mask 255.0.0.0
a
Default Gateway 10.0.0.1
a. Default if there is not a DHCP server present.
802.3af/at Compliant Ethernet Switch
Speaker Speaker Speaker
(1) Universal Joint
931689A
IP Phone IP PBX Server
(4) Mounting Screws
(2) 20mm Long Screws
(2) 30mm Long Screws
Hex Driver Size: 3/16-inch/ 5mm
