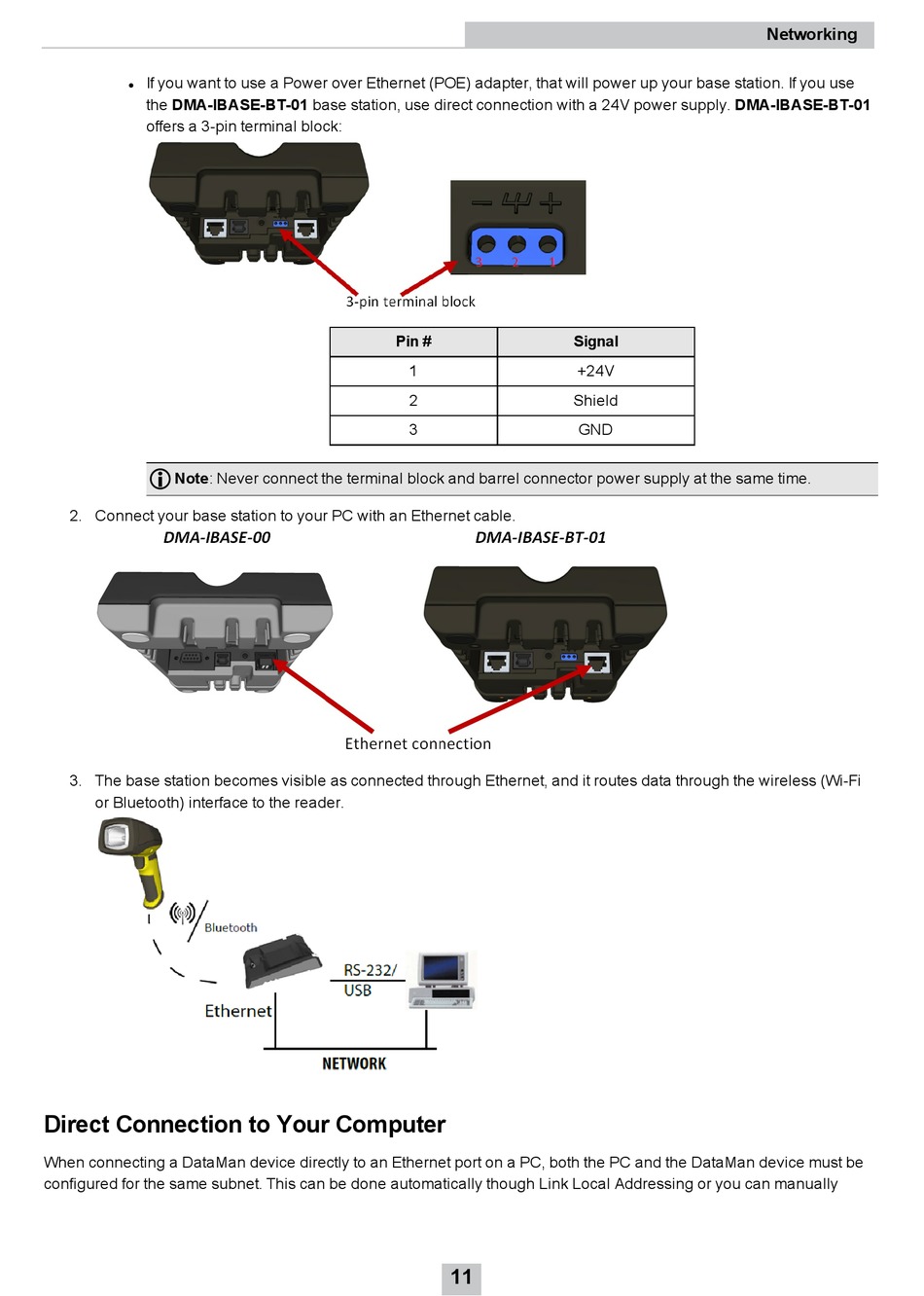

Direct Connection To Your Computer - Cognex DataMan Communications And Programming Manual

If you want to use a Power over Ethernet (POE) adapter, that will power up your base station. If you use
l
the DMA-IBASE-BT-01 base station, use direct connection with a 24V power supply. DMA-IBASE-BT-01
offers a 3-pin terminal block:
Note: Never connect the terminal block and barrel connector power supply at the same time.
2. Connect your base station to your PC with an Ethernet cable.
3. The base station becomes visible as connected through Ethernet, and it routes data through the wireless (Wi-Fi
or Bluetooth) interface to the reader.

Direct Connection to Your Computer

When connecting a DataMan device directly to an Ethernet port on a PC, both the PC and the DataMan device must be
configured for the same subnet. This can be done automatically though Link Local Addressing or you can manually
Pin #
1
2
3
11
Signal
+24V
Shield
GND
Networking
