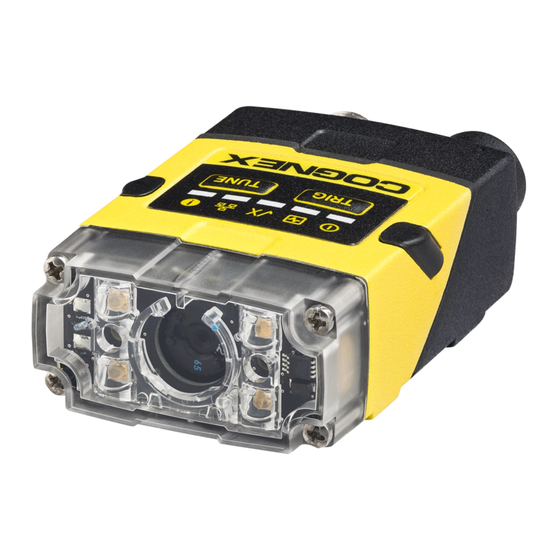

DataMan
150 Series
Quick Reference Guide
2019 November 15
Revision: 6.1.6SR2.2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DataMan DT150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cognex DataMan DT150

Summary of Contents for Cognex DataMan DT150

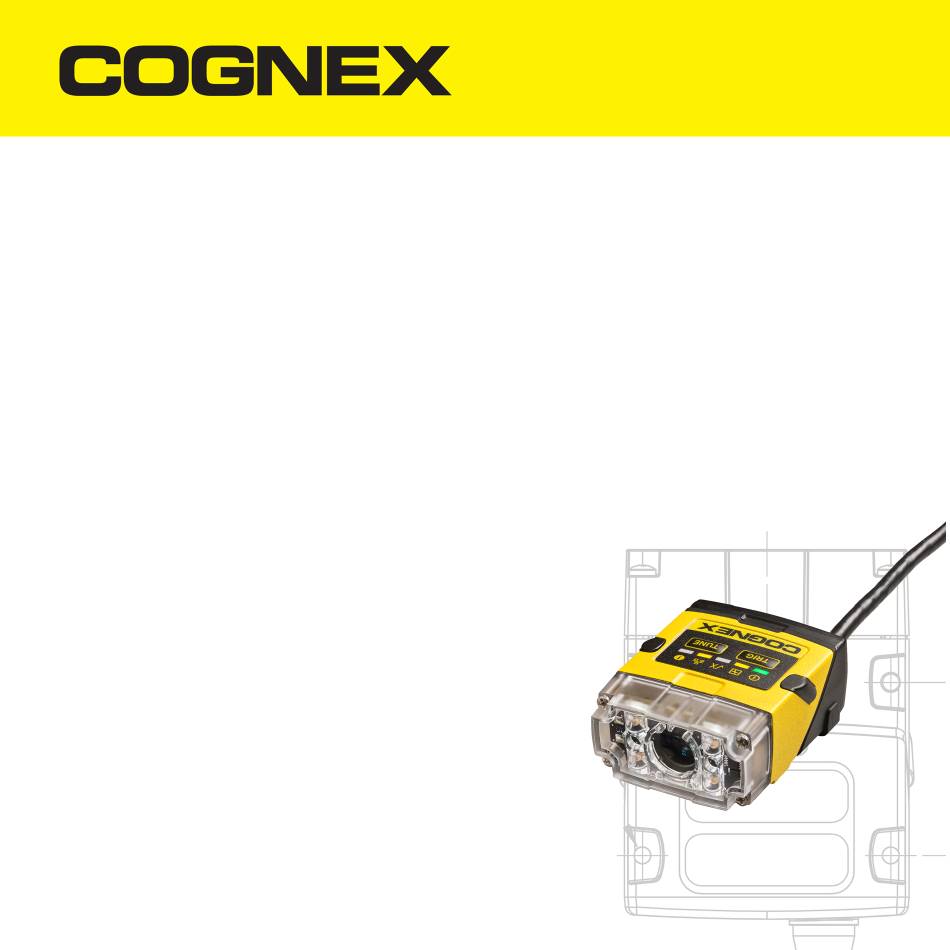

  • Page 1 ® DataMan 150 Series Quick Reference Guide 2019 November 15 Revision: 6.1.6SR2.2...

  • Page 2: Product Overview

    Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: This device requires the use of an LPS or NEC class 2 power supply. Do not connect or disconnect this device from the I/O module or 15-pin USB adapter cable when the I/O module or adapter cable is connected to a PC.

  • Page 3: Dataman 150 Accessories

    Illumination LEDs LED aimers 3-4* Mounting holes (M3 x 3.5mm) Trigger button Power indicator Train status indicator Good/bad read indicator Communication Error indicator Tune button Power, I/O and RS-232 connector Note: *Use only one set of mounting holes (either 3 OR 4) for mounting. Note: The five status LEDs together also function as a peak meter using an orange light.
  • Page 4 6.2 mm lens kit DM150-LENS-62 DMA-KIT-IR-62 IR 6.2 mm lens kit, 3 -position with IR LED DMA-KIT-IR-16 IR 16 mm lens kit 16 mm lens with extended optics mount (requires the DM260-LENS-16 use of an extended front cover and high-powered red LED) UV Light Kit for 6.2 mm lens (365nm) DMA-KIT-UV365-62...
  • Page 5 DM150-BP635 Red bandpass filter Red LED illumination* DM150-LED-RED White LED illumination* DM150-LED-WHT Blue LED illumination* DM150-LED-BLU High Powered red LED illumination** DM260-LED-RED-HP Note: *Use with a 6.2 mm lens only! **Use with a 16 mm lens only! ***ESD safe CABLES AND OTHER DM100-EXTCBL-000 5-meter extension cable* DM100-PATCH-000...

  • Page 6: Dimensional Drawings

    Note: *USB/RS-232 extension connection is possible with the following limitations: 1. The USB connection is shorter than 5 m. 2. Serial connection is shorter than 15 m. Dimensional Drawings...

  • Page 7: Field Of View And Reading Distances

    Field of View and Reading Distances Horizontal Field of View values DM150 Short Range: 34 DM150 Short Range: 50 DM150 Short Range: 77 DM150 Long Range: 115 mm [1.3 in] mm [1.9 in] mm [3.0 in] mm [4.5 in] DM152 Short Range: 37 DM152 Short Range: 56 DM152 Short Range: 87 DM152 Long Range: 123...
  • Page 8 Vertical Field of View values DM150 Short Range: 22 DM150 Short Range: 32 DM150 Short Range: 49 DM150 Long Range: 73 mm [0.86 in] mm [1.25 in] mm [1.9 in] mm [2.8 in] DM152 Short Range: 28 DM152 Short Range: 42 DM152 Short Range: 65 DM152 Long Range: 92 mm [1.1 in]...
  • Page 9 Distances in mm/ Distances in mm/ 2D min. code 1D min. code Device 6.2 mm lens 6.2 mm lens Short Range Short Range 4 MIL 2 MIL DM150 5 MIL 3 MIL 10 MIL 6 MIL 3 MIL 2 MIL DM152 4 MIL 2 MIL 7 MIL...
  • Page 10 Horizontal Field of View values DM70: 22 mm DM70: 43 mm DM70: 54 mm DM70: 64 mm DM70: 106 DM70: 142 DM70: 283 [0.87 in] [1.7 in] [2.1 in] [2.5 in] mm [4.1 in] mm [5.6 in] mm [11 in] DM72: 24 mm DM72: 45 mm DM72: 58 mm...

  • Page 11: Connecting The Reader

    Distances in mm/ Distances in mm/ Device 2D min. code 1D min. code 16 mm lens 16 mm lens 2 MIL 2 MIL 3 MIL 2 MIL 4 MIL 2 MIL DM152 4 MIL 3 MIL 7 MIL 4 MIL 10 MIL 6 MIL 1000 20 MIL...

  • Page 12: Installation

    Installation procedures and specifications are presented in detail in the DataMan 150 Reference Manual, which is installed with the DataMan Setup Tool. From the Windows Start menu, select the following to access the manual: All Programs > Cognex > DataMan Software vx.x.x > Documentation.

  • Page 13: Connect The Breakout Cable

    Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the reader. Do not force the connections or damage may occur.

  • Page 14: Install Software And Documentation And Connect The Reader

    To configure a DataMan 150 reader, the DataMan Setup Tool software must be installed on a networked PC. The DataMan Setup Tool is available from the DataMan support site: http://www.cognex.com/support/dataman. 1. After installing the software, connect the DataMan 150 Series reader to your PC.
  • Page 15 128 g Weight Operating 0ºC — +40ºC (+32ºF — +104ºF) Temperature Storage -10ºC — +60ºC (+14ºF — +140ºF) Temperature Maximum <95% (non-condensing) Humidity Environmental IP65 IEC 60068-2-27: 1000 shocks, semi-sinusoidal, 11g, 10ms Shock and IEC 60068-2-6: vibration test in each of the three main axis for 2 hours @ 10 Gs (10 to 500 Hz at Vibration 100m/s2 / 15mm) LED Safety...

  • Page 16: Dataman 150 Series Imager Specifications

    DataMan 150 Series Imager Specifications Specification DataMan 150 Imager DataMan 152 Imager Image Sensor 1/3 inch CMOS 1/3 inch CMOS Image Sensor 4.51 mm x 2.88 mm (W x H), 6.0 μm 4.8 mm x 3.6 mm (W x H), 3.75 μm square Properties square pixels pixels...
  • Page 17 Please read these guidelines carefully before using your device. Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support. Safety and Regulatory...
  • Page 18 2014/30/EU Electromagnetic Compatibility Directive. For further information please contact: Cognex Corporation, One Vision Drive Natick, MA 01760 USA. Cognex Corporation shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked.
  • Page 19 This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed. In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal.
  • Page 20 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根 据 中 国 大 陆 《 电 子 信 息 产 品 污 染 控 制 管 理 办 法 》 ( 也 称 为 中 国 大 陆 RoHS)， 以...
  • Page 21 Copyright © 2019 Cognex Corporation. All Rights Reserved.
