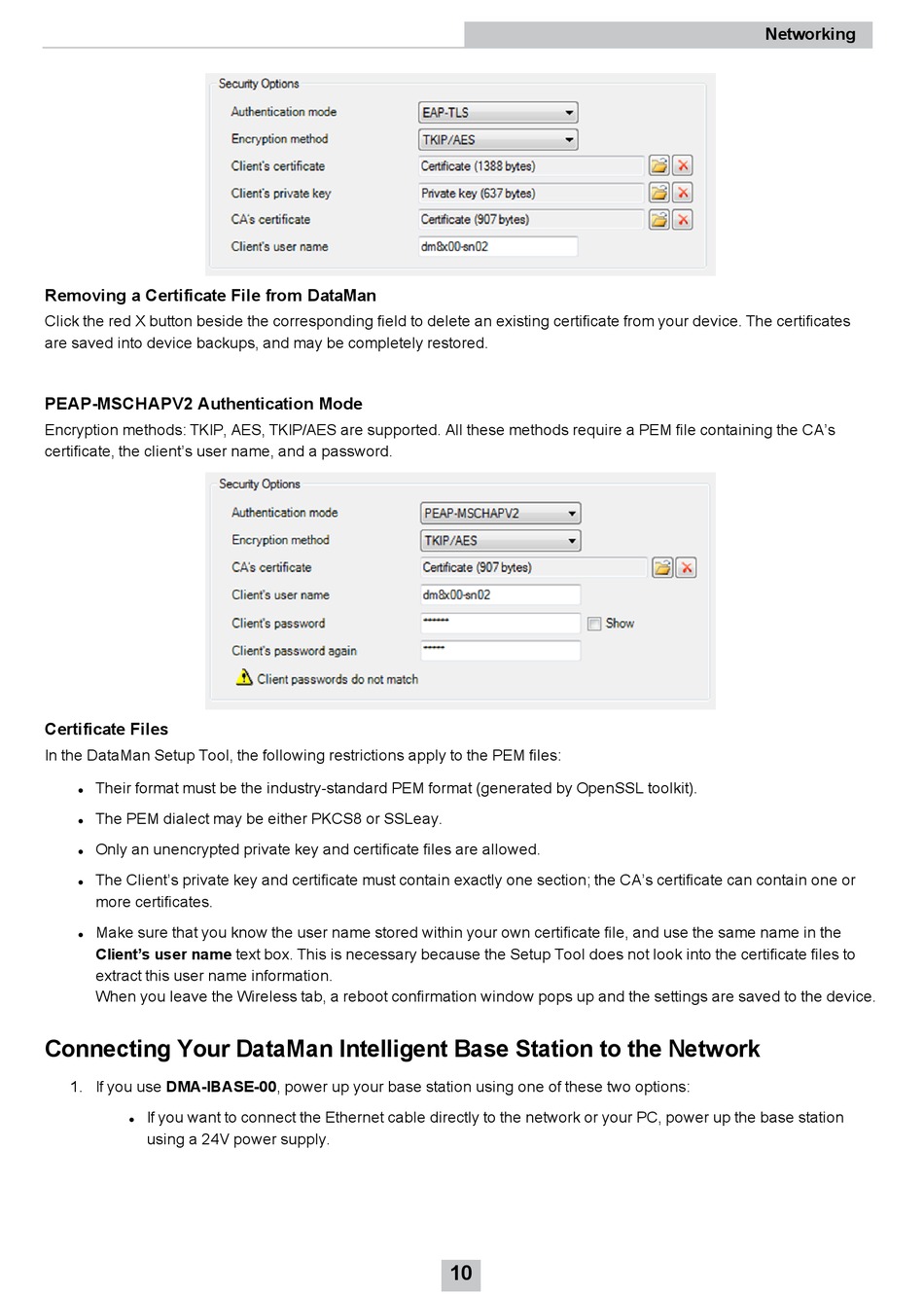

Removing a Certificate File from DataMan

Click the red X button beside the corresponding field to delete an existing certificate from your device. The certificates
are saved into device backups, and may be completely restored.

PEAP-MSCHAPV2 Authentication Mode

Encryption methods: TKIP, AES, TKIP/AES are supported. All these methods require a PEM file containing the CA's
certificate, the client's user name, and a password.

Certificate Files

In the DataMan Setup Tool, the following restrictions apply to the PEM files:
Their format must be the industry-standard PEM format (generated by OpenSSL toolkit).
l
The PEM dialect may be either PKCS8 or SSLeay.
l
Only an unencrypted private key and certificate files are allowed.
l
The Client's private key and certificate must contain exactly one section; the CA's certificate can contain one or
l
more certificates.
Make sure that you know the user name stored within your own certificate file, and use the same name in the
l
Client's user name text box. This is necessary because the Setup Tool does not look into the certificate files to
extract this user name information.
When you leave the Wireless tab, a reboot confirmation window pops up and the settings are saved to the device.

Connecting Your DataMan Intelligent Base Station to the Network

1. If you use DMA-IBASE-00, power up your base station using one of these two options:
If you want to connect the Ethernet cable directly to the network or your PC, power up the base station
l
using a 24V power supply.
10
Networking
