  • Page 1 ® DataMan 260 Series Quick Reference Guide 2021 May 26 Revision: 6.1.10-SR1.4...
  • Page 2 Precautions To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product: This device requires the use of an LPS or NEC class 2 power supply (non- PoE device) or the use of a PoE Class 1 (PoE device).
  • Page 3 This product does not contain user-serviceable parts. Do not make electrical or mechanical modifications to product components. Unauthorized modifications can void your warranty.
  • Page 4 Symbols The following symbols indicate safety precautions and supplemental information: WARNING: This symbol indicates a hazard that could cause death, serious personal injury or electrical shock. CAUTION: This symbol indicates a hazard that could result in property damage. Note: This symbol indicates additional information about a subject. Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

  • Page 5: Product Overview

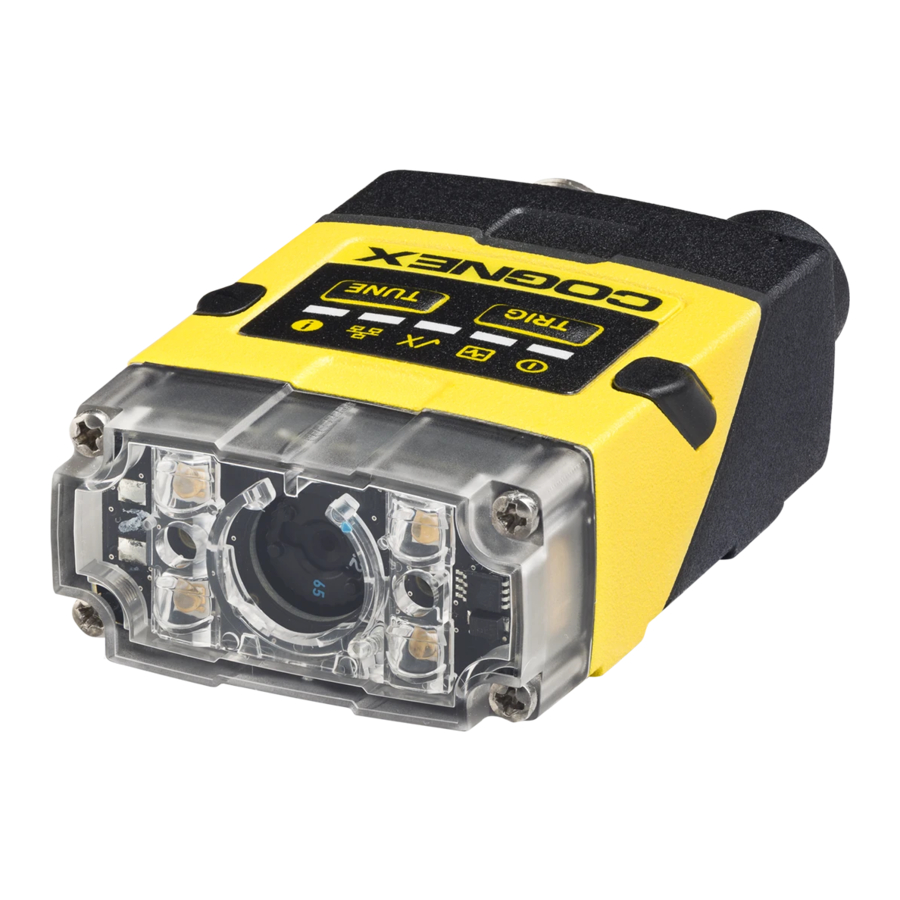

    Product Overview Item Description Illumination LEDs LED aimers 3-4* Mounting holes (M3 x 3.5mm) Trigger button Power indicator Train status indicator Good/bad read indicator Network status indicator Error indicator Tune button...

  • Page 6: Dataman 260 Accessories

    Power, I/O and RS-232 connector Ethernet connector Note: *Use only one set of mounting holes (either 3 OR 4) for mounting. Note: The five status LEDs together also function as a peak meter using an orange light. DataMan 260 Accessories LENS OPTIONS, COVERS, ILLUMINATIONS AND FILTERS Accessory Name Accessory Number...
  • Page 7 DM260-KIT-16LL ImageMax kit Clear lens cover* DM150-CVR-CLR Clear lens cover, ESD safe* DM150-CVR-ESD Polarized front cover* DM260-LENS-62CVR- F*** Extended lens cover, un-polarized** DM260-LENS-16CVR*** Extended lens cover, half-polarized ** DM260-LENS-16CVR- Extended lens cover, fully polarized** P*** DM260-LENS-16CVR- F*** C-mount adaptor, IP40 DM260-CMNT-00 C-mount adaptor, IP65 DM260-CMNT-CVR DM150-BP470...
  • Page 8 Accessory Name Accessory Number Accessory Image CCBL-05-01 Connection cable 24V, I/O, RS-232 CCB-M12x12Fy-xx (y=S: straight / y=A: angled *, xx specifies length) CCB-M12xDB9Y-05 Connection cable RS-232 Adapter cable, M12x12 to M8x4/M8x5, 0.5 m DM260-ADAP-M12M8 CCB-84901-2001-xx, X-Coded to RJ45 Ethernet Cable where xx can be 02, 05, 10, 15 or 30, indicating length in meters...

  • Page 9: Dimensional Drawings

    Dimensional Drawings The size of the DataMan 260 in the angled configuration is shown in the following figures:...
  • Page 11 The size of the DataMan 260 with the extended lens cover configuration is shown in the following figures:...
  • Page 13 The size of the DataMan 260 with the side read mirror configuration is shown in the following figure:...

  • Page 14: Field Of View And Reading Distances

    Field of View and Reading Distances Horizontal Field of View values Device DM260 Short Range: 34 mm [1.3 Short Range: 50 mm Short Range: 77 mm [3.0 Long Range: 115 mm [4.5 [1.9 in] DM262 Short Range: 37 mm Short Range: 56 mm Short Range: 87 mm [3.4 Long Range: 123 mm [4.8 [1.45 in]...
  • Page 15 DM260 Long Range: 144 mm Long Range: 170 mm Long Range: 279 mm Long Range: 370 mm [5.6 in] [6.7 in] [10.9 in] [14.5 in] DM262 Long Range: 153 mm Long Range: 181 mm Long Range: 297 mm Long Range: 394 mm [6.0 in] [7.1 in] [11.7 in]...
  • Page 16 DM260 Short Range: 22 mm Short Range: 32 mm Short Range: 49 mm Long Range: 73 mm [2.8 [0.86 in] [1.25 in] [1.9 in] DM262 Short Range: 28 mm [1.1 Short Range: 42 mm Short Range: 65 mm Long Range: 92 mm [3.6 [1.65 in] [2.5 in] DM260...
  • Page 17 Reading Distance for 1D and 2D Codes with 6.2 mm Lens Distances in mm/ Distances in mm/ 2D min. code 1D min. code Device 6.2 mm lens 6.2 mm lens Long Range Long Range 12 MIL 6 MIL 15 MIL 10 MIL 18 MIL 10 MIL DM260...
  • Page 18 Distances in mm/ Distances in mm/ 2D min. code 1D min. code Device 6.2 mm lens 6.2 mm lens Short Range Short Range 4 MIL 2 MIL DM260 5 MIL 3 MIL 10 MIL 6 MIL 3 MIL 2 MIL DM262 4 MIL 2 MIL 7 MIL...
  • Page 19 Reading Distance for 1D and 2D Codes with 16 mm Lens Distances in mm/ Distances in mm/ Device 2D min. code 1D min. code 16 mm lens 16 mm lens 3 MIL 2 MIL 5 MIL 3 MIL 6 MIL 4 MIL DM260 7 MIL 4 MIL...
  • Page 20 DataMan 260 Readers with Side Read Mirror The following table shows the Field of View (FoV) widths of DM260 with 6.2 mm lens focused to 190 mm at various distances.
  • Page 21 Device 1D min. code Distance in mm Width in mm DM260 10 MIL 13 MIL 15 MIL 18 MIL 20 MIL...
  • Page 22 The following table shows the Field of View (FoV) widths of DM262 with 6.2 mm lens focused to 190 mm at various distances. Device 1D min. code Distance in mm Width in mm DM262 10 MIL 13 MIL 15 MIL 18 MIL 20 MIL...

  • Page 23: Connecting The Reader

    Connecting the Reader Perform the following steps: 1. Mount the reader. 2. Connect the Ethernet cable (CCB-84901-2001-05) either to a computer or a switch. 3. Connect the breakout cable (CCBL-05-01). For information on the pinout and wire colors, see section Connections, Optics and Lighting in the DataMan 260 Reference Manual.

  • Page 24: Installation

    Cognex > DataMan Software vx.x.x > Documentation. Note: Cables are sold separately. If a standard component is missing or damaged, immediately contact your Cognex Authorized Service Provider (ASP) or Cognex Technical Support. CAUTION: All cable connectors are keyed to fit the connectors on the reader.

  • Page 25: Connect The Ethernet Cable

    Connect the Ethernet Cable 1. Connect the Ethernet cable's M12 connector to the reader ENET connector. 2. Connect the Ethernet cable’s RJ-45 connector to a switch/router or PC, as applicable. Connect the Breakout Cable Note: You can clip unused wires short or use a tie made of non-conductive material to tie them back.

  • Page 26: Install Software And Documentation And Connect The Reader

    PC. The DataMan Setup Tool is available from the DataMan support site: http://www.cognex.com/support/dataman. 1. After installing the software, connect the DataMan 260 Series reader to your PC. 2. Launch the DataMan Setup Tool and click Refresh.

  • Page 27: Dataman 260 Specifications

    DataMan 260 Specifications Specification DataMan 260 Series Reader Weight 142 g Operating 0ºC — +40ºC (+32ºF — +104ºF) Temperature Storage -10ºC — +60ºC (+14ºF — +140ºF) Temperature Maximum <95% (non-condensing) Humidity Environmental IP65 IEC 60068-2-27: 1000 shocks, semi-sinusoidal, 11g, 10ms...

  • Page 28: Dataman 260 Series Imager Specifications

    Supplied by LPS or NEC class 2 only <3.84 W (PoE Class 1) Power <5 W (average, externally powered at +24 V) Consumption DataMan 260 Series Imager Specifications Specification DataMan 260 Imager DataMan 262 Imager Image Sensor 1/3 inch CMOS...
  • Page 29 Specification DataMan 260 Imager DataMan 262 Imager S-mount 6.2 mm F:5 (with optional liquid lens) with IR blocking filter Lens Type S-mount 16 mm F:7 (with optional liquid lens) with IR blocking filter LED Wavelengths The following table shows LED types and the related wavelengths: λ...
  • Page 30 Please read these guidelines carefully before using your device. Note: For the most current CE declaration and regulatory conformity information, see the Cognex support site: cognex.com/support. Safety and Regulatory...
  • Page 31 2014/30/EU Electromagnetic Compatibility Directive. For further information please contact: Cognex Corporation, One Vision Drive Natick, MA 01760 USA. Cognex Corporation shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked.

  • Page 32: For European Community Users

    For European Community Users Cognex complies with Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 4 July 2012 on waste electrical and electronic equipment (WEEE). This product has required the extraction and use of natural resources for its production.
  • Page 33 中 国 大 陆 RoHS (Information for China RoHS Compliance) 根 据 中 国 大 陆 《 电 子 信 息 产 品 污 染 控 制 管 理 办 法 》 ( 也 称 为 中 国 大 陆 RoHS)， 以...
  • Page 34 Copyright © 2021 Cognex Corporation. All Rights Reserved.
