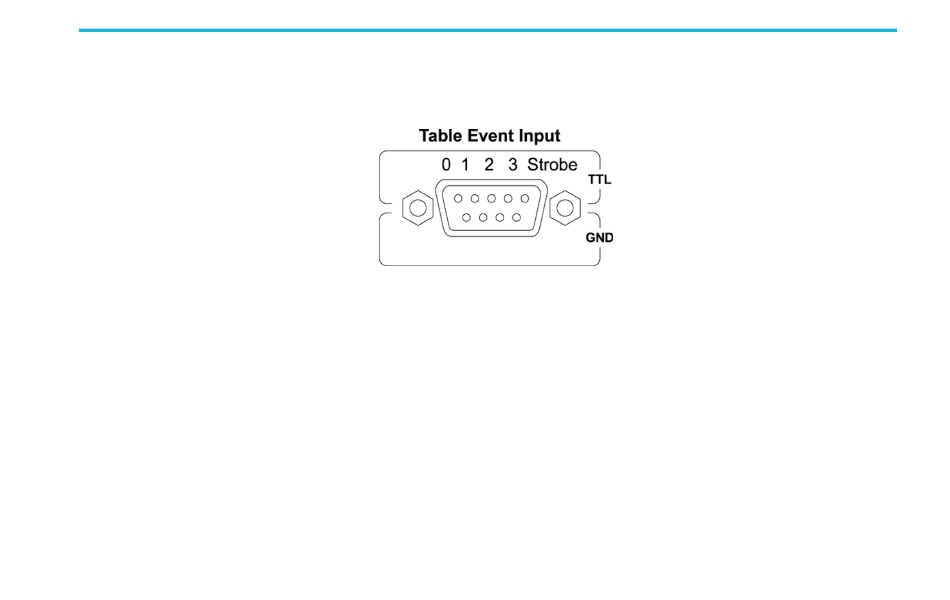

Table Event Input Connector
Connect an event signal to the Table Event Input connector.
The Table Event Input connector
accepts TTL-level signals from 0.0 V
to 5.0 V (DC + Peak AC). The
connector is a standard 9-pin D type.
By connecting the connector adapter
to your AWG5012B, the instrument
can accept four bit Table Jump signals.
The Table Jump can define up to 16
possible logic levels of the Event Input
lines.
TTL Event to TekLink LVDS Connector Adapter User Manual
Pin NO. Signal Direction
1 STROBE INPUT
2 EVENT Bit3 INPUT
3 EVENT Bit2 INPUT
4 EVENT Bit1 INPUT
5 EVENT Bit0 INPUT
6 GND
7 GND
8 GND
9 GND
Installation
