Tektronix KEITHLEY CS-712 Instructions

Keithley Instruments

28775 Aurora Road

Cleveland, Ohio 44139

1-800-935-5595

tek.com/keithley

Description

The model CS-712 is a three-slot male triaxial to female BNC adapter.

Voltage:

600 V

center conductor to inner shield



PEAK

1300 V

center conductor and inner shield to outer shell



PEAK

Maximum current is 1 A



Material:

Body: Brass with nontarnish finish and teflon insulation



Contacts: Hardened beryllium copper



Operating environment: 0° C to 50° C up to 70% relative humidity ≤ 35° C

077155400 / May 2019

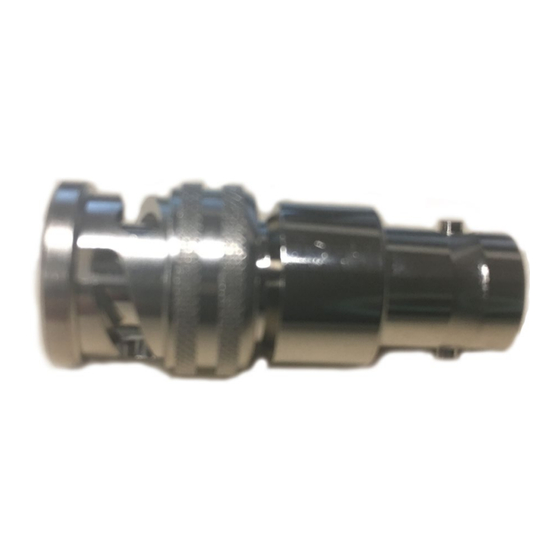

Figure 1: CS-712 adapter

*077155400*

Model CS-712

Triaxial to BNC Adapter

Table of Contents

Do you have a question about the KEITHLEY CS-712 and is the answer not in the manual?

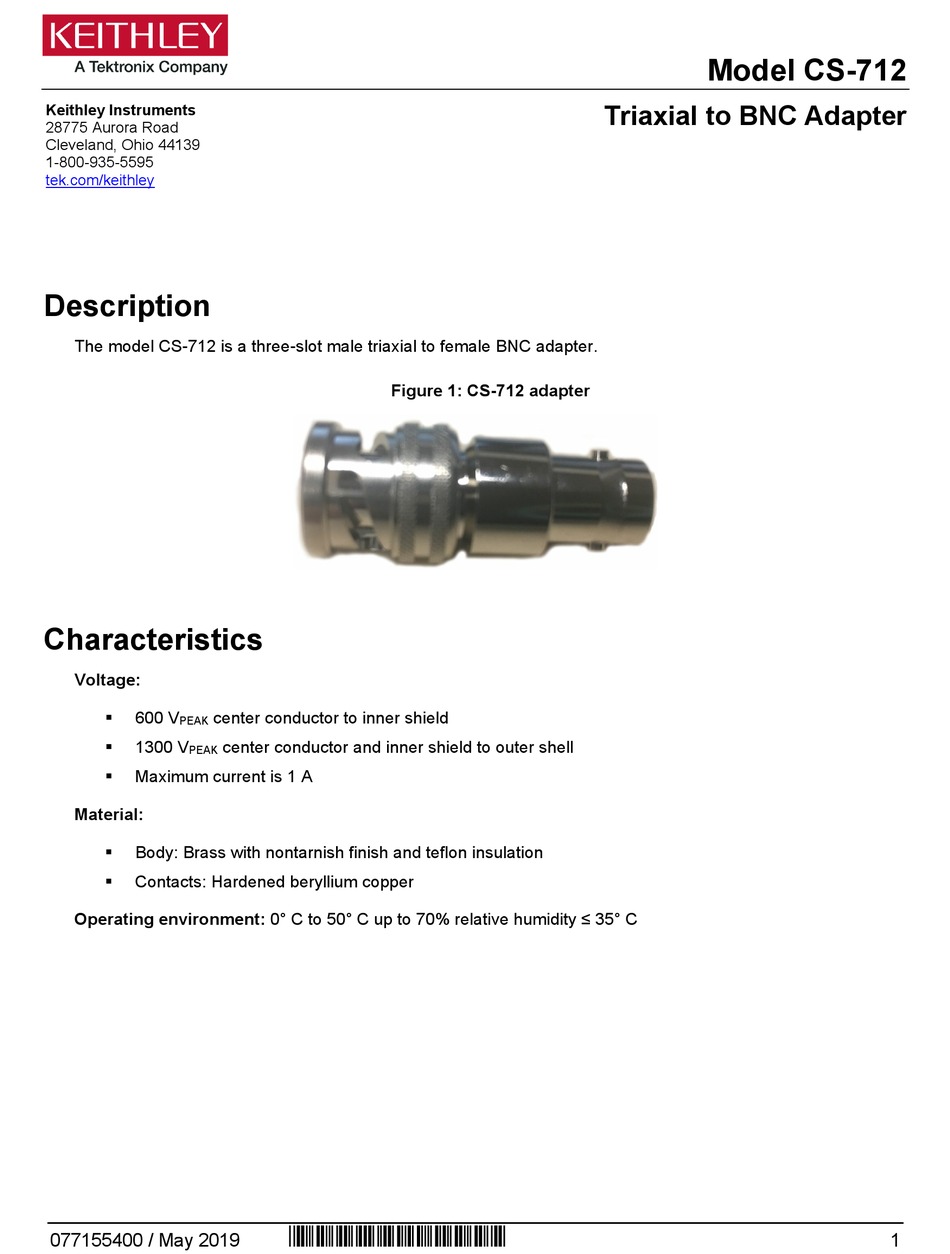

Page 1 Model CS-712 Triaxial to BNC Adapter Keithley Instruments 28775 Aurora Road Cleveland, Ohio 44139 1-800-935-5595 tek.com/keithley Description The model CS-712 is a three-slot male triaxial to female BNC adapter. Figure 1: CS-712 adapter Characteristics Voltage: 600 V center conductor to inner shield ...
Page 2 Model CS-712 Triaxial to BNC Adapter Dimensions and shielding Figure 2: CS-712 adapter measurements 077155400 / May 2019...
Page 3 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
Page 4 For safety, instruments and accessories must be used in accordance with the operating instructions. If the instruments or accessories are used in a manner not specified in the operating instructions, the protection provided by the equipment may be impaired. Do not exceed the maximum signal levels of the instruments and accessories. Maximum signal levels are defined in the specifications and operating information and shown on the instrument panels, test fixture panels, and switching cards.
