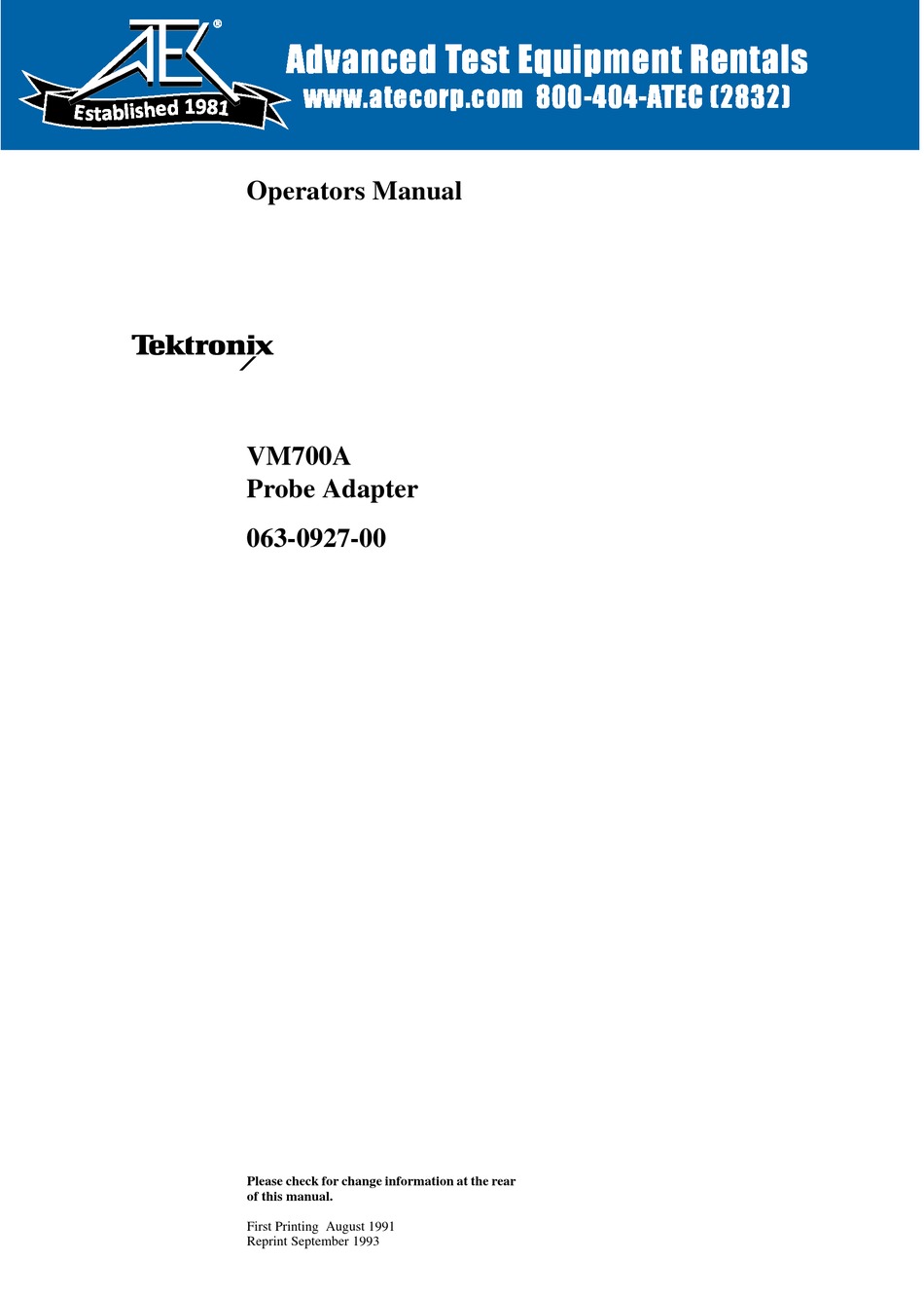

Operators Manual
VM700A
Probe Adapter
063-0927-00
Please check for change information at the rear
of this manual.
First Printing August 1991
Reprint September 1993

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VM700A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tektronix VM700A

Summary of Contents for Tektronix VM700A

  • Page 1 ® Advanced Test Equipment Rentals www.atecorp.com 800-404-ATEC (2832) Operators Manual VM700A Probe Adapter 063-0927-00 Please check for change information at the rear of this manual. First Printing August 1991 Reprint September 1993...
  • Page 2 1991 Tektronix, Inc. All rights reserved. Printed in the United States of America. Contents of this publication may not be repro- duced in any form without the written permission of Tektronix, Inc. Speci- fication and price change privileges are reserved.
  • Page 3 (1) year from the date of shipment. If any such product proves defective during this warranty period, Tektronix, at its option, either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product.

  • Page 5: Probe Adapter

    (067–1429–00 to 067–1429–05) PURPOSE The Tektronix Probe Adapter accessory is designed to interface a Tektronix P6109 10X probe to the VM700A Video Measurement Set. This accessory is intended for use in manufacturing and repair applications when internal signals of an device under test are accessible only using a high-impedance probe.
  • Page 6 The output of the probe adapter is at 75Ω to match the input of the VM700A. Use high quality 75Ω BNC coaxial cable to connect to the VM700A input, and terminate the signal line with a 75Ω termination at the last device in the signal path as shown in Figure 2.

  • Page 7: Specifications

    From 10X probe tip, into 75Ω Frequency Response 10 Hz to 100 kHz 100 kHz to 10 MHz Differential Gain 0.3% Measured with 1910 or VM700A Differential Phase Measured with 1910 or VM700A Output Offset Voltage 50 mV 10 mV at 25 C...

  • Page 8: Electrical Parts List

    Operating Information Probe Adapter ELECTRICAL PARTS LIST Table 2 Electrical Parts Lists Circuit Reference Quantity Description Part Number C1,C2,C3,C4 Capacitor, 0.1µF 281-0775-01 C5,C6 Capacitor, 470µF 290-0919-00 C7,C8 Capacitor, 0.47µF 281-0563-00 C9,C10 Capacitor, 10µF 290-0804-01 C11,C17 Not installed Capacitor, 4-40pF 281-0187-00 Capacitor, 0.1µF 285-0526-00 Capacitor, 4700pF...

  • Page 9: International Power Cords

    Probe Adapter Operating Information INTERNATIONAL POWER CORDS Power cords are provided to match a variety of mains connections throughout the world. See Table 3 for plug configurations, typical use, and Probe Adapter part number to order. A separate part number has been provided to permit the customer to order the Probe Adapter with the power cord needed for their application.
  • Page 10 PROBE ADAPTER VM700A PROBE ADAPTER...
