Keithley Instruments, Inc.
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
http://www.keithley.com
Description
The Model 2450-TRX-BAN cable connects three male triaxial connectors to five female safety banana jacks
(4 mm safety jacks).
The item shipped may vary from model pictured here.
To maintain the maximum insulation resistance, keep the cable connectors free of contaminants such as dirt and
oil. If they become contaminated, clean thoroughly with methanol and allow to dry completely before use.
071314500 / June 2013

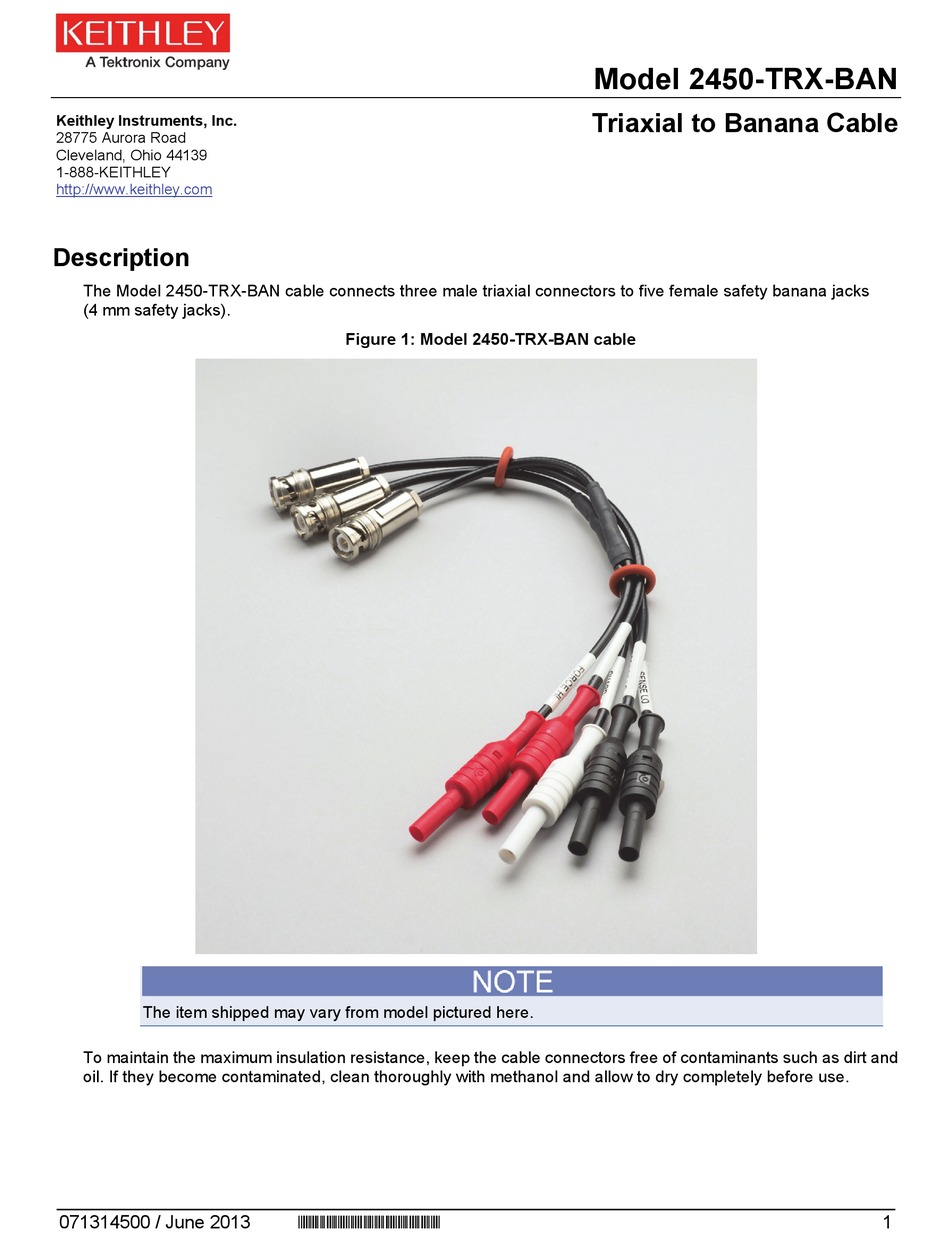

Figure 1: Model 2450-TRX-BAN cable
*P071314500*
Model 2450-TRX-BAN
Triaxial to Banana Cable
1
Advertisement
Table of Contents
Related Manuals for Tektronix KEITHLEY 2450-TRX-BAN
Summary of Contents for Tektronix KEITHLEY 2450-TRX-BAN
- Page 1 Model 2450-TRX-BAN Triaxial to Banana Cable Keithley Instruments, Inc. 28775 Aurora Road Cleveland, Ohio 44139 1-888-KEITHLEY http://www.keithley.com Description The Model 2450-TRX-BAN cable connects three male triaxial connectors to five female safety banana jacks (4 mm safety jacks). Figure 1: Model 2450-TRX-BAN cable The item shipped may vary from model pictured here.
- Page 2 Model 2450-TRX-BAN Characteristics Length: 12 in. (30.5 cm) Voltage rating: 1000 VDC (working voltage up to 1000 VDC) Safety standard: Conforms to the European Union Low Voltage Directive Installation category: CAT I Maximum current: 1 A Operating environment: 32 °F to 122 °F (0 °C to 50 °C), up to 70 percent relative humidity at 95 °F (35 °C) Altitude: Maximum 2000 meters (6562 feet) above sea level Pollution degree: 1 or 2 Hazardous voltages may be present on any connector in this cable assembly.
- Page 3 Model 2450-TRX-BAN Connection instructions The rear terminals of the Model 2450 are rated for connection to circuits rated Measurement Category I only, with transients rated less than 1500 V peak above the maximum rated input. Do not connect the instrument terminals to CAT II, CAT III, or CAT IV circuits. Connection of the instrument terminals to circuits higher than CAT I can cause damage to the equipment and expose the operator to hazardous voltage.
- Page 4 Model 2450-TRX-BAN Figure 3: Model 2450-TRX-BAN cable connection 071314500 / June 2013...
- Page 5 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 6 Do not exceed the maximum signal levels of the instruments and accessories, as defined in the specifications and operating information, and as shown on the instrument or test fixture panels, or switching card. When fuses are used in a product, replace with the same type and rating for continued protection against fire hazard. Chassis connections must only be used as shield connections for measuring circuits, NOT as protective earth (safety ground) connections.
