Keithley Instruments
28775 Aurora Road
Cleveland, Ohio 44139
1-800-833-9200
tek.com/keithley
Description
The Model 237-TRX-T is a 3-slot male triaxial to dual 3-lug female tee adapter. You can use the 237-TRX-T
adapter to connect multiple inputs to SMUs and electrometers. It also allows connection of external feedback
elements to electrometers.
To maintain maximum insulation resistance, keep the connectors free of contaminants (such as dirt
or oil). If the connections become contaminated, clean them thoroughly with methanol. Allow them to
dry completely before use.
PA-305 Rev. C April 2021
Three-Slot Triaxial Tee Adapter Information

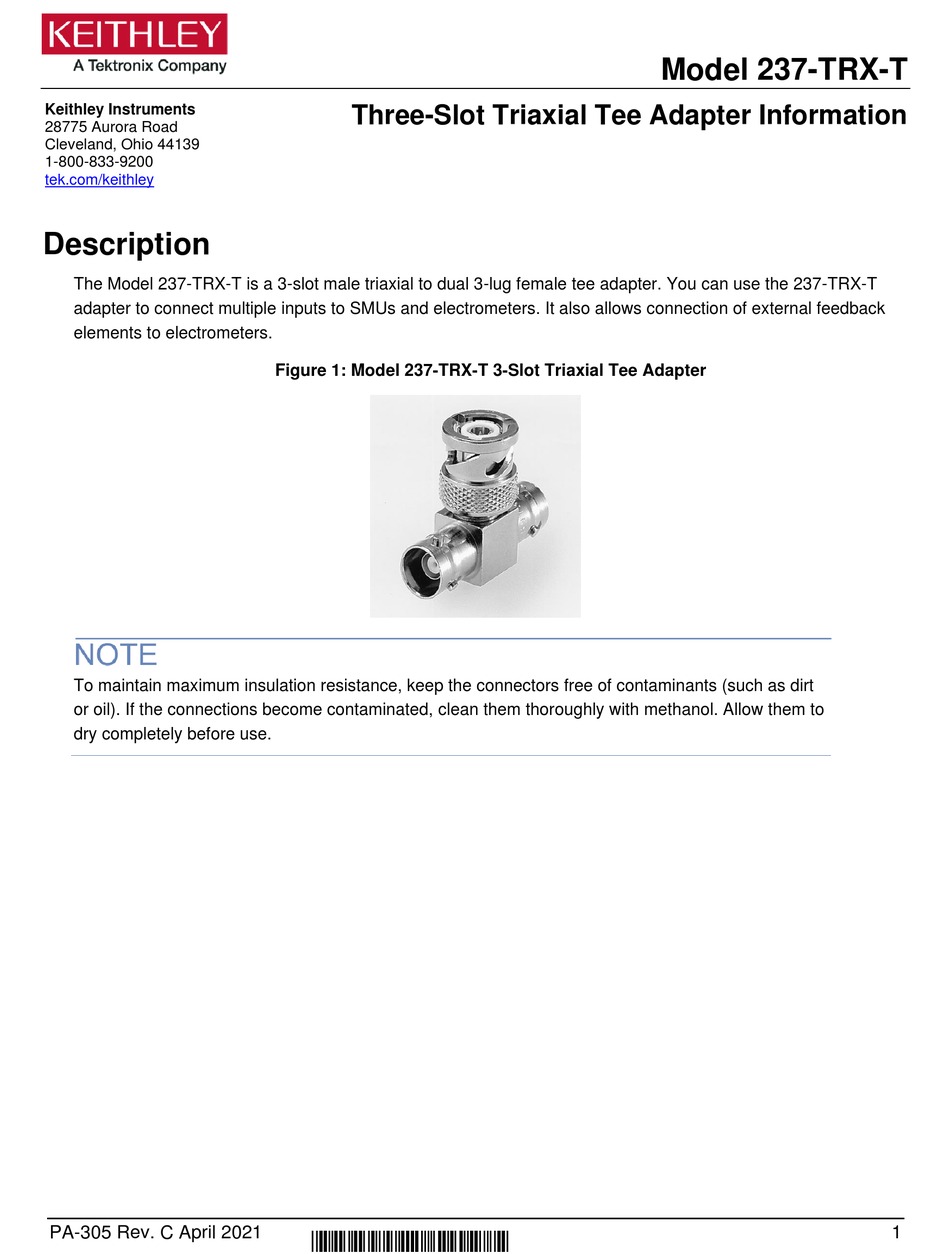

Figure 1: Model 237-TRX-T 3-Slot Triaxial Tee Adapter
*PPA-305C*
Model 237-TRX-T
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tektronix Keithley 237-TRX-T
Summary of Contents for Tektronix Keithley 237-TRX-T
- Page 1 Model 237-TRX-T Keithley Instruments Three-Slot Triaxial Tee Adapter Information 28775 Aurora Road Cleveland, Ohio 44139 1-800-833-9200 tek.com/keithley Description The Model 237-TRX-T is a 3-slot male triaxial to dual 3-lug female tee adapter. You can use the 237-TRX-T adapter to connect multiple inputs to SMUs and electrometers. It also allows connection of external feedback elements to electrometers.
- Page 2 Model 237-TRX-T Three-Slot Triaxial Tee Adapter Information Characteristics The schematic of the 237-TRX-T is shown in the following figure. Figure 2: 237-TRX-T schematic 600 V center conductor to inner shield Working voltage PEAK 1300 V center conductor and inner shield to outer shell PEAK Maximum working current PEAK...
- Page 3 Safety precautions The following safety precautions should be observed before using this product and any associated instrumentation. Although some instruments and accessories would normally be used with nonhazardous voltages, there are situations where hazardous conditions may be present. This product is intended for use by personnel who recognize shock hazards and are familiar with the safety precautions required to avoid possible injury.
- Page 4 The CAUTION heading in the user documentation explains hazards that could damage the instrument. Such damage may invalidate the warranty. The CAUTION heading with the symbol in the user documentation explains hazards that could result in moderate or minor injury or damage the instrument. Always read the associated information very carefully before performing the indicated procedure.
