INSTALLATION CLEARANCES
These vent hoods are designed to be installed onto a
wall or beneath a soffit or cabinet.
Installation with Warming Shelf
type cooking surface when warming shelf is used.
Installation without Warming Shelf
the cooking surface when installed over any
professional style cooktop or range.
or electric drop-in style cooktop.
NOTE: Clearances may vary due to type of cooking
product and local codes. Check with local inspectors
to be sure standard is applicable.

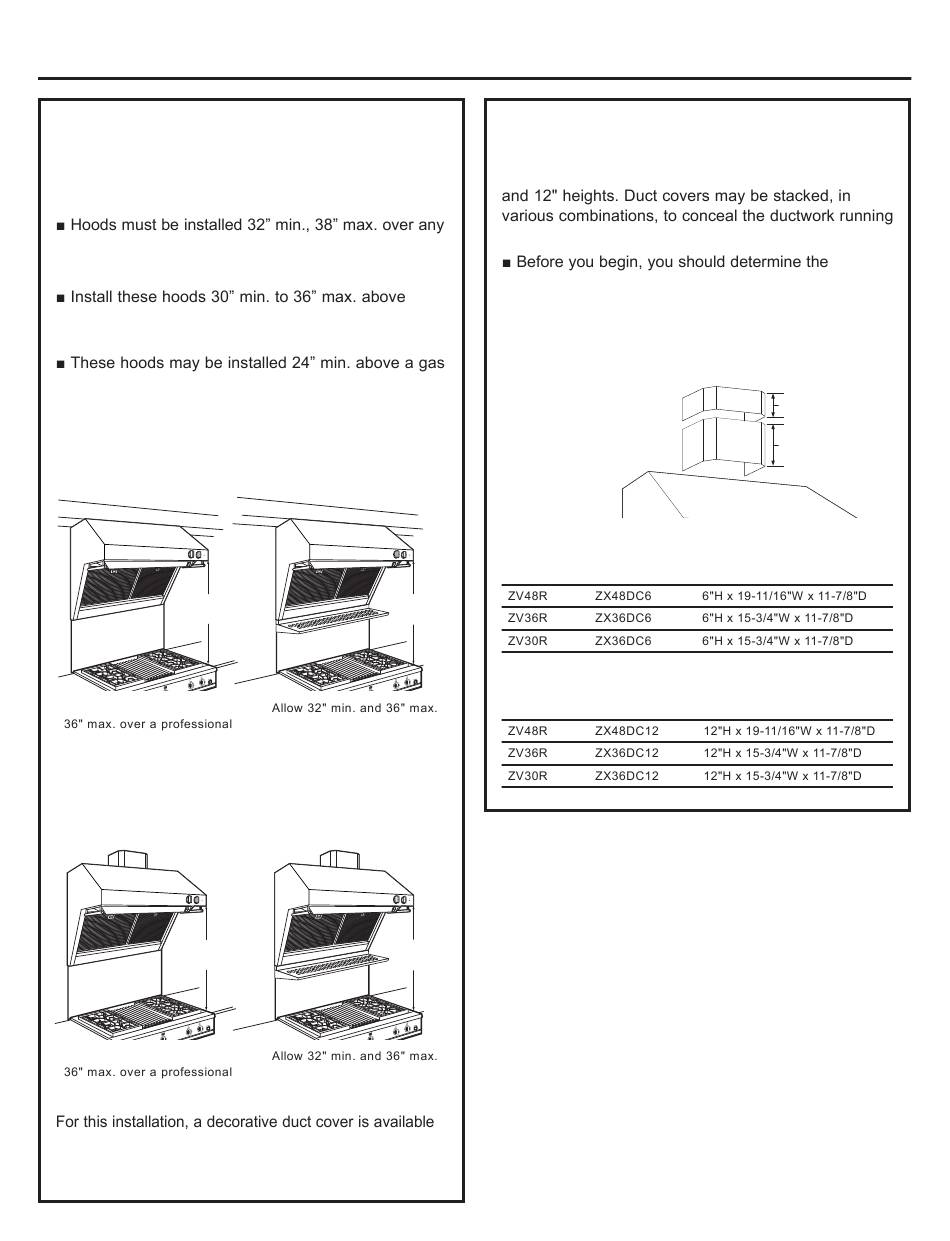

Soffit Installation
S O F F IT
30" Min.
36" Max.
Install these hoods 30" min. to
style cooktop or range.
In this installation the ductwork running from the top
of the hood will be concealed in the soffit or upper
cabinetry.
Wall Mount Installation
30" Min.
36" Max.
Install these hoods 30" min. to
style cooktop or range.
to conceal the ductwork running from the top of the hood.
Use of the duct cover requires special consideration to
the installation height above the countertop.
6
Advance Planning
S O F F IT
32" Min.
38" Max.
clearance above any cooking
surface when installed with shelf.
32" Min.
38" Max.
clearance above any cooking
surface when installed with shelf.
OPTIONAL DUCT COVER
ACCESSORIES
Standard decorative duct covers are available in 6"
from the top of the hood to the ceiling.
installation height of the hood and order the
correct size duct cover. The duct covers should
be ordered at the same time as the vent hood and
be on site before installation. Order the duct cover
corresponding to your model.
Standard Duct Covers
6" Duct Covers
Hood Model 6" Duct Cover
12" Duct Covers
Hood Model 12" Duct Cover
6" Duct Cover
12" Duct Cover
Dimensions
Dimensions
