© Panduit Corp. 2017
WMPV45EPB1
(2) End Panels
(4).375-16 Acorn nuts
(4).375 -16 Bolts
Assembly:
Step 1:
Insert bolt into mounting
location one.
Step2:
Place End Panel over the
bolt and hand tighten nut.
Step 3:
Insert bolt into location two
a secure with acorn nut.
Tighten acorn nut in loca-
tion one.
Step 4:
Repeat steps 1-3 for upper
End Panel
FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp
N
WMPV45EPB1, NREPB1
Part Numbers:
INSTRUCTIONS CM406D

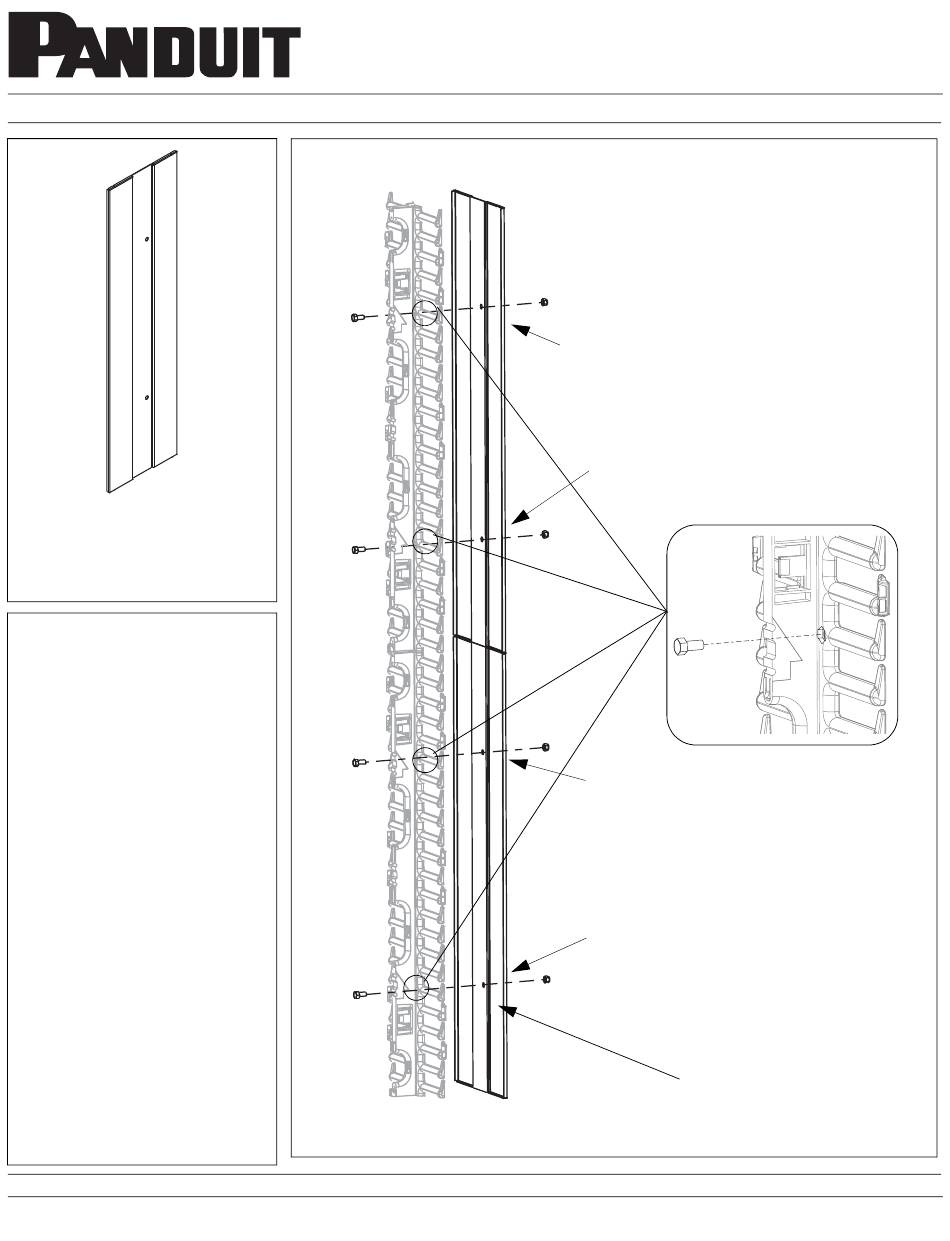

WMPV45EPB1 Installation Instructions
Geometry modified for clarification: Not
all molded fingers are shown
Page 1 of 2
End Panels
ETRUNNER
Note: Install lower end panel first when
using a stacked configuration.
Mounting Location 1
Mounting Location 2
Mounting Location 1
Mounting Location 2
Mounting Locations
End Panel
WMPV45EPB1 (Shown)
