Panduit Net-SERV Instructions

Server cabinet casters

NOTE: Casters can support a fully loaded cabinet. However, the casters should only be used to move the cabinet from one location

to another. To ensure maximum stability, the leveling legs should be used to support the cabinet when it is in the permanent location.

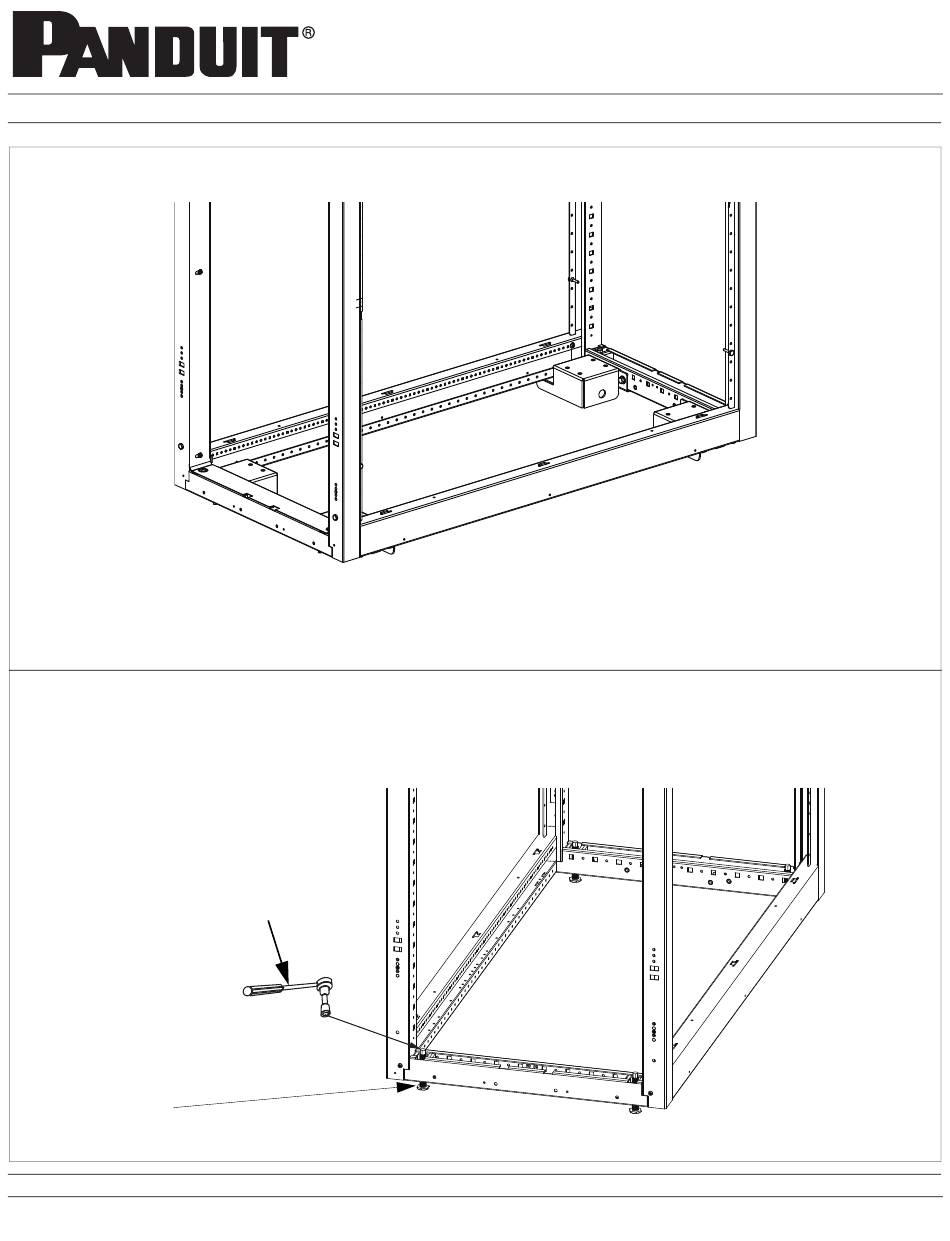

Replace Leveling Legs

Remove (4) standard leveling legs from Net-SERV cabinet frame with a 3/8" (10mm) deep well socket. Leveling legs are to be removed from

underneath cabinet frame. Install (4) 2.75" leveling legs underneath cabinet frame. Use a 3/8" (10mm) deep well socket to adjust height of lev-

eling legs. Adjusting the 2.75" leveling legs to the fully extended position allows for casters to be installed with cabinet resting on floor.

Leveling Legs

(Replace standard

leveling legs with

2.75" leveling legs;

[4] places)

FOR TECHNICAL SUPPORT www.panduit.com/resources/install_maintain.asp

INSTRUCTIONS CM413A

3/8" socket

-S

Server Cabinet Casters

ERV

(SCSTR)

Page 1 of 2

Table of Contents

Do you have a question about the Net-SERV and is the answer not in the manual?

Page 1 Replace Leveling Legs Remove (4) standard leveling legs from Net-SERV cabinet frame with a 3/8” (10mm) deep well socket. Leveling legs are to be removed from underneath cabinet frame. Install (4) 2.75” leveling legs underneath cabinet frame. Use a 3/8” (10mm) deep well socket to adjust height of lev- eling legs.
Page 2 Secure caster assembly with (2) 5/16” Bolts per assembly Swivel casters at (use 1/2” socket) rear of cabinet Fixed casters at front of cabinet For Instructions in Local Languages E-mail: and Technical Support: cs@panduit.com Fax: www.panduit.com/resources/install_maintain.asp (708)444-6448 www.panduit.com Page 2 of 2...
