KROHNE OPTISONIC 8300 Quick Start Manual

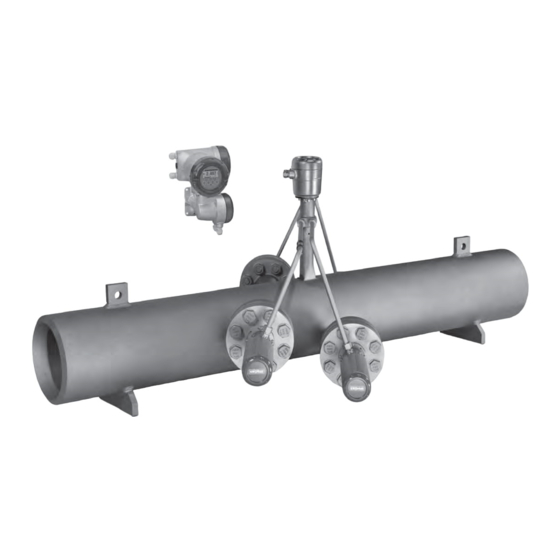

Ultrasonic flowmeter for high-temperature gas and superheated steam
Hide thumbs Also See for OPTISONIC 8300:
Table of Contents

Advertisement

Quick Links

Download this manual
OPTISONIC 8300
OPTISONIC 8300
OPTISONIC 8300
OPTISONIC 8300
Ultrasonic flowmeter
for high-temperature gas and superheated steam
ER 1.1.7_
© KROHNE 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en
Quick Start
Quick Start
Quick Start
Quick Start

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OPTISONIC 8300 and is the answer not in the manual?

Questions and answers

Related Manuals for KROHNE OPTISONIC 8300

Summary of Contents for KROHNE OPTISONIC 8300

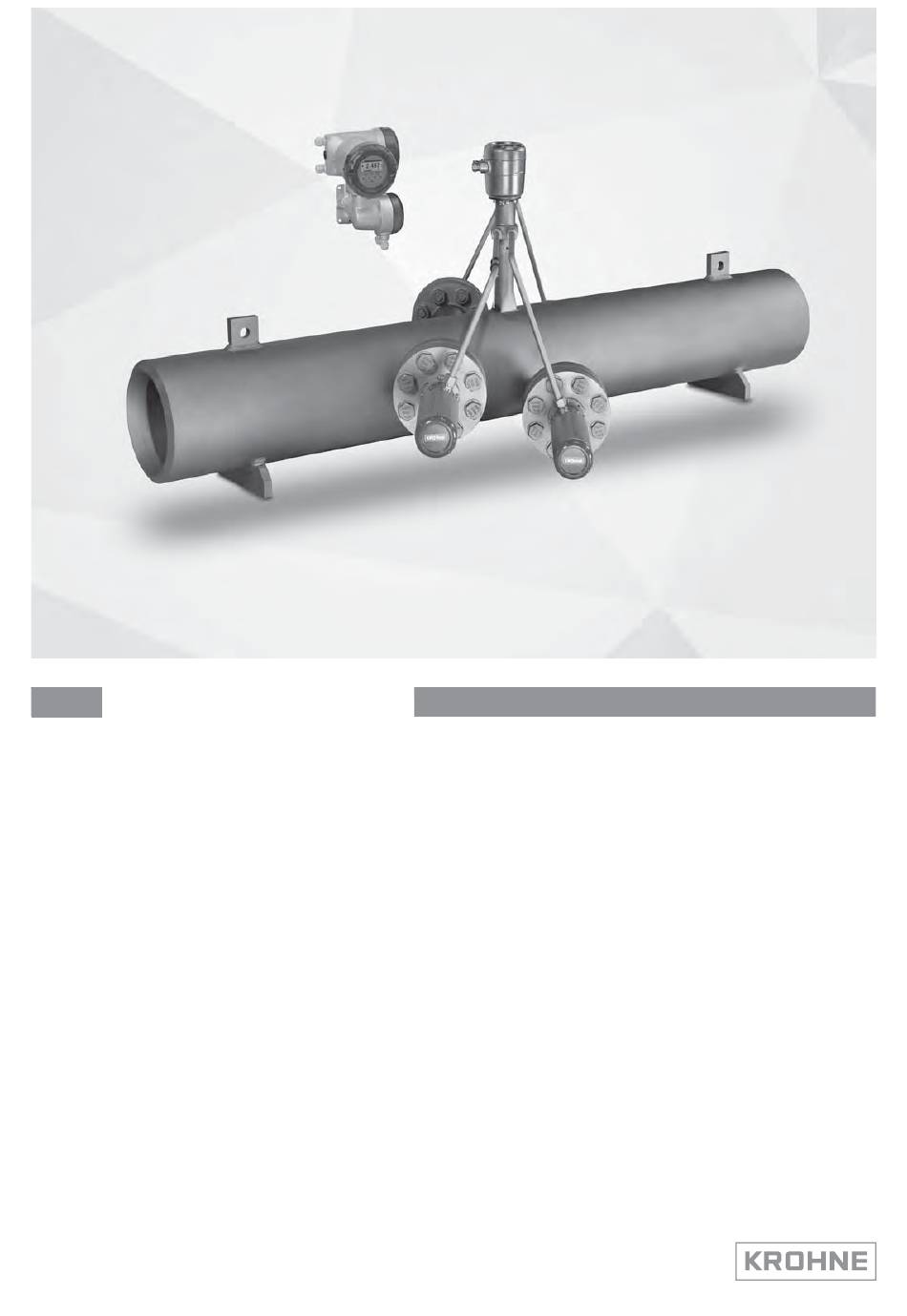

  • Page 1 OPTISONIC 8300 OPTISONIC 8300 OPTISONIC 8300 OPTISONIC 8300 Quick Start Quick Start Quick Start Quick Start Ultrasonic flowmeter for high-temperature gas and superheated steam ER 1.1.7_ © KROHNE 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 2: Table Of Contents

    4.3 Mounting plate of field housing..................25 5 Start-up 5.1 Switching on the power ....................26 5.2 Starting the signal converter ..................26 5.3 Menu overview ........................ 27 6 Notes www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 3: Safety Instructions

    If you need to return the device to the manufacturer or supplier, please fill out the form • contained in the manual and send it with the device. Unfortunately, the manufacturer cannot repair or inspect the device without the completed form. 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 4: Installation

    4 Signal cable (DN100 / 4": 1 cable; DN150 / 6": 2 cables) INFORMATION! Assembly materials and tools are not part of the delivery. Use the assembly materials and tools in compliance with the applicable occupational health and safety directives. www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 5: Device Description

    Product specific information and extensive product specification is available using PICK, the Product Information Center KROHNE web-tool. PICK can be found via the service menu button on the KROHNE.com website. The following version is available: • Remote version (electrical connection to the measuring sensor via signal cable)

  • Page 6: Nameplates

    6 Info / web address and disposal logo 7 Type designation and manufacturer date of the flowmeter / CE sign with number(s) of notified body / bodies 8 Name and address of the manufacturer www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...
  • Page 7 Do not use the terminals A+ and A- at the same time. The system will be damaged by the direct voltage of 24 VDC and a 1 A peak current. 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 8: Storage

    To transport flange devices, use lifting lugs or lift the device with suitable hoisting belts. Wrap these around both process connections. Lift the device in the correct mounting position only. Figure 2-6: Transport www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 9: Pre-Installation Requirements

    Do not expose the signal converter to intense vibrations and mechanical shocks. 2.7.1 Vibration Figure 2-7: Prevent intense vibrations INFORMATION! In case of too many vibrations, please install supports on both sides of the flowmeter to minimize movement. 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 10: General Requirements Sensor

    2.9.1 Inlet and outlet Figure 2-8: Recommended inlet and outlet 1 ≥ 20 DN 2 ≥ 3 DN INFORMATION! Shorter inlet conditions (< 20 DN) are depending on the upstream pipe configuration. www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 11: T-Section

    OPTISONIC 8300 2.9.2 T-section Figure 2-9: Distance behind a T-section 20 DN 2.9.3 Flange deviation CAUTION! Max. permissible deviation of pipe flange faces: 0.5 mm / 0.02" Figure 2-10: Flange deviation 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 12: Mounting Position

    Figure 2-11: Horizontal or vertical installation • In case of the presence of liquid or steam applications Figure 2-12: Mounting position WARNING! Orientate connection box upwards and acoustic path(s) horizontally to avoid liquid in transducers. www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 13: Thermal Insulation

    2 Standard insulation 3 Insulation for Tprocess ≤ +250°C/+482°F 4 Sensor tube DANGER! For devices in a hazardous area, additional maximum temperature and insulation precautions apply. Please refer to the Ex documentation. 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 14: Mounting The Field Housing, Remote Version

    4 Screw the signal converter to the mounting plate with the nuts and washers. Figure 2-15: Mounting multiple devices next to each other a 600 mm / 23.6" b 250 mm / 9.8" www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 15: Turning The Display Of The Field Housing Version

    Each time a housing cover is opened, the thread should be cleaned and greased. Use only resin- free and acid-free grease. Ensure that the housing gasket is properly fitted, clean and undamaged. 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 16: Electrical Connections

    1 Signal converter 2 Open connection box 3 Tool for releasing connectors 4 Marking on cable 5 Insert cable (1 path flowmeter) or cables (2 path flowmeter) through cable glands www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...
  • Page 17 3 Grounding clamps 4 Cable with metal shielding bush Figure 3-3: Connect the cables in the connection box of the sensor INFORMATION! Connect the cable on connector with similar numeral marking 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 18: Power Supply Connection

    3 24 VAC/DC (AC: -15% / +10%; DC: -25% / +30%), 22 VA or 12 W DANGER! The device must be grounded in accordance with regulations in order to protect personnel against electric shocks. www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 19: Laying Electrical Cables Correctly

    2 Tighten the screw connection of the cable entry securely. 3 Never mount the housing with the cable entries facing upwards. 4 Seal cable entries that are not needed with a plug. 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 20: Inputs And Outputs, Overview

    • For hazardous areas, all of the input/output variants for the housing designs with a terminal compartment in the Ex d (pressure-resistant casing) or Ex e (increased safety) versions can be delivered. • For connection and operation of Ex devices, note the supplementary instructions. www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 21: Description Of The Cg Number

    Two active current inputs (for Ex i I/O) No additional module installed No further module possible Table 3-1: Description of abbreviations and CG identifier for possible optional modules on terminals A and B 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 22: Fixed, Non-Alterable Input/Output Versions

    2 4 0 passive NAMUR NAMUR ® + HART active passive 3 4 0 passive NAMUR NAMUR ® + HART passive passive 1 Function changed by reconnecting 2 Changeable www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 23: Alterable Input/Output Versions

    H _ _ max. 2 optional modules for term. A + B Common Sign. B Sign. A (D1) (D0) 1 Changeable 2 Not activated bus terminator 3 Activated bus terminator 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 24: Technical Data

    OPTISONIC 8300 4.1 Dimensions and weight The OPTISONIC 8300 is available as weld-in or flanged version. The design of the tube of the flowmeter will be based on the specifications of the connecting piping. Detailed information for the dimensions and weights cannot be specified as they will vary with each application. The information below should therefore be regarded as indicative.

  • Page 25: Converter Housing

    6.10 11.60 10.90 12.60 4.3 Mounting plate of field housing Figure 4-3: Dimensions for mounting plate of field housing [mm] [inch] Ø9 Ø0.4 Table 4-1: Dimensions in mm and inch 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...

  • Page 26: Start-Up

    It is possible to change between the two measured value windows, the trend display and the list with the status messages by pressing the keys and . www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 27: Menu Overview

    Press > 2.5 s A quick setup > A1 language > A2 tag A3 reset > A3.1 reset errors A3.2 counter 1 A3.3 counter 2 A3.4 counter 3 A4 GDC IR interface > 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...
  • Page 28 B2.16 current in B B2.17 operating hours B3 information > B3.1 C number B3.2 process input B3.3 SW.REV.MS B3.4 SW.REV.UIS B3.6 Electronic Revision ER > 1 Gas flow option 2 Steam flow option www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...
  • Page 29 C3.3 counter 3 C4 I/O HART > C4.1 PV is C4.2 SV is C4.3 TV is C4.4 4V is C4.5 HART units > 1 Steam flow option 2 Gas flow option 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...
  • Page 30 C5 device > C5.1 device info > C5.2 display C5.3 1. meas. page C5.4 2. meas. page C5.5 graphic page C5.6 special functions C5.7 units C5.8 HART C5.9 quick setup > www.krohne.com 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en...

  • Page 31: Notes

    NOTES OPTISONIC 8300 03/2020 - 4008065101 - QS OPTISONIC 8300 R01 en www.krohne.com...
  • Page 32 • Process Analysis • Services Head Office KROHNE Messtechnik GmbH Ludwig-Krohne-Str. 5 47058 Duisburg (Germany) Tel.: +49 203 301 0 Fax: +49 203 301 10389 info@krohne.com The current list of all KROHNE contacts and addresses can be found at: www.krohne.com...
