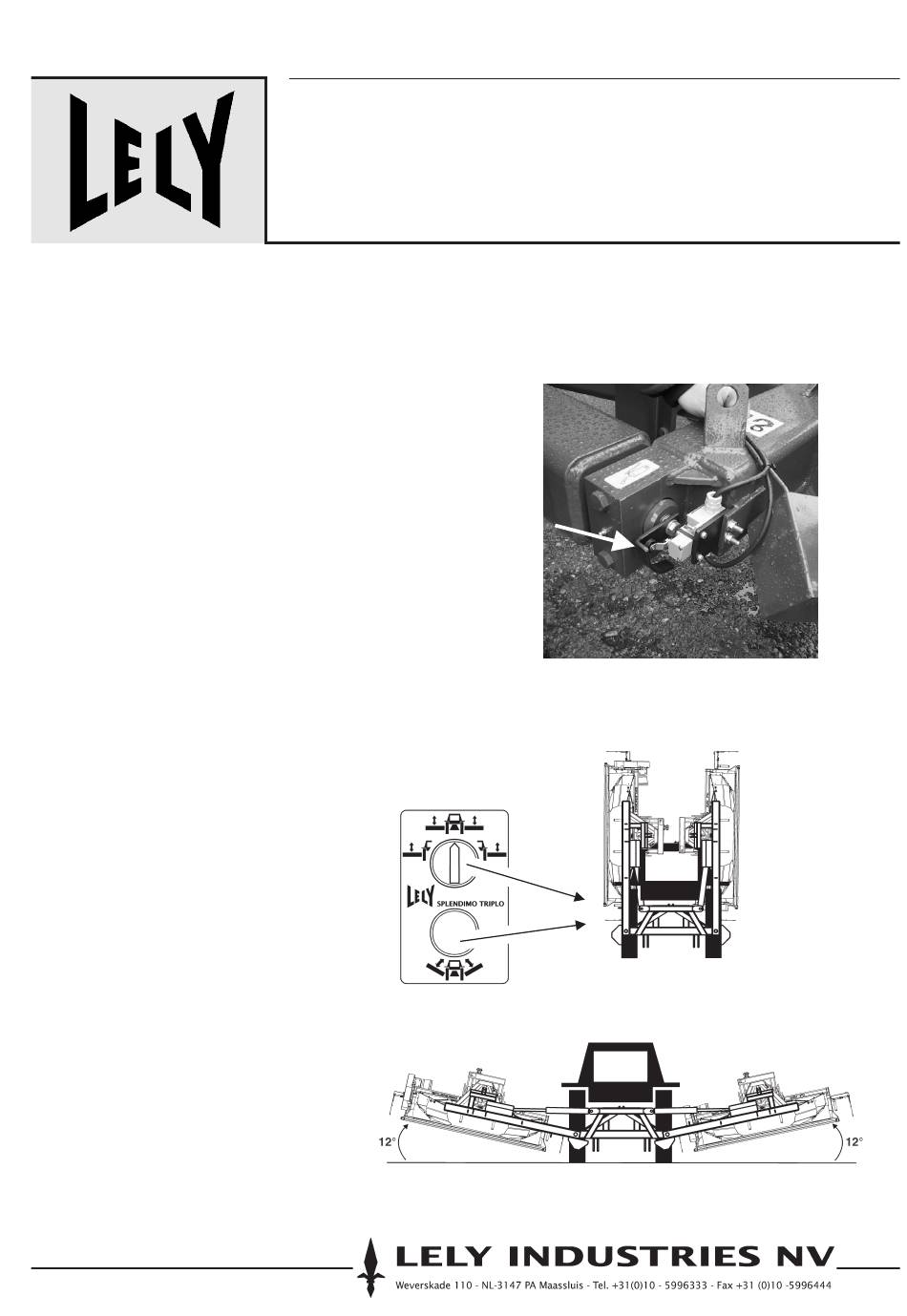

Transport Position - LELY SPLENDIMO TRIPLO 920 C Supplementary Instruction

SPLENDIMO TRIPLO 920 C
ADJUSTMENT OF 12° POSITION:
- Unscrew the fixation bolt a few turns in order to turn the cam
track (see arrow) to the left or right.
- Turn to the left > later engaging of switch = higher position of
arm.
- Turn to the right > earlier engaging of switch = lower position
of arm.

TRANSPORT POSITION:

- Place the upper switch in the central
position and press the lower button just
as long until the mowers are in the totally
upright position (180 °).
CONTROL OF LH MOWER:
- Place the upper switch in the LH
position.
CONTROL OF RH MOWER:
- Place the upper switch in the RH
position.
ExHV.013
.0502
S U P P L E M E N T A R Y I N S T R U C T I O N
TRANSPORT POSITION
HEAD LAND POSITION (12° POSITION)
