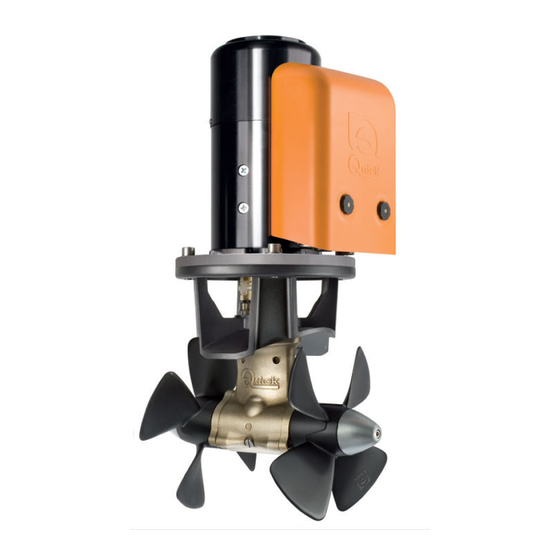

- Page 1 REV 006 High Quality Nautical Equipment BOW THRUSTER BTQ250 BTQ300 Manuale d'uso ELICHE DI MANOVRA DI PRUA User's Manual BOW THRUSTERS...
- Page 2 Pag. 20 INSTALLATION - Gearleg and motor support flange INSTALLATION - propeller fitting Pag. 21 Pag. 22 CONNECTION DIAGRAM Pag. 23 WARNING - USAGE MAINTENANCE Pag. 24/25 Pag. 26/27 SPARE PARTS BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C...
-
Page 3: Installation
• To limit losing charge, the optimal length is equal to 3-4 times the tube diameter; a ratio of up to 6 can be tolerated. BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C... - Page 4 The grating must have as large a vertical mesh as possible to avoid contrast- ing the propeller thrust. The vertical mesh prevents the entry of most of the floating objects. BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C...
- Page 5 Any resin residues and any other hindrance to correct contact must be removed by sandpaper. • Insert two o-rings into the special seats inside the flange. BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C...
- Page 6 • Grease the terminal part of the gearleg shaft; fit the small • Insert the motor onto the elastic joint; fasten it with the 4 key into its seat. screws and washers provided. BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C...
- Page 7 CONTROL PANEL To install the control panel, consult the “TCD 1022 - TCD 10422 - TCD 1044” instruction manuals. BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C...
-
Page 8: Connection Diagram
WARNING: IN CASE OF OVERTEMPERATURE, THE THERMAL PROTECTION ON THE MOTOR WILL OPEN AND INTERRUPT THE NEGATIVE CONTACT ON THE SOLENOID UNIT. WAIT AS LONG AS THE SYSTEM NEEDS TO REACTIVATE. BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C... - Page 9 It is strongly forbidden to bypass or modify such protections in order to increase the operating time span, lest voiding the warranty and thus lifting any responsibility from Quick SPA. WARNING: make sure no swimmers or floating objects are in the vicinity before switching on the thruster.
-
Page 10: Maintenance
MAINTENANCE BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C... - Page 11 Screw Grower Washer Screw Reversing contactor unit Carter spacer B Carter reversing contactor unit Fasteners carter reversing contactor unit BTQ thermal protection + cable Command wire BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C...
-
Page 12: Spare Parts
OSP REVERSING CONTACTOR UNIT KIT 350A 24V FVSGRCT35024A00 OSP ‘B’ CARTER FOR PROPELLER KIT FVSGCARTABTQB00 OSP HALF-JOINT BTQ 250 SPARE PART KIT FVSGG2501919A00 OSP HALF-JOINT BTQ 300 SPARE PART KIT FVSGG3001924A00 BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C... - Page 13 FVSGEL300L00A00 OSP NIBRAL D300 L PROPELLER KIT FVSGEL300LN0A00 OSP BTQ250 ANODES FOR PROPELLER KIT FVSGANBTQ250A00 OSP BTQ300 ANODES FOR PROPELLER KIT FVSGANBTQ300A00 OSP ANODES FOR PROPELLER KIT - NIBRAL BTQ300 FVSGANBTQ30NA00 BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C...
- Page 14 390 (15 11/32) 394 (15 3/64) 471 (18 1/2) 250 (9” 27/32) 250 (9” 27/32) 250 (9” 27/32) 250 (9” 27/32) 373 (14” 11/16) 373 (14” 11/16) 373 (14” 11/16) 373 (14” 11/16) BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C...
- Page 15 BTQ250 BTQ3025024 BTQ3027024 BTQ3030048 410 (16 9/64) 481 (18 15/16) 520 (20 15/32) 300 (11 11/16) 300 (11 11/16) 300 (11 11/16) 436 (17 11/64) 436 (17 11/64) 434 (17 3/32) BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C...
- Page 16 WARNING: IN CASE OF OVERTEMPERATURE, THE THERMAL PROTECTION ON THE MOTOR WILL OPEN AND INTERRUPT THE NEGATIVE CONTACT ON THE SOLENOID UNIT. WAIT AS LONG AS THE SYSTEM NEEDS TO REACTIVATE. BOW THRUSTER BTQ250 - BTQ300 IT EN - REV006C...
- Page 17 BOW THRUSTERS R006 250 /300 Codice e numero seriale del prodotto Product code and serial number QUICK S.p.A. - Via Piangipane, 120/A - 48124 Piangipane (RAVENNA) - ITALY ® Tel. +39.0544.415061 - Fax +39.0544.415047 www.quickitaly.com - E-mail: quick@quickitaly.com...
