Touch screen display
NOTICE
There is danger of material damage.
To be able to aspirate or dispense liquid on stage 1 of the tray, stage 2 must be pushed
into the leftmost position. This is necessary to allow unobstructed motion of the pipet
ting head
Serial Dilution
Abbruch
Options
3 x 50 µl
Load
Menu
®
CyBio SELMA
0.0 mm
H:
Transfer
volume
Speed
250.0 µl
120.0 µl/s
Dilution
steps
Save
5
Change
Optionen Optionen Start
Tips
2016
Explanation

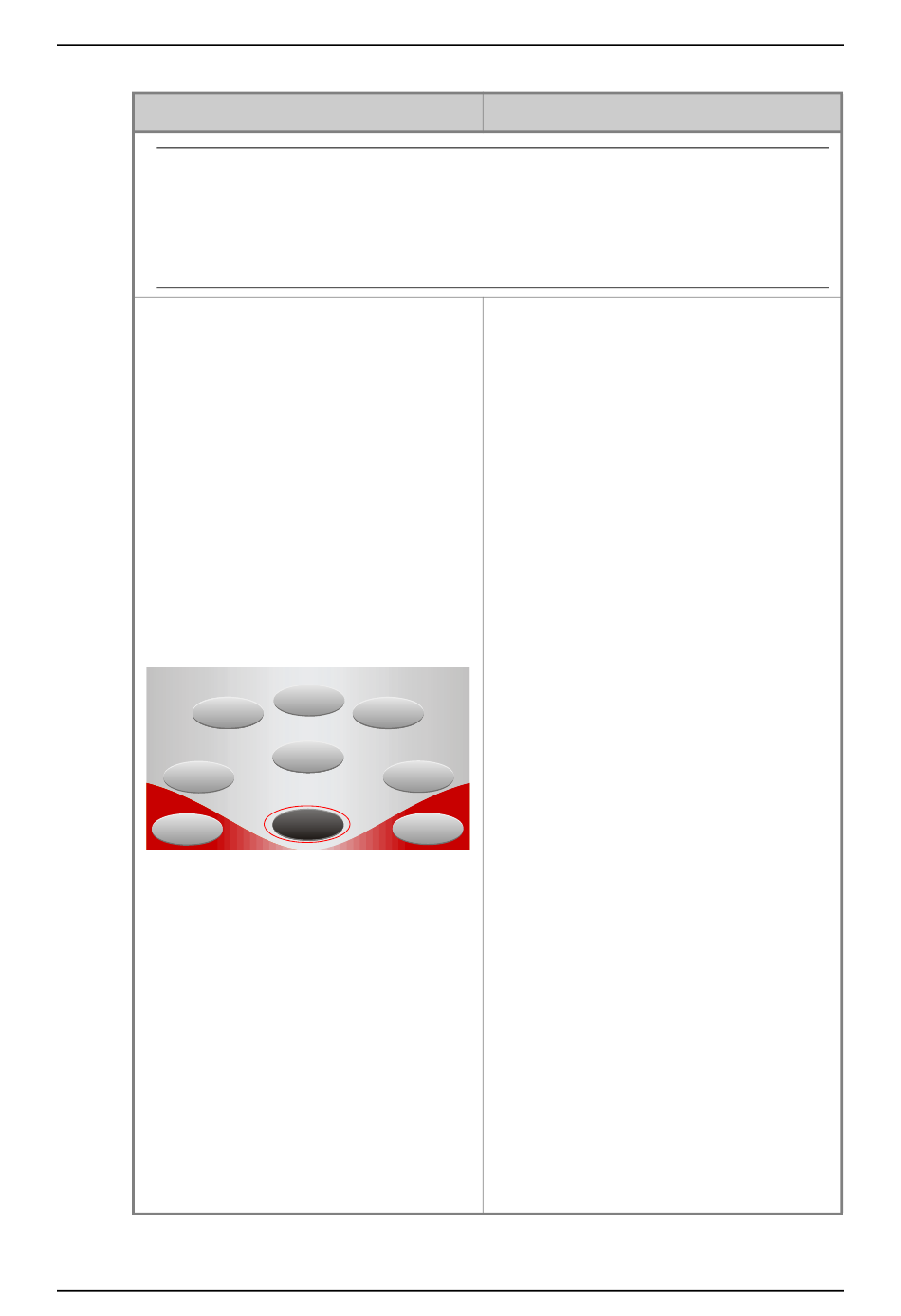

7. Select "Start" to trigger a pipetting
sequence. Follow instructions on the
touch screen.
a) Place source plate onto the tray
b) Bring column selected for aspi-
ration of liquid into position
under the pipetting tips if nec-
essary (use spring lever to shift
the table as appropriate)
c) Set height level of pipetting
head required for aspiration
d) Press button "Pipetting" at the
touch screen or push-button
"pip" on the left-hand side of
the support base
e) Move pipetting head up
f) Place target plate onto the tray
and bring column to be filled
into the correct position (use
spring lever to shift the tray as
necessary)
g) Set height level of pipetting
head required for dispensing
h) Press button "Pipetting" at the
touch screen or push-button
"pip" on the left-hand side of
the support base
i) Move pipetting head up
j) Repeat steps "f" to "i" as many
times as required to execute all
defined dilution steps
k) Place residual volume reservoir
onto the tray
l) Press button "Pipetting" at the
touch screen or push-button
"pip" on the left-hand side of
the support base
Operation
