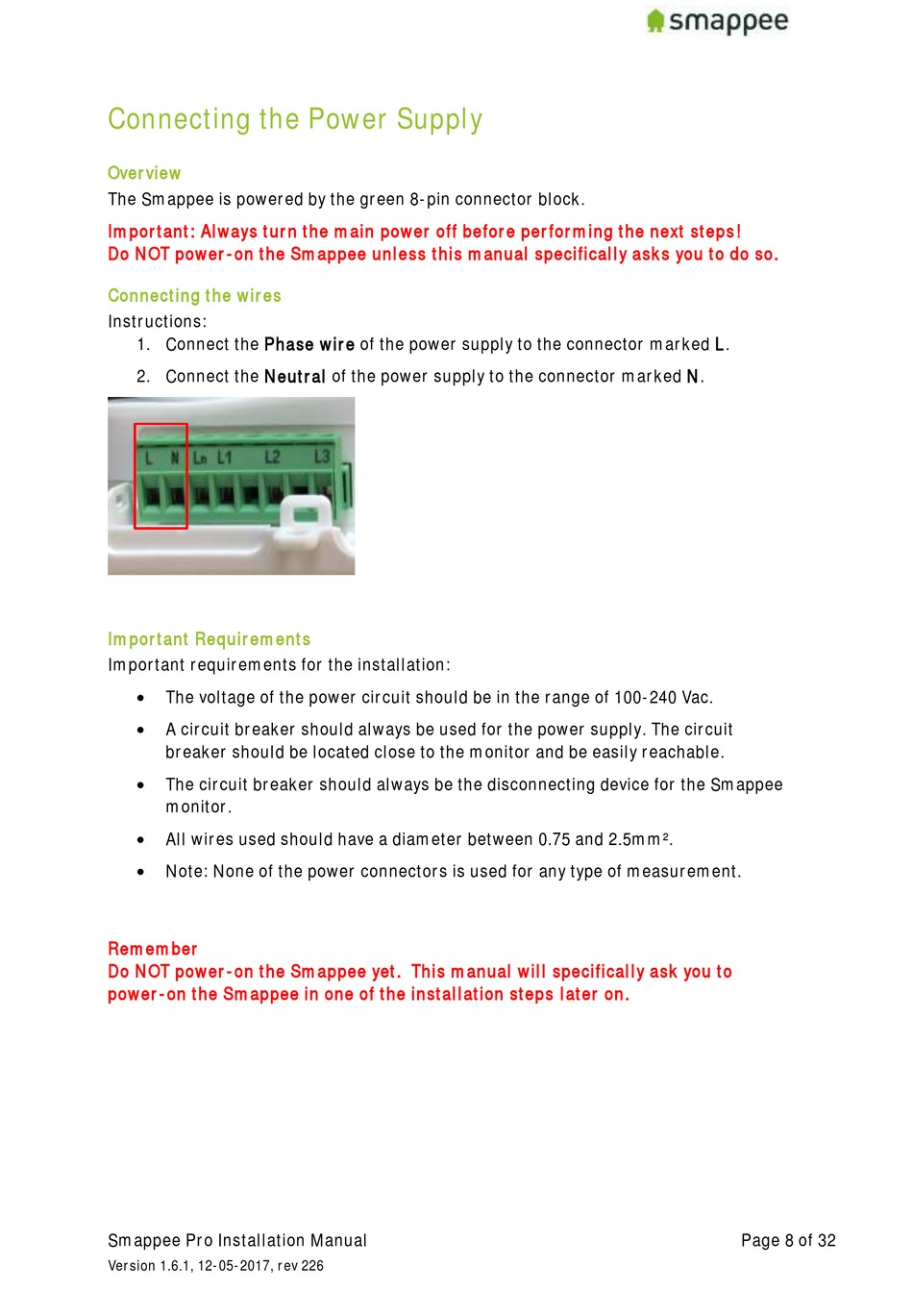

Connecting the Power Supply

Overview
The Smappee is powered by the green 8-pin connector block.
Important: Always turn the main power off before performing the next steps!
Do NOT power-on the Smappee unless this manual specifically asks you to do so.
Connecting the wires
Instructions:
1. Connect the Phase wire of the power supply to the connector marked L.
2. Connect the Neutral of the power supply to the connector marked N.
Important Requirements
Important requirements for the installation:
 The voltage of the power circuit should be in the range of 100-240 Vac.
 A circuit breaker should always be used for the power supply. The circuit
breaker should be located close to the monitor and be easily reachable.
 The circuit breaker should always be the disconnecting device for the Smappee
monitor.
All wires used should have a diameter between 0.75 and 2.5mm².

Note: None of the power connectors is used for any type of measurement.

Remember
Do NOT power-on the Smappee yet. This manual will specifically ask you to
power-on the Smappee in one of the installation steps later on.
