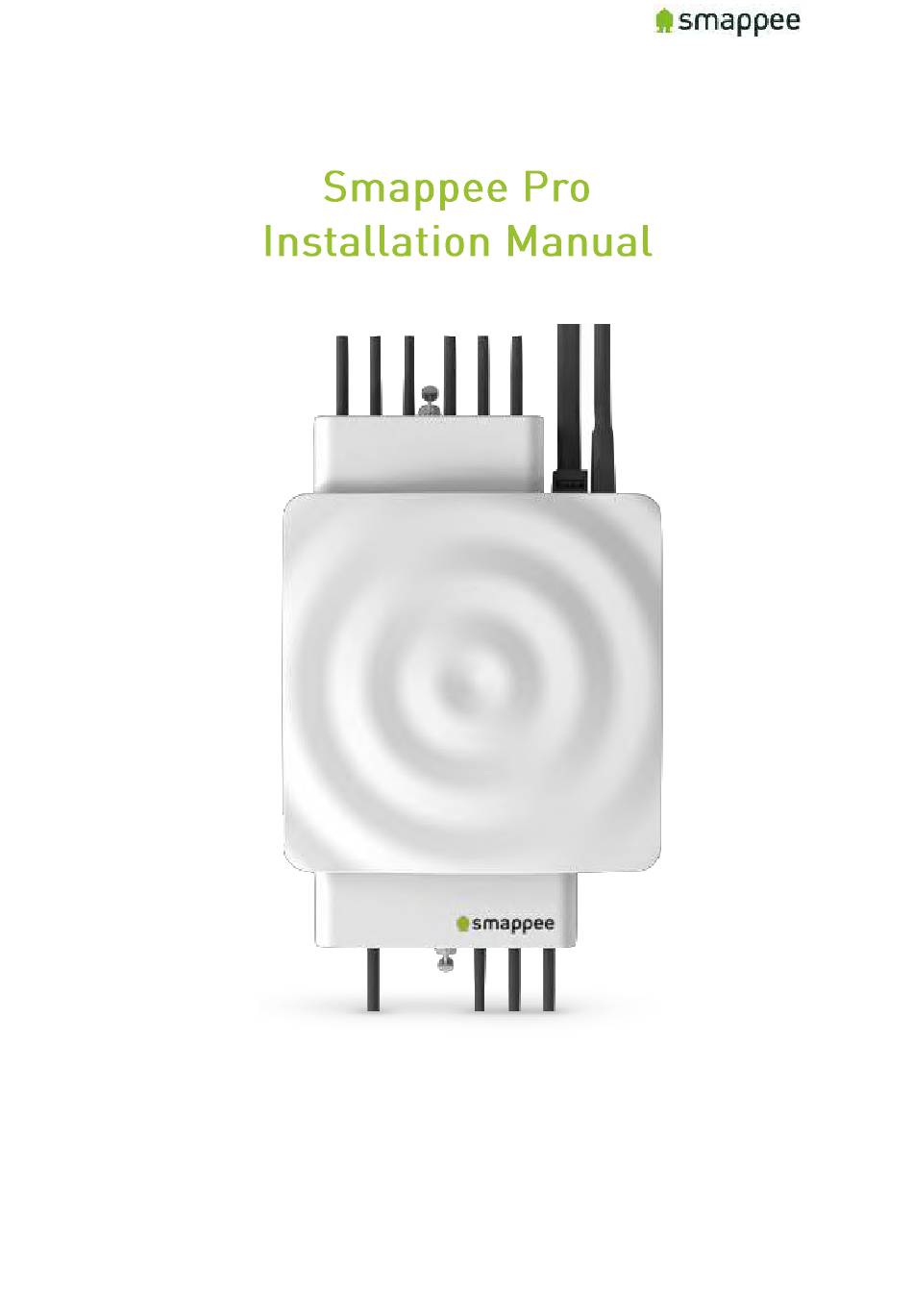

- Page 1 English Version 1.6.1 Date: 12-May-2017 © 2013-2016 Smappee NV. All rights reserved. Specifications are subject to change without notice. All product names are trademarks of their respective companies. Smappee Pro Installation Manual Page 1 of 32 Version 1.6.1, 12-05-2017, rev 226...
-
Page 2: Table Of Contents
Welcome to Smappee ..................... 3 Safety Instructions ......................4 Overview over the Installation Steps ................5 The connectors and Inputs of the Smappee ..............6 Connecting the Power Supply ..................8 Connecting the Voltage Measurement Wires ..............9 Connecting the Current Transformers (CTs) ............... 12 Current Clamps Variants ..................... -
Page 3: Welcome To Smappee
Welcome to Smappee Smappee Pro Installation Manual Page 3 of 32 Version 1.6.1, 12-05-2017, rev 226... -
Page 4: Safety Instructions
Do not open the equipment or touch any of its electronic circuitry. Do not attempt to repair or service any part of the Smappee Pro. Only use the cables which were delivered with the Product. Do not use the Product if damaged. -
Page 5: Overview Over The Installation Steps
Overview over the Installation Steps Step-by-Step The table below provides a global overview over all steps for installing the Smappee. Please follow these steps carefully and in the provided sequence. Step Title Page Hardware and Physical Installation Safety Instructions The connectors and Inputs of the Smappee... -
Page 6: The Connectors And Inputs Of The Smappee
The connectors and Inputs of the Smappee Overview This section explains the connectors of the Smappee Pro. Accessing the Connectors To get full access to all connectors, you should remove the two covers. For removing the covers, insert a screwdriver at the sides of the covers and carefully pull up the cover. - Page 7 The Green 8-Pin Connector Block The Smappee is delivered with a green 8-Pin Connector Block. It used to: connect power supply of the Smappee measure the voltage of the power phases You can find more details in the following sections.
-
Page 8: Connecting The Power Supply
The Smappee is powered by the green 8-pin connector block. Important: Always turn the main power off before performing the next steps! Do NOT power-on the Smappee unless this manual specifically asks you to do so. Connecting the wires Instructions: 1. -
Page 9: Connecting The Voltage Measurement Wires
Connecting the Voltage Measurement Wires Overview! Smappee measures the various voltages and phases of the individual Phase wires and the Neutral wire of the electrical installation. These wires need to be connected to the inputs of the green 8-pin connector block. - Page 10 Phase cable L1 to the input L1 Phase cable L2 to the input L2 Phase cable L3 to the input L3 Smappee Pro Installation Manual Page 10 of 32 Version 1.6.1, 12-05-2017, rev 226...
- Page 11 Verify the Correctness of Installation After finalizing the full Smappee installation, and while testing the Smappee measurements, you should specifically verify the correct wiring of the 8-pin connector block. These checks will be explained at a later step during the installation, at section "Checklist for Correct Configuration", on page 28.
-
Page 12: Connecting The Current Transformers (Cts)
The newly installed CTs always require an update of the configuration pages of the Smappee. For details, please see section "Configure the Smappee in the Expert Portal " on page Technical details The Smappee Pro has connectors for 9 current transformers. -
Page 13: Current Clamps Variants
Current Clamps Variants The table shows the current clamps that can be used with the Smappee Pro. Smappee supports only the CTs listed below. No other CTs should be used! Name/type Picture Specs Current Transformer MC: 50A SCT01-T10/50A MAX OV : 333 mV... -
Page 14: Preparing The Internet Connection
Preparing the Internet Connection Overview Now you should choose the method to connect the Smappee to the internet. There are three connection methods available: Ethernet cable (recommended) external Wi-Fi module (USB) external 3G/4G internet dongle (USBV) This section will prepare the Smappee for connecting to the Internet at a later point during the installation steps. -
Page 15: Initial Power-On Of The Smappee Monitor
Initial Power-On of the Smappee Monitor Introduction Your Smappee Pro monitor is now nearly ready for the first power-on. Please complete a number of checks, before you power-on the Smappee. Important: The Smappee Pro is not yet completely installed and insulated. -
Page 16: Login To The Smappee App
Login to the Smappee App Overview The Smappee App is required to activate your monitor and link it to your user account in the Smappee cloud. All other functionalities of the App are optional, and can be replaced by other online systems. -
Page 17: Connect To Internet And Cloud
Connect to Internet and Cloud Overview Now, you need to connect your Smappee Pro to your account on the App/Smappee cloud. If you use Wi-Fi for the network connection, you also provide here the Wi-Fi network name (SSID) and Wi-Fi password. - Page 18 "3 W" If these conditions are met, please continue the installation at section "Configure the Smappee in the Expert Portal ", on page 21. Otherwise, consult the section "Troubleshooting Internet and Cloud Access" on the next page.
-
Page 19: Troubleshooting Internet And Cloud Access
"1 W" Issues with Local Network (Ethernet or Wi-Fi) If your Smappee Pro is connected by Ethernet or Wi-Fi make sure that the IT department is aware of the installation. They may need to change settings in the network and firewalls. - Page 20 Smappee is trying to open an Wi-Fi hotspot access point. Please wait a few seconds. The light will turn Orange Steady in a few moments. Colors of 4G dongle If your Smappee Pro is connected by 4G dongle, please check the colors of the dongle. Color Description Any steady Successfully connected.
-
Page 21: Configure The Smappee In The Expert Portal
Configure the Smappee in the Expert Portal Overview In this step, you login to the Export Portal and configure the electrical parameters of the individual Current Transformers. Perform the following configuration steps carefully, since they are essential for correct measurements. - Page 22 Not used in Pro. Start Configuration Once you are logged in, you can start the configuration of the Current Transformers. These steps are described in the following sections. Smappee Pro Installation Manual Page 22 of 32 Version 1.6.1, 12-05-2017, rev 226...
-
Page 23: Configuration Step 1: Configuration Menu
This section displays the voltage that is measured at each phase input. For details, see section "Connecting the Voltage Measurement Wires", on page 9. Important: The voltage values should be approximately the same for each phase. Smappee Pro Installation Manual Page 23 of 32 Version 1.6.1, 12-05-2017, rev 226... - Page 24 The following table explains the parameters of the Real-Time Data. Parameter Explanation Info Input on the Smappee. Channel Measured channel. In Smappee Pro, this is identical to the Info column. Current Current measured on that CT (Ampere). Active power Active Power (Watt).
-
Page 25: Configuration Step 2: Channel Configuration Menu
The table shows the parameters for the configuration of each CT. Parameter Description Input Number of the Input connector on the Smappee. Name Provide a name for this specific input. Note: You should carefully select an unmistakable name, since it is used in many user-facing locations on the websites and the App. - Page 26 If you use Rogowski coils some of the combinations of configuration may be invalid. For more details, see section "Special Cases - Rogowski Coils" on page 27. Smappee Pro Installation Manual Page 26 of 32 Version 1.6.1, 12-05-2017, rev 226...
-
Page 27: Special Cases - Rogowski Coils
Rogowski Coils are a special type of current transformers. They are connected the same way as normal CTs. Attach the Rogowski coil around the cable and you plug it in the Smappee Pro monitor. Rogowski coils should be used only after consulting the technical experts from Smappee. -
Page 28: Checklist For Correct Configuration
At this moment, the installation should meet the following criteria: Check Description Details on The Smappee has been correctly powered on, according to the page 15 instructions and checks. The Smappee is connected to the Internet and the Smappee page 17 cloud. - Page 29 The correct configuration in the "Channel Configuration" page 25 menu. Once all checks are successfully completed, you may finish up the installation work. Please see the next page for the final steps. Smappee Pro Installation Manual Page 29 of 32 Version 1.6.1, 12-05-2017, rev 226...
-
Page 30: Mounting And Enclosing
Cover Mount the cover cap on the Smappee Pro to cover all electrical connections. If you used a voltage-rated multicore cable, you can also you an internal wire strap to fixate the cable under the covering cap. -
Page 31: The Smappee Pro Dashboard
The Smappee Dashboard is a website to access all measurement data of all the Smappee Pro devices of your company. The Dashboard is designed to be used with a Smappee Pro, but can also be used for a Smappee Energy or Smappee Solar. -
Page 32: Final Remarks
Support During Installation In case of problems during performing an installation, please carefully read this user manual. If this does not resolve the problem, you should contact Smappee Support. Non-Urgent support Please send an email to support@smappee.com.
