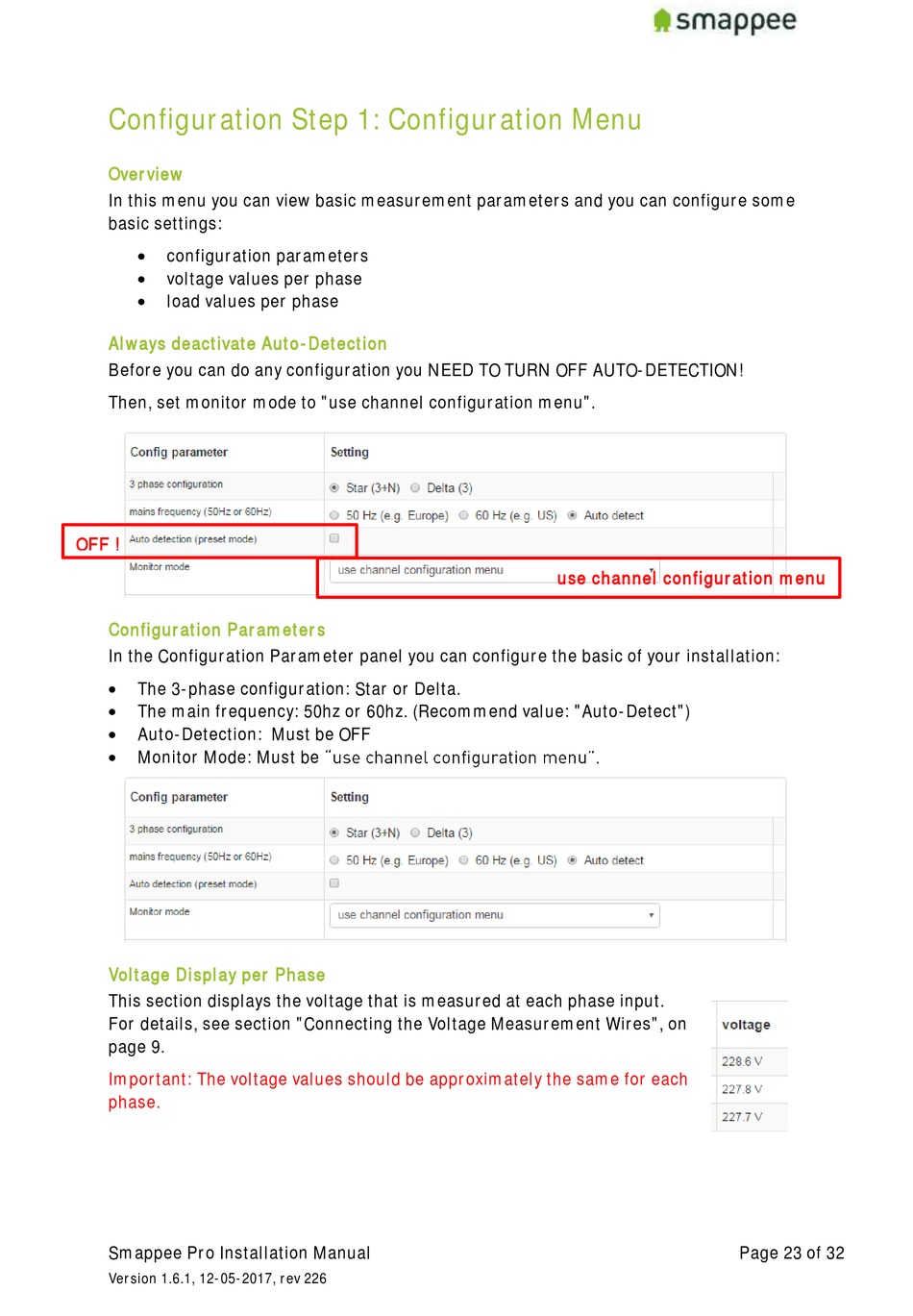

Configuration Step 1: Configuration Menu

Overview
In this menu you can view basic measurement parameters and you can configure some
basic settings:
configuration parameters

voltage values per phase

 load values per phase
Always deactivate Auto-Detection
Before you can do any configuration you NEED TO TURN OFF AUTO-DETECTION!
Then, set monitor mode to "use channel configuration menu".
OFF !
Configuration Parameters
In the Configuration Parameter panel you can configure the basic of your installation:
 The 3-phase configuration: Star or Delta.
The main frequency: 50hz or 60hz. (Recommend value: "Auto-Detect")

Auto-Detection: Must be OFF

Monitor Mode: Must be

Voltage Display per Phase
This section displays the voltage that is measured at each phase input.
For details, see section "Connecting the Voltage Measurement Wires", on
page 9.
Important: The voltage values should be approximately the same for each
phase.
Smappee Pro Installation Manual
Version 1.6.1, 12-05-2017, rev 226
use channel configuration menu
