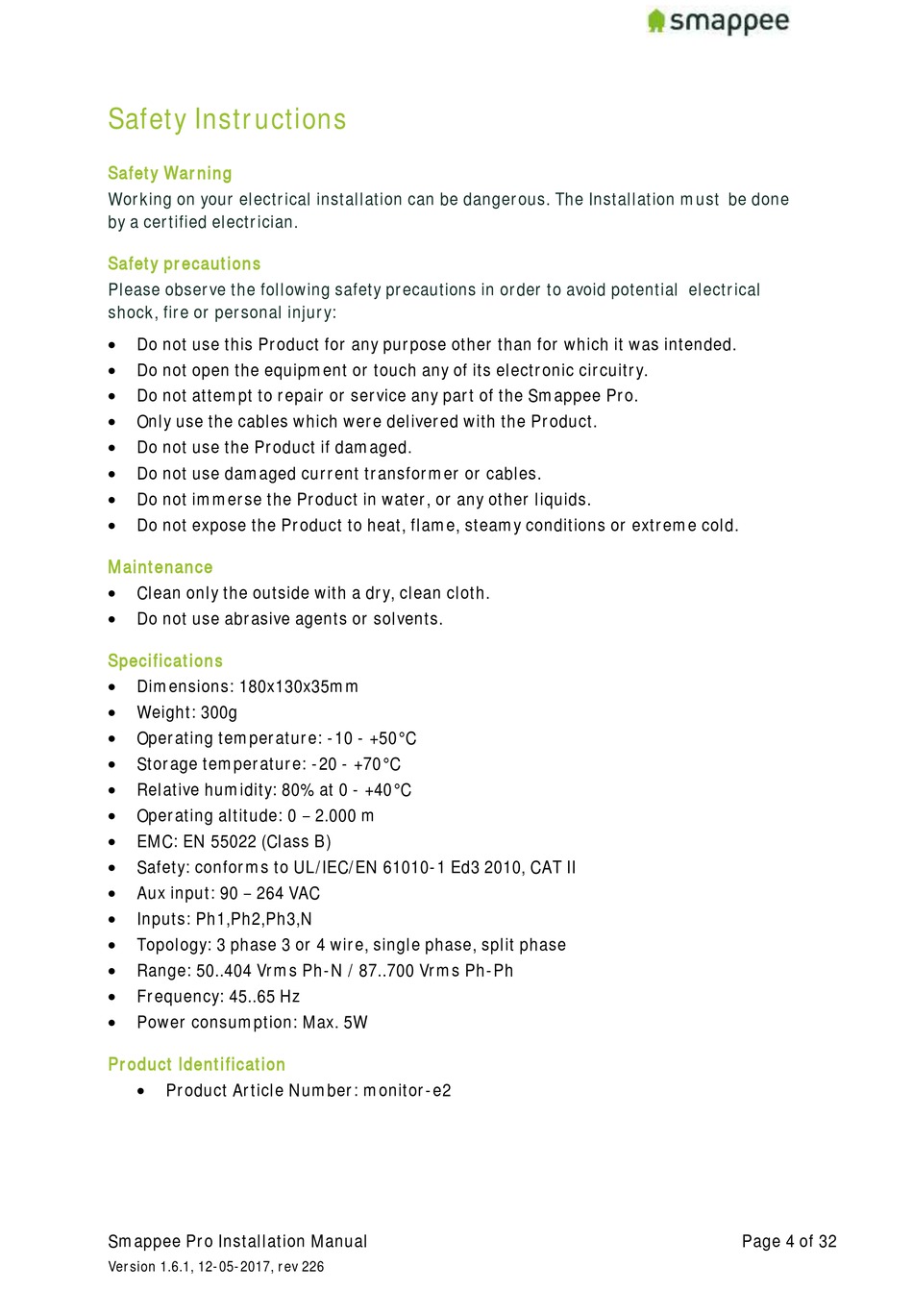

Safety Instructions - Smappee Pro Installation Manual

Safety Instructions

Safety Warning
Working on your electrical installation can be dangerous. The Installation must be done
by a certified electrician.
Safety precautions
Please observe the following safety precautions in order to avoid potential electrical
shock, fire or personal injury:
Do not use this Product for any purpose other than for which it was intended.

 Do not open the equipment or touch any of its electronic circuitry.
 Do not attempt to repair or service any part of the Smappee Pro.
Only use the cables which were delivered with the Product.

Do not use the Product if damaged.

 Do not use damaged current transformer or cables.
Do not immerse the Product in water, or any other liquids.

Do not expose the Product to heat, flame, steamy conditions or extreme cold.

Maintenance
 Clean only the outside with a dry, clean cloth.
Do not use abrasive agents or solvents.

Specifications
 Dimensions: 180x130x35mm
Weight: 300g

Operating temperature: -10 - +50°C

 Storage temperature: -20 - +70°C
 Relative humidity: 80% at 0 - +40°C
Operating altitude: 0 2.000 m

EMC: EN 55022 (Class B)

Safety: conforms to UL/IEC/EN 61010-1 Ed3 2010, CAT II

 Aux input: 90 264 VAC
Inputs: Ph1,Ph2,Ph3,N

Topology: 3 phase 3 or 4 wire, single phase, split phase

Range: 50..404 Vrms Ph-N / 87..700 Vrms Ph-Ph

 Frequency: 45..65 Hz
Power consumption: Max. 5W

Product Identification
Product Article Number: monitor-e2

