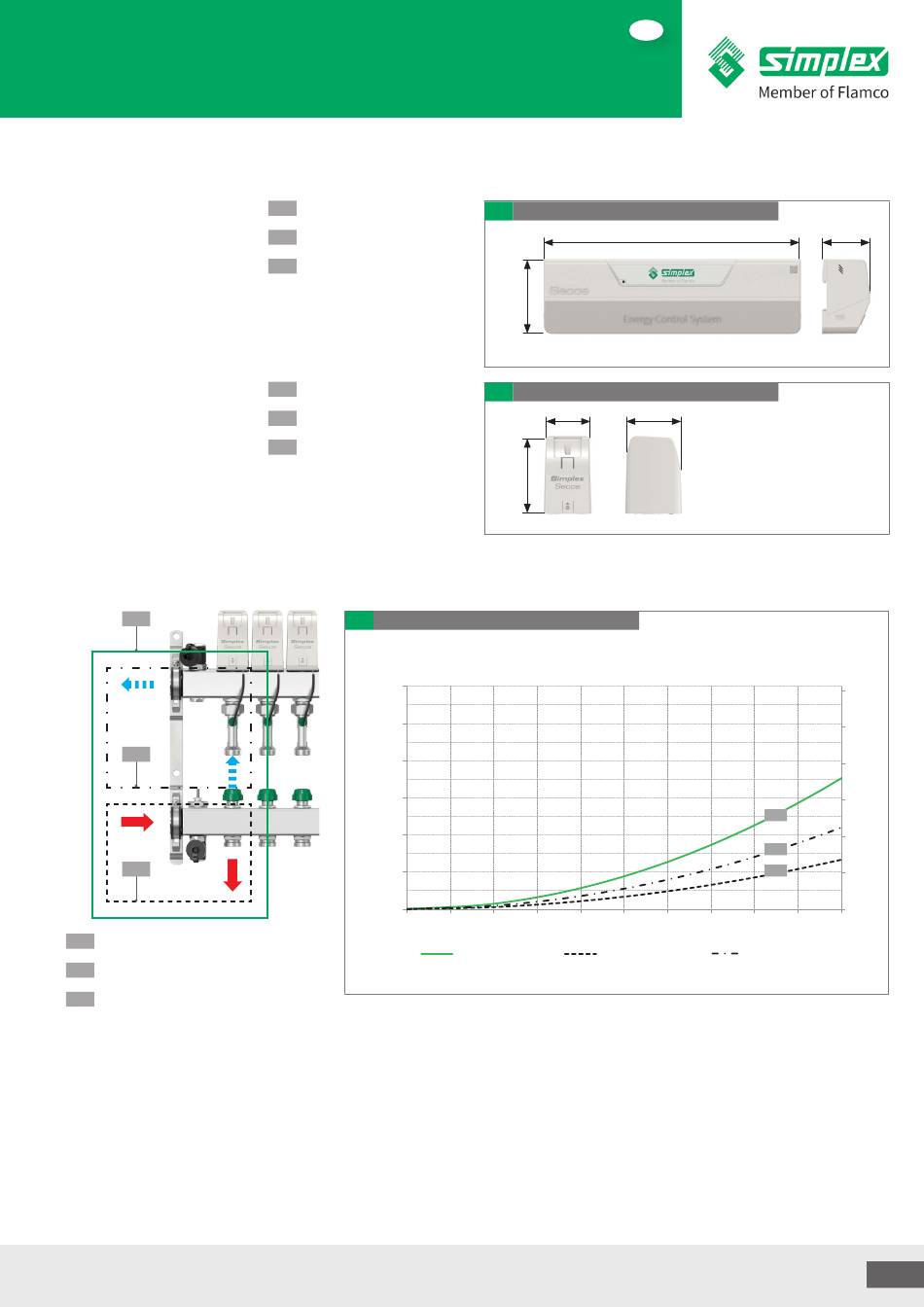

Secos - Simplex Energy Control System
5.1.2. Dimensions of Secos energy saving controller and Secos actuator
5.2. Pressure loss
A
B
C
A
∆p Secos total
B
∆p Secos return line
C
∆p Secos supply line
A
328 mm
B
97 mm
C
61 mm
A
47 mm
B
77 mm
C
57 mm
5
∆p
[hPa]
[mbar]
300
250
200
150
100
50
0
0 50
3
Dimensions of energy saving controller
B
4
Dimensions of actuator
A
B
100 150 200 250
Secos gesamt Secos Vorlauf
Secos complete Secos supply line
Secos complete Secos supply line
