Installation instructions | Operating instructions
Secos - Simplex Energy Control System

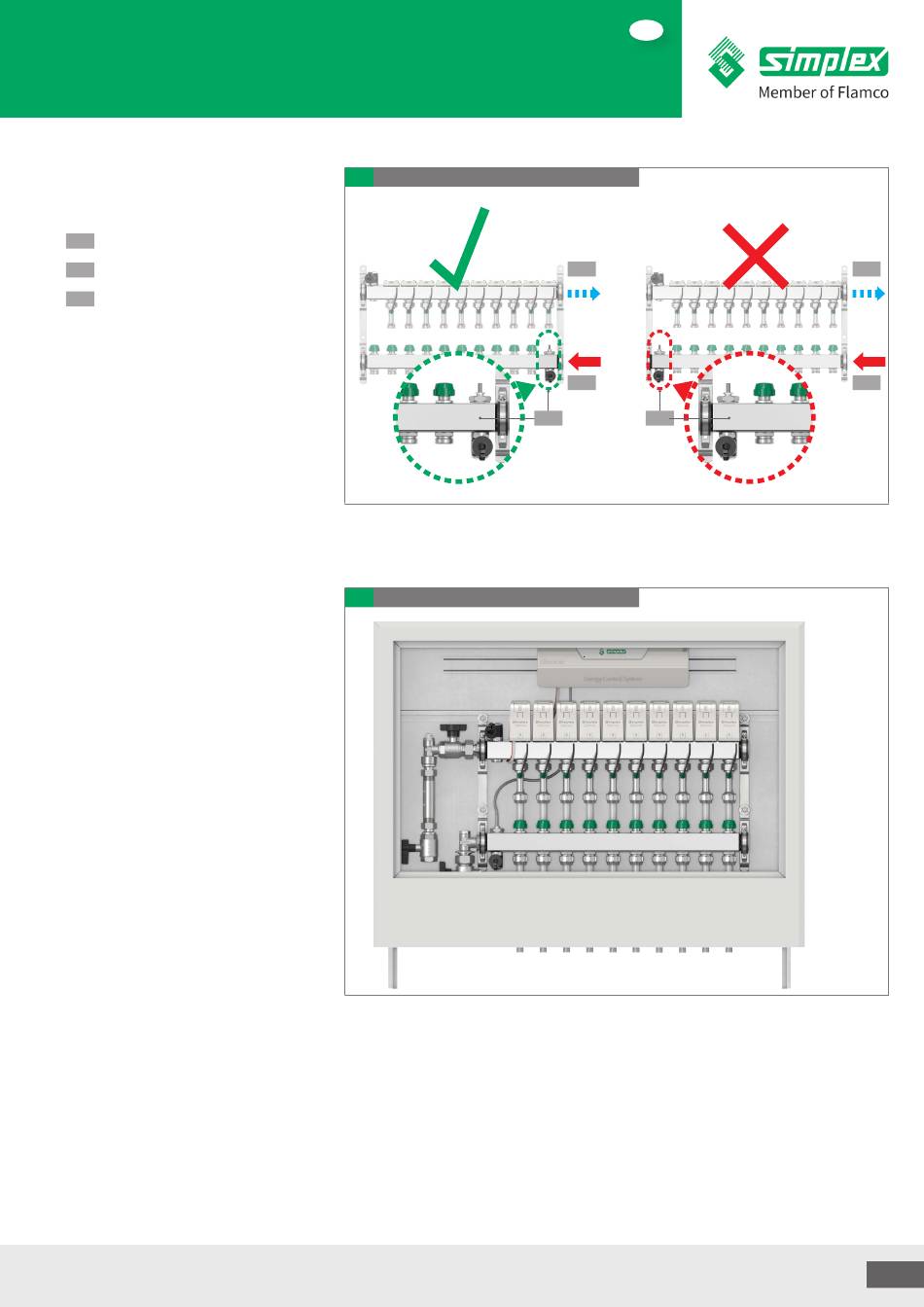

Secos system manifold after conversion
with primary connections on the
right-hand side
1
Return line
2
Supply line
3
Temperature sensor supply line
6.2. Installation in the distribution cabinet
Note the space required for accessories
(energy saving controller, connection set
(left, right) and pipe mounting (below).
Also take into account the space required
for installation / maintenance work.
8
System manifold connections right
9
Installation in the distribution cabinet
The illustrations are symbolic and may deviate from the respective product.
Subject to technical modifications and errors.
EN
1
2
3 3
Product range
1
2
