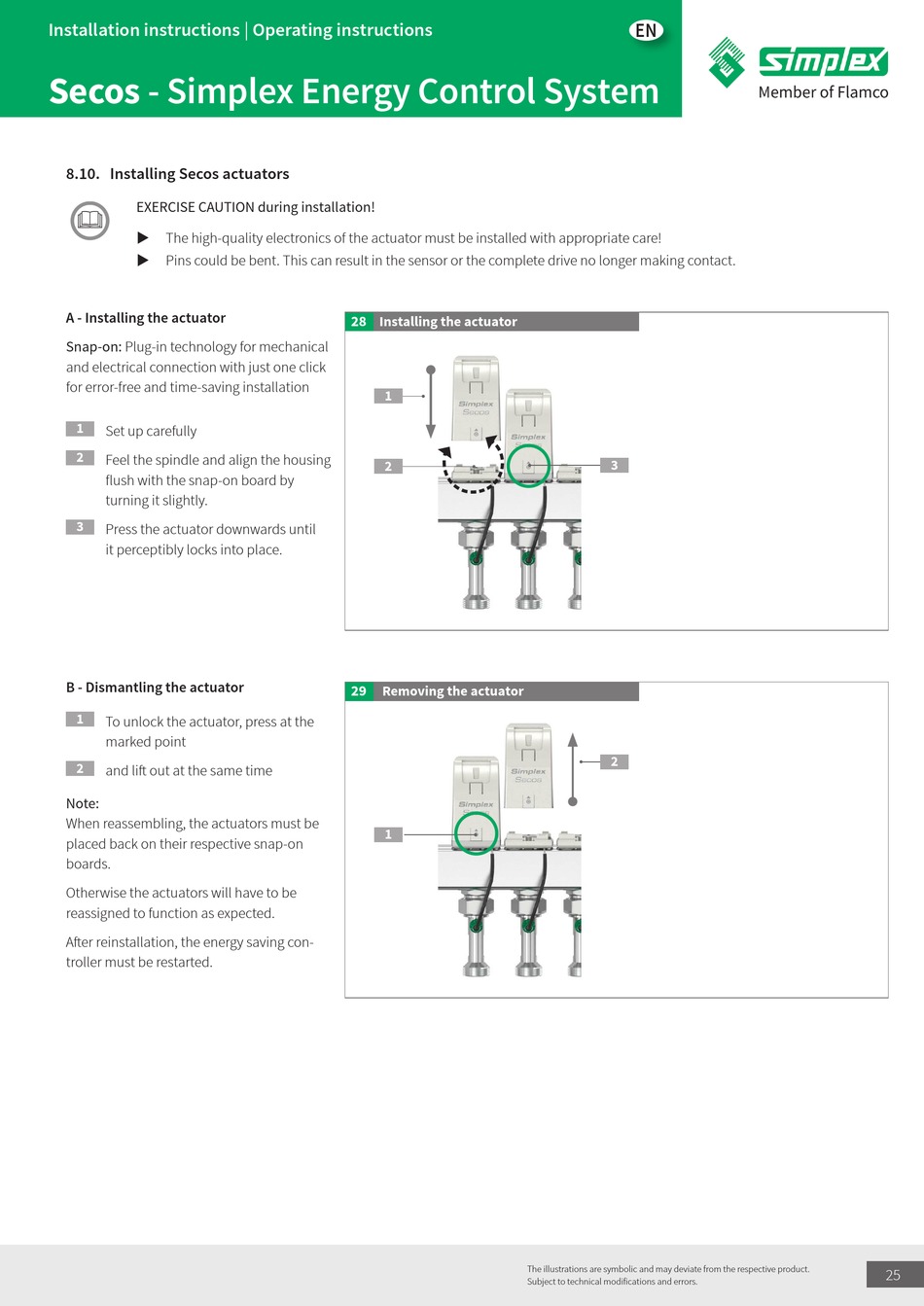

8.10. Installing Secos actuators
EXERCISE CAUTION during installation!
The high-quality electronics of the actuator must be installed with appropriate care!
X
X Pins could be bent. This can result in the sensor or the complete drive no longer making contact.
A - Installing the actuator
Snap-on: Plug-in technology for mechanical
and electrical connection with just one click
for error-free and time-saving installation
1
Set up carefully
2
Feel the spindle and align the housing
flush with the snap-on board by
turning it slightly.
3
Press the actuator downwards until
it perceptibly locks into place.
B - Dismantling the actuator
1
To unlock the actuator, press at the
marked point
2
and lift out at the same time
Note:
When reassembling, the actuators must be
placed back on their respective snap-on
boards.
Otherwise the actuators will have to be
reassigned to function as expected.
After reinstallation, the energy saving con-
troller must be restarted.
28
Installing the actuator
1
2
29 Removing the actuator
1
EN
3
2
