Simplex Secos Installation Instructions Operating Instructions page 12

Installation instructions | Operating instructions
Secos - Simplex Energy Control System

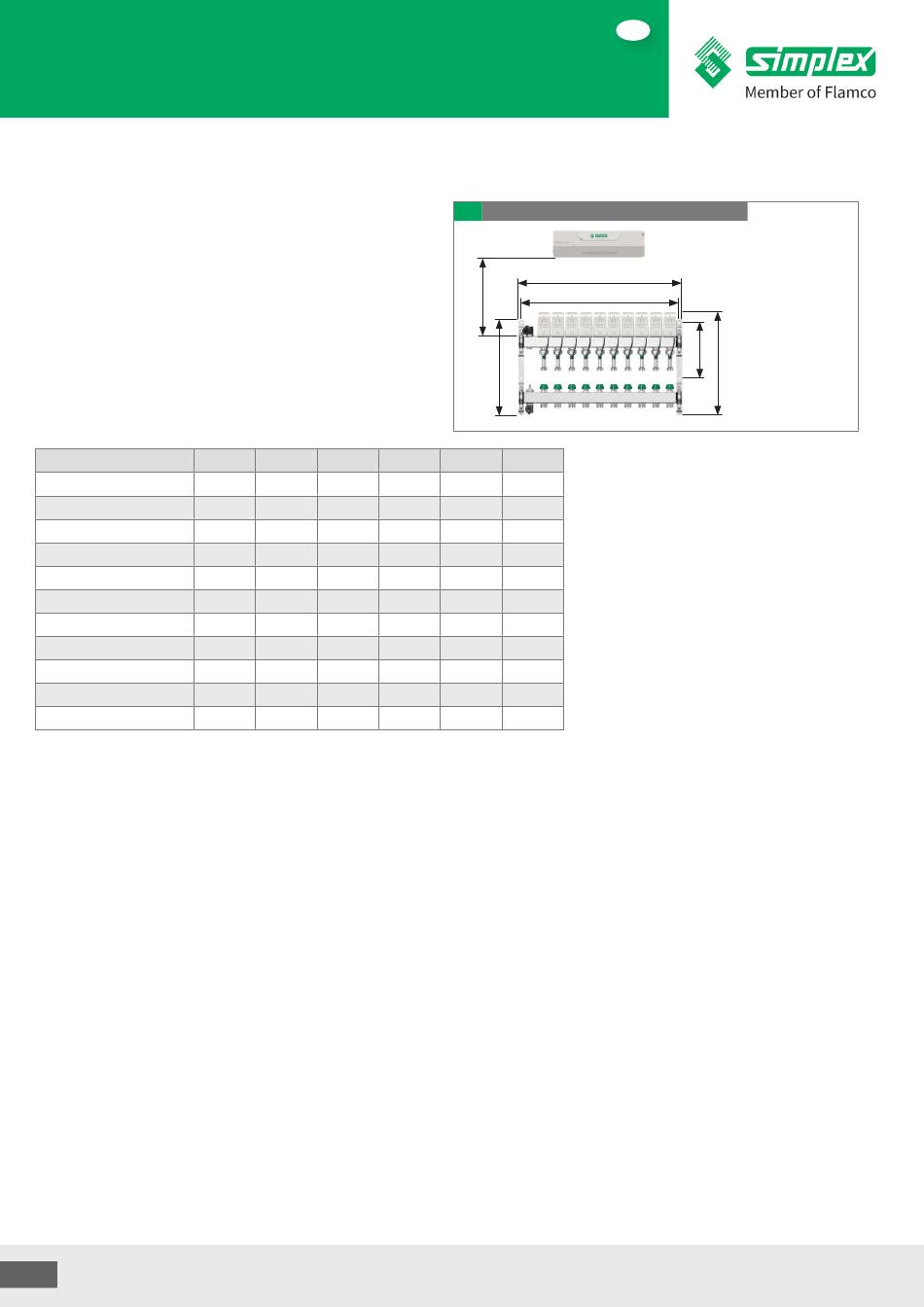

6.3. Installation on a wall
Observe space requirements for accessories energy saving controller
incl. mounting location, connection set and pipe mounting.
See table for dimensions of fixing points (F, G).
See table for minimum clearance (L).
Type
VT FH Secos - 4 HC
VT FH Secos - 5 HC
VT FH Secos - 6 HC
VT FH Secos - 7 HC
VT FH Secos - 8 HC
VT FH Secos - 9 HC
VT FH Secos - 10 HC
VT FH Secos - 11 HC
VT FH Secos - 12 HC
VT FH Secos - 13 HC
VT FH Secos - 14 HC
12 Secos - Simplex Energy Control System
A [mm] B [mm] F [mm]
304 340 284
354 340 334
404 340 384
454 340 434
504 340 484
554 340 534
604 340 584
654 340 634
704 340 684
754 340 734
804 340 784
10 Dimensions
L
B
G [mm] I [mm] L [mm]
197 366 115
197 366 115
197 366 115
197 366 115
197 366 115
197 366 115
197 366 115
197 366 115
197 366 115
197 366 115
197 366 115
EN
A
F
G
I
