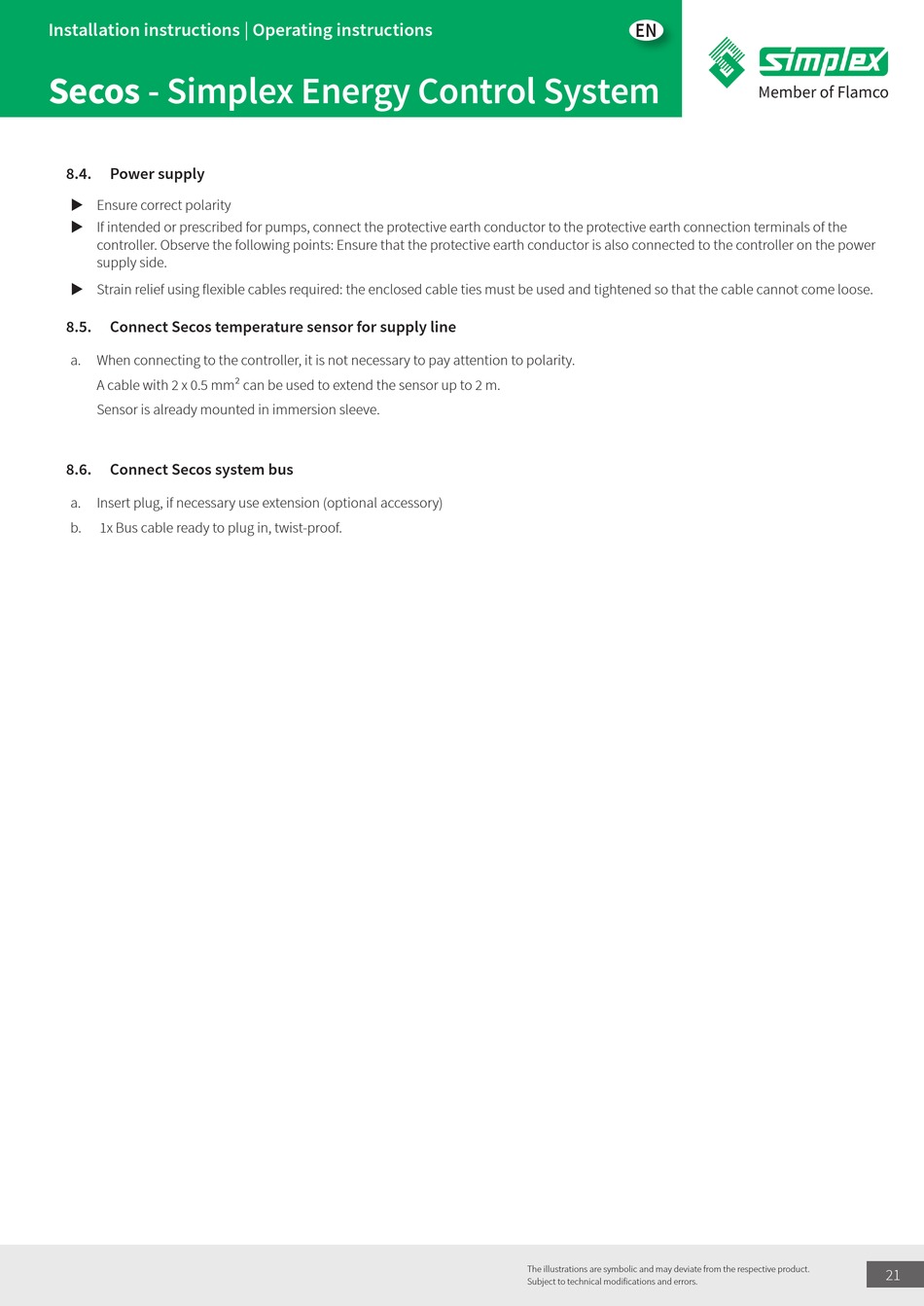

Installation instructions | Operating instructions
Secos - Simplex Energy Control System
8.4.
Power supply
X Ensure correct polarity
X If intended or prescribed for pumps, connect the protective earth conductor to the protective earth connection terminals of the
controller. Observe the following points: Ensure that the protective earth conductor is also connected to the controller on the power
supply side.
X Strain relief using flexible cables required: the enclosed cable ties must be used and tightened so that the cable cannot come loose.
8.5.
Connect Secos temperature sensor for supply line
a.
When connecting to the controller, it is not necessary to pay attention to polarity.
A cable with 2 x 0.5 mm² can be used to extend the sensor up to 2 m.
Sensor is already mounted in immersion sleeve.
8.6.
Connect Secos system bus
a.
Insert plug, if necessary use extension (optional accessory)
b.
1x Bus cable ready to plug in, twist-proof.
EN
The illustrations are symbolic and may deviate from the respective product.
Product range
Subject to technical modifications and errors.
21
