Secos - Simplex Energy Control System
6.

Installation of Secos system manifold and Secos energy saving controller unit

The hydraulics must be checked for leak-tightness before installation of the electronics. It must be ensured that no moisture can enter
the electronics.

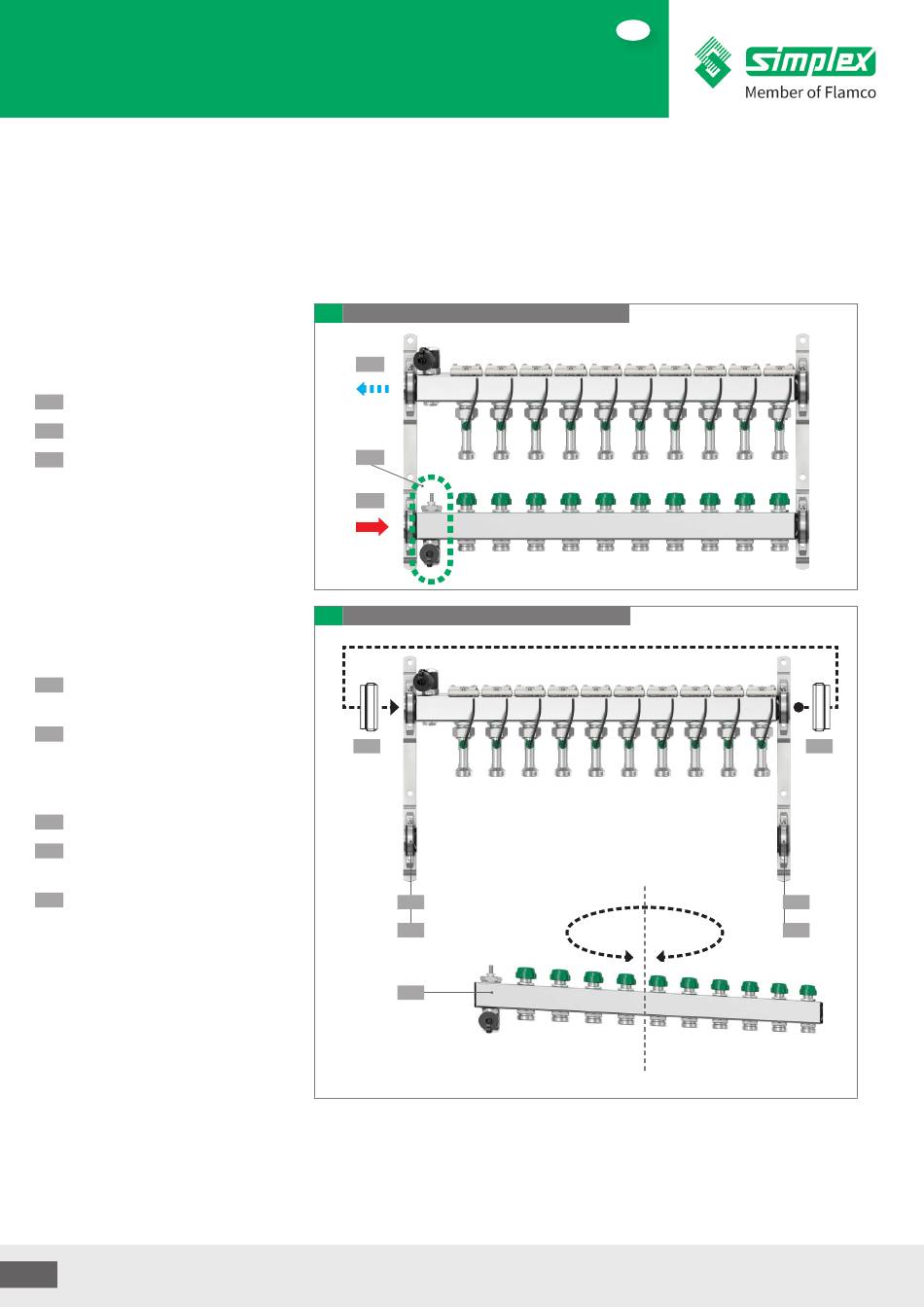

6.1. Installation of system manifold
The primary connections on the unit as
delivered are located on the left-hand
side.
1
Return line
2
Supply line
3
Temperature sensor supply line left
Conversion from left to right
For this purpose on the upper manifold
(return line)
1
Remove the dummy plug on the
right-hand side
2
Screw in dummy plug on the
left-hand side
The lower manifold (supply line)
3
Open the retaining bracket
4
Turn the manifold bar horizontally
by 180°
5
Close the retaining bracket again
10 Secos - Simplex Energy Control System
6
Delivery condition connections left
1
3
2
7
Conversion of connections from left to right
2
3
5
4
EN
180°
1
3
5
