Installation instructions | Operating instructions
Secos - Simplex Energy Control System

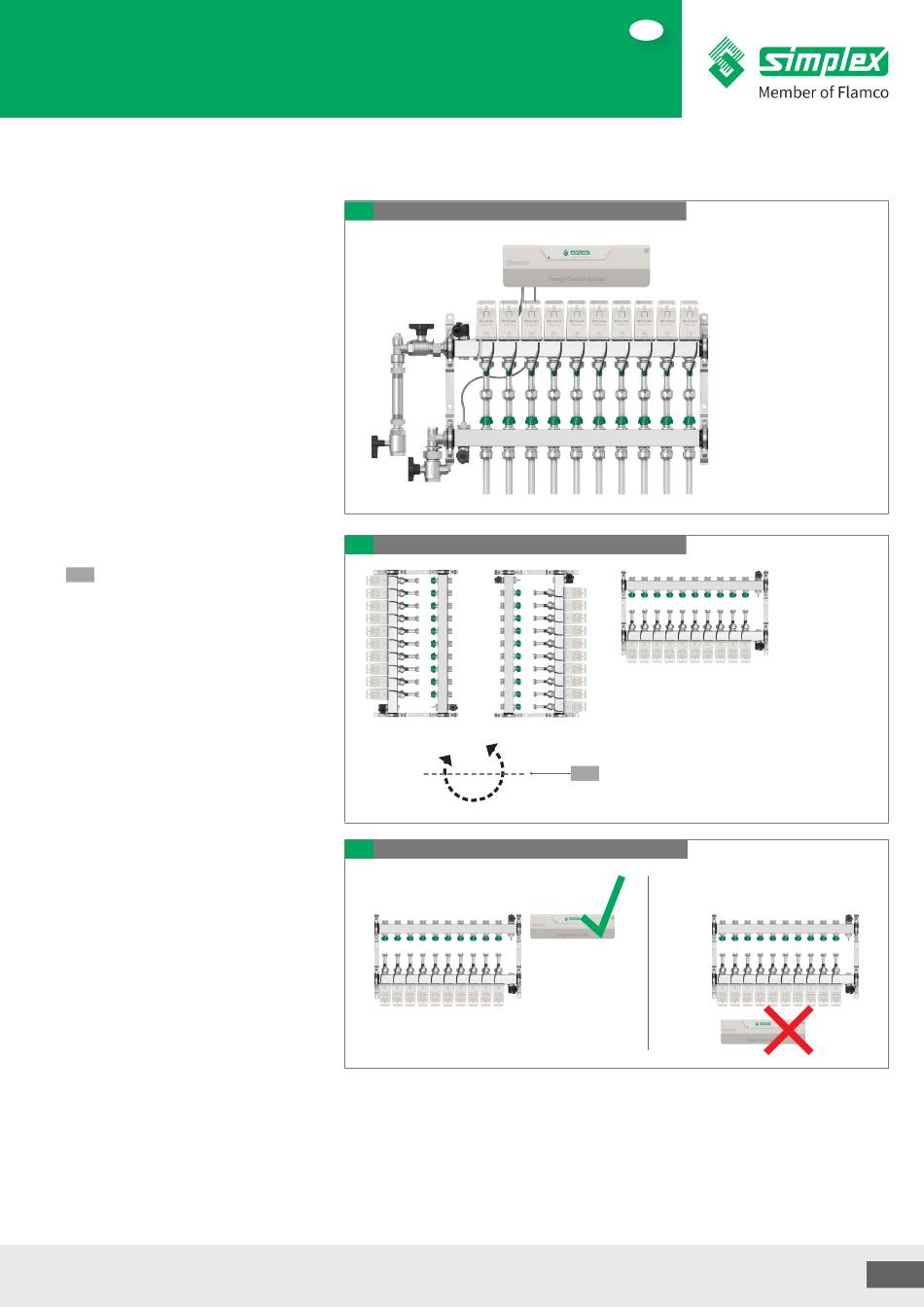

6.3.1. Installation position
The Secos system manifold can be operated
in various installation positions.
However, if the system manifold is to
be operated outside the recommended
installation position, the energy saving
controller unit must not be placed in areas
where water ingress is a risk.
The hydraulics must be checked for
leak-tightness before installation of the
electronics.
It must be ensured that no moisture can
enter the electronics.
1
The Secos system manifold can be
mounted horizontally rotated from 0° to 360°.
Do not install the Secos energy-saving
controller below water-bearing connections!
11
Recommended mounting position
12
Other possible mounting positions
13
Installation options for energy saving controller
EN
1
0 - 360°
The illustrations are symbolic and may deviate from the respective product.
Product range
Subject to technical modifications and errors.
