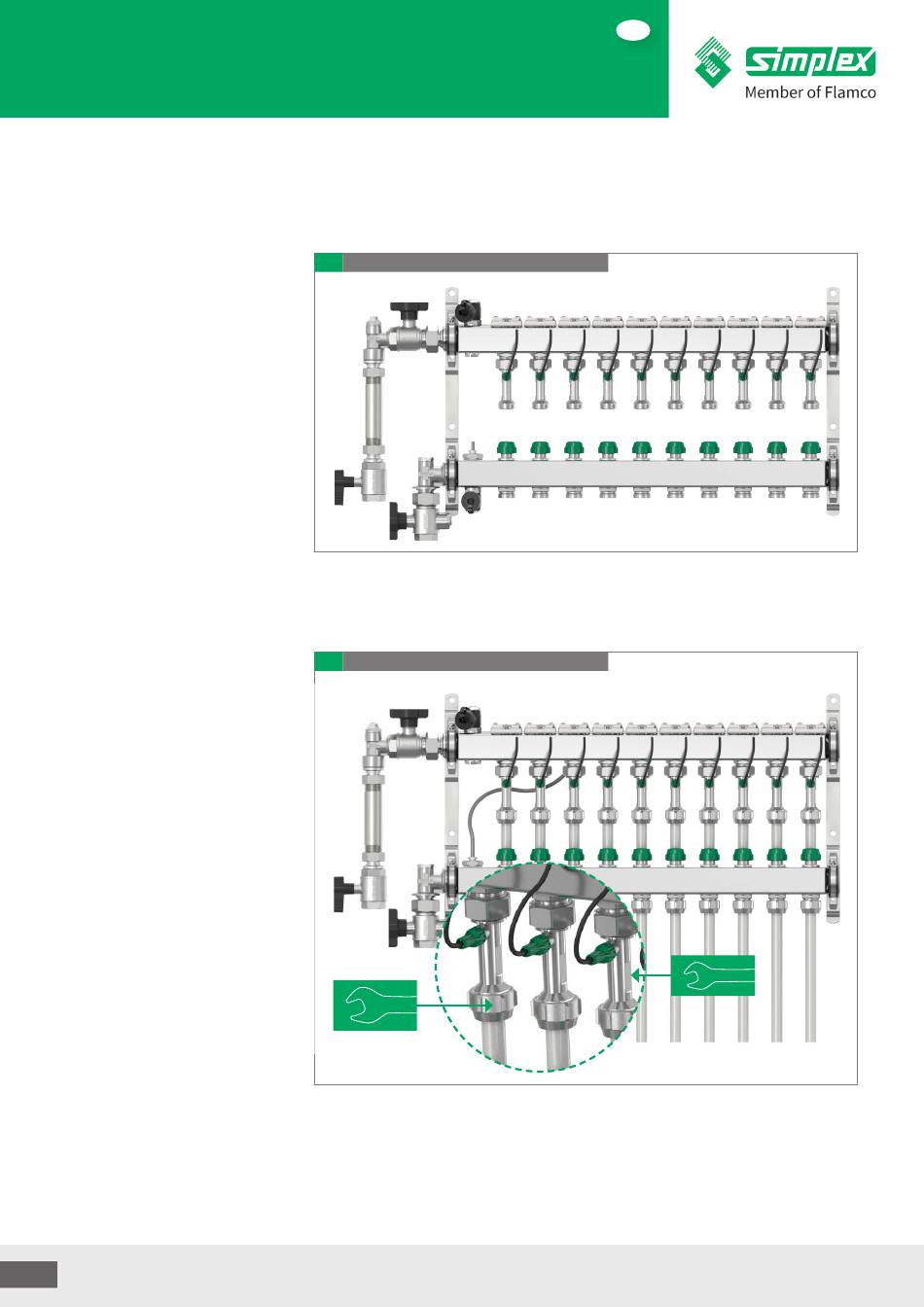

6.4. Hydraulic connection
6.4.1. Primary piping
Screw the connection accessories into the
Secos system manifold according to the
connection set being used.
Hold the unit to prevent twisting when
screwing into the Secos system manifold.
6.4.2. Secondary piping
For strain-free installation, hold the spanner
flats of the multi-sensor against the spanner
flats of the multi-sensor when tightening.
All circuits are open on delivery to allow you
to carry out a leak test.
• Close unused connections securely
with cap.
(not included in scope of supply)
