rotork Remote Control Series Manual page 9

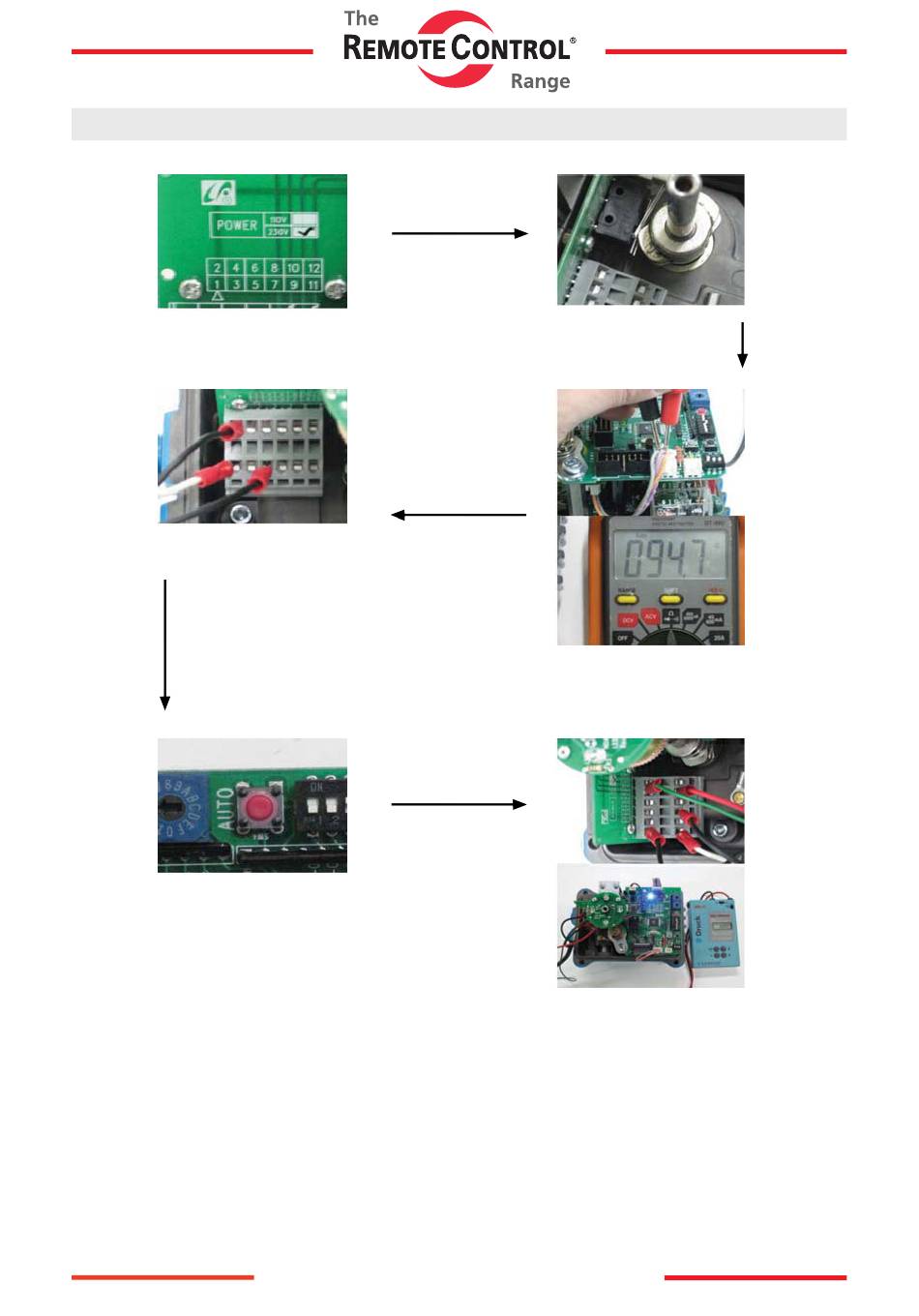

ACTUATOR Setting & Test (AC230V Power)
Check the Main Power Check the Close Limit
Power input
Wage terminal
No.2, No.5 Jump
Check the resistent value of PIU
(The resistant value when
closed: 80~120Ω)
(ACTUATOR automatic close / open)
AUTO Button push (25sec)
(4mA: Close, 20mA: Open)
4-20mA INPUT (ACTUATOR Operation)
*
In case of reverse operation
4mA: Open, 20mA: Close
Refer to page 1 for reverse setting
