rotork Remote Control Series Manual page 5

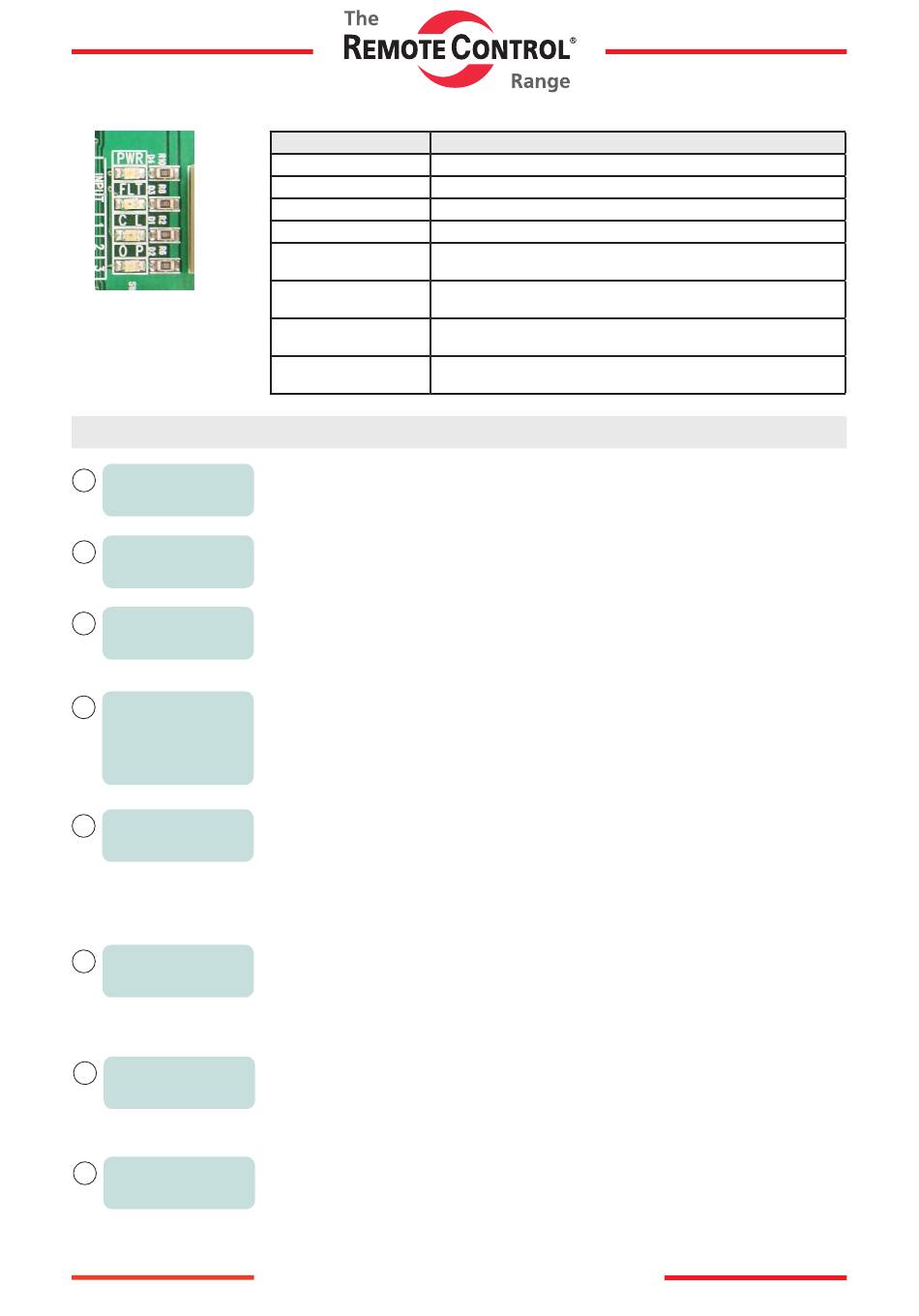

CONTROL / WARNING LAMP
1
ACTUATOR
FULL CLOSE
2
CLOSE
LIMIT SETTING
3
POTENTIOMETER
CHECK
4
ACTUATOR
FULL OPEN
&
OPEN LIMIT SETTING
5
Electric Wiring and
Power Input
6
AUTO SCAN
7 4-20mA
INPUT
8
4-20mA
OUTPUT
Power On
Power On / Off Flickering
Fault On / Off Flickering
Close On Lighting
Open On Lighting
Fault On Lighting&
Close On / Off Flickering
Fault On Lighting &
Open On / Off Flickering
Fault On Lighting&
Close On Lighting
Fault On Lighting&
Open On Lighting
Set up and Order
ACTUATOR manually using the lever on the handle and you will FULL CLOSE.
(Refer to page 6)
Set the CLOSE LIMIT SWITCH ACTUATOR.
(Refer to page 6)
When the ACTUATOR FULL CLOSE status, POTENTIOMETER to determine the value.
*
The factory is set to 80 ~ 120Ω. If you have not been set 80 ~ 120Ω, please reset.
(Refer to page 6)
Using the manual lever or handle to the FULL OPEN ACTUATOR then, in the same way
to set the OPEN LIMIT SWITCH.
(Refer to page 6)
Caution!
1. Confirm that the wiring diagram located in the ACTUATOR and Wiring No. on the
nameplate match with each other.
2. INPUT and OUTPUT of the +, - if the substrate is changed, so Please be sure to
break.
(Refer to page 7)
Please make sure to press the autoscan button for at least 2 seconds before operating
proportional control.
ACTUATOR automatically CLOSE, OPEN, while the behavior is to automatically check
for abnormalities.
(Refer to page 8)
After entering the 4-20mA INPUT, ACTUATOR make sure that the normal operation.
Determine when the problem occurred after the warning lamp to reset the settings of its
contents.
(Refer to page 8)
4-20mA OUTPUT not fit, the volume is set using switches..
(Refer to page 8)
www.rotork.com www.remotecontrol.se
- 5 -
Main Power Input
CH1, CH2 in case of optional setting
Input defect/disconnection
Full Close
Full Open
Potentiometer disconnection
Potentiometer P1,
P3 Inverse Disconnection
When manual control of the hande exceeds the close limit setting
When manual control of the hande exceeds the open limit setting
