- Page 1 GANZ ZN8 Infrared Bullet Network Camera User Manual Issue V1.0 Date 2016-02-22...
- Page 3 Infrared Bullet Network Camera User Manual Precautions Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
- Page 4 Infrared Bullet Network Camera Precautions User Manual Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged. Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
-
Page 5: Special Announcement
Infrared Bullet Network Camera User Manual Precautions Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products. This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product. - Page 6 Infrared Bullet Network Camera Contents User Manual Contents Nie znaleziono żadnych pozycji spisu treści. Issue V1.0 (2016-02-22)
-
Page 7: Product Appearance

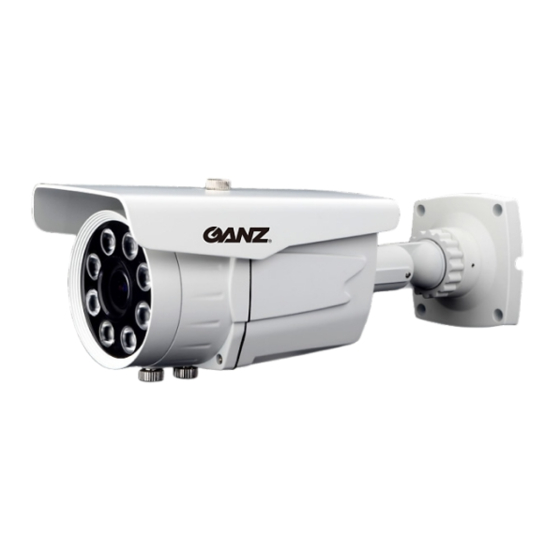

Infrared Bullet Network Camera User Manual 1 Overview Overview 1.1 Product appearance Figure 1-1 shows the appearance of the infrared bullet network camera. Table 1-1 describes the components on the camera. Figure 1-1 Infrared bullet network camera Table 1-1 Components description Component Description ZOOM button... - Page 8 Infrared Bullet Network Camera 1 Overview User Manual Figure 1-2 Multi-head cable Figure 1-3 Simple multi-head cable Table 1-2 Multi-head cable description Color Port Description Network Connects to a standard Ethernet cable. access port Power supply Connects to a 12V direct current (DC) port power supply.
- Page 9 Infrared Bullet Network Camera User Manual 1 Overview Color Port Description (normal open) yellow core Alarm input Alarm input terminal positive terminal Orange core Alarm input ground terminal 1.3 Features Network Features Support complete TCP/IP protocol suite. Support video, audio, and alarm data. ...
-
Page 10: Device Dimensions
Infrared Bullet Network Camera 2 Device Dimensions User Manual Device Dimensions Figure 2-1 shows the infrared bullet network camera dimensions. Figure 2-1 Dimensions (unit: mm) Issue V1.0 (2016-02-22) -
Page 11: Device Installation
Infrared Bullet Network Camera User Manual 3 Device Installation Device Installation 3.1 Installation Preparation When installing the camera, you may require the following tools and accessories listed in Table 3-1. You need to prepare only listed tools as accessories are delivered with the camera. -
Page 12: Installation Mode
Infrared Bullet Network Camera 3 Device Installation User Manual 3.2 Installation Mode The infrared bullet network camera can be installed on the ceiling or wall. You can select an installation mode based on site requirements. If the camera is installed on a concrete wall, install the expansion bolts before installing the bracket. - Page 13 Infrared Bullet Network Camera User Manual 3 Device Installation Figure 3-2 Install the positioning label Step 4 Aim the four holes of the bottom cover at the white plastic buttons, use the white stainless self-tapping screws with 27mm to fix the camera onto the wall, as shown in Figure 3-3.
- Page 14 Infrared Bullet Network Camera 3 Device Installation User Manual Figure 3-4 Adjust the view angle Issue V1.0 (2016-02-22)
-
Page 15: Quick Configuration
Infrared Bullet Network Camera User Manual 4 Quick Configuration Quick Configuration 4.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.1.168) in the address box, and press Enter. -
Page 16: Main Page Layout
Infrared Bullet Network Camera 4 Quick Configuration User Manual logout To logout of system, click Sign out in the upper right corner of the main page, the login page is display after you log out of the system. 4.2 Main page layout On the main page, you can view Live video, playback and configuration, change the password, and log out of the system. -
Page 17: Browsing Video
Infrared Bullet Network Camera User Manual 4 Quick Configuration Element Description When the device accepts an alarm signal, the alarm icon will display within 10s in the web management system. When the device encounters an exception, the fault icon Fault icon is displayed. - Page 18 Infrared Bullet Network Camera 4 Quick Configuration User Manual Figure 4-3 Adding the a trusted site 2. In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in Błąd! Nie można odnaleźć...
- Page 19 Infrared Bullet Network Camera User Manual 4 Quick Configuration The login page is display when the control is loaded. 4.3.2 Download the right control in the Internet Explorer Preparation User uses the Internet Explorer browse video. Live video page pop-ups the message “clicks to play live video with ActiveX ...
-
Page 20: Setting Local Network Parameters
Infrared Bullet Network Camera 4 Quick Configuration User Manual Figure 4-6 Download control tips Click the message ”click here to use Flash for live Video ”, jump to download ActiveX control interface, once downloading is complete, you can watch more fluent video screen. - Page 21 Infrared Bullet Network Camera User Manual 4 Quick Configuration The Local Network page is displayed, as shown in Figure 4-7. Figure 4-7 Local Network page Step 2 Set the parameters according to Błąd! Nie można odnaleźć źródła odwołania.. Table 4-2 Local network parameters Parameter Description Setting...
- Page 22 Infrared Bullet Network Camera 4 Quick Configuration User Manual Parameter Description Setting Subnet Mask Subnet mask of the network [Setting method] adapter. Enter a value manually. [Default value] 255.255.255.0 Default Gateway This parameter must be set if [Setting method] the client accesses the device Enter a value manually.
-
Page 23: Technical Specifications
Infrared Bullet Network Camera User Manual 5 Technical Specifications Technical Specifications Table 5-1 lists the technical specifications of the camera. Table 5-1 Technical specifications Items parameters Description Camera Image sensor 1/3" CMOS sensor function Video standard Configurable 1920(H) ×1080(V) Effective Pixels Digital zoom Not supported... - Page 24 Infrared Bullet Network Camera 5 Technical Specifications User Manual Items parameters Description function distance External Network RJ-45, 10/100Base-T self-adaptive Ethernet port interface interface Alarm Passive alarm(one alarm input and one alarm output) interface RCA interface(one audio input) Audio interface RCA interface(one audio output) Video Video encoding...
- Page 25 Infrared Bullet Network Camera User Manual 5 Technical Specifications Items parameters Description Occlusion Support video Motion Support detection Two roles: administrator and common users. The User rights administrator can assign common users different rights. Security mode User name and password-based authentication Support for Linux/Windows C++ SDK development...
- Page 26 Infrared Bullet Network Camera User Manual Hazardous Substance Declaration Hazardous Substance or Element Hexavalent Polybrominated Component Plumbum Mercury Cadmium Polybrominated Chromium Diphenyl Ethers (Pb) (Hg) (Cd) Biphenyls (PBB) (Cr6+) (PBDE) Structural × ○ ○ ○ ○ ○ part Board/circuit × ○...
