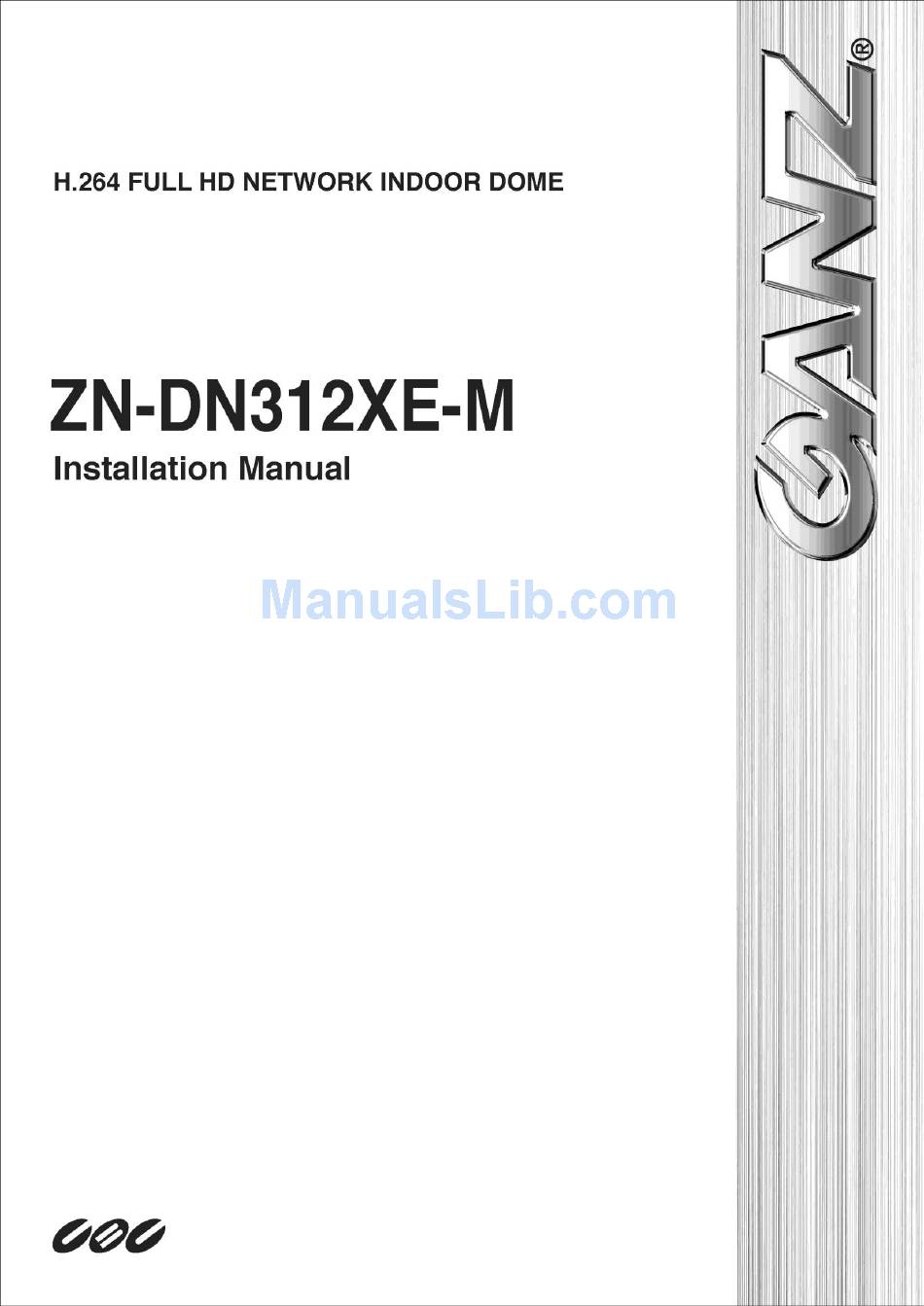

Ganz ZN-DN312XE-M Installation Manual

Ganz ZN-DN312XE-M Installation Manual

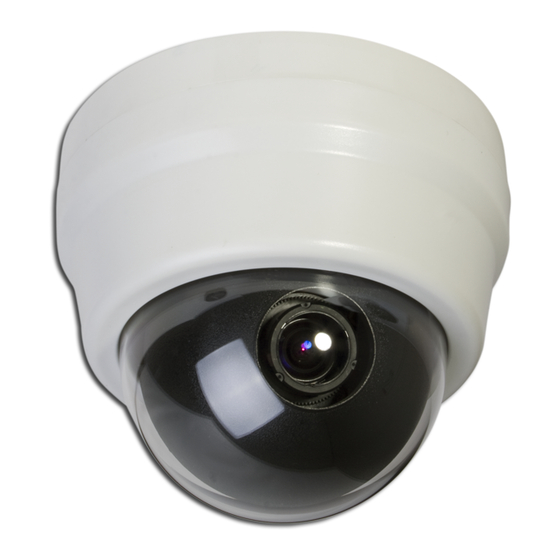

Ganz h.264 full hd network indoor dome

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZN-DN312XE-M and is the answer not in the manual?

Questions and answers

Summary of Contents for Ganz ZN-DN312XE-M

  • Page 2: Information To User

    ZN-DN312XE-M Installation Guide INFORMATION TO USER CAUTION RISK OF ELECTRIC SHOCK, DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). CONTACT QUALIFIED SERVICE PERSONNEL FOR INTERNAL PARTS. This symbol is intended to alert the user the presence of un-insulated “dangerous voltage”...
  • Page 3: Table Of Contents

    ZN-DN312XE-M Installation Guide Table of Contents 1. FEATURES ......................... 4 2. PACKAGE CONTENTS ....................5 3. PART NAMES ......................6 4. INSTALLATION ......................7 4.1. Installation Template ...................... 8 4.2. Setting the Lens Position ....................9 4.3. Setting the Image Attribute .................... 9 5.
  • Page 4: Features

    ZN-DN312XE-M Installation Guide 1. FEATURES Camera  Full HD indoor dome IP camera (Vandal proof)  High quality compression in real time streaming  1/2.7” High Quality CMOS Image Sensor  True Day / Night (ICR) and WDR  Improved color rolling suppression Streaming ...
  • Page 5: Package Contents

    ZN-DN312XE-M Installation Guide 2. PACKAGE CONTENTS The package contains main camera, DC power adaptor, DC jack cable, 9-pin and 2-pin terminal blocks, video-out cable, screws, anchors, hex wrench driver, and clamping cores. Unpack carefully and handle the equipment with care.
  • Page 6: Part Names

    ZN-DN312XE-M Installation Guide 3. PART NAMES        * Models herein and their appearance are subject to change without any prior notice. ① Fan The fan and heater (underneath the black panel) are equipped dehumidify and extract heat from internal parts.
  • Page 7: Installation

    ZN-DN312XE-M Installation Guide 4. INSTALLATION Place the installation template (paper) that is included in the package on the desired installation surface. Drill three holes in correct positions based on the template paper, and insert anchor blocks into the holes. Place the camera body and match three alignment holes with three anchor blocks.
  • Page 8: Installation Template

    ZN-DN312XE-M Installation Guide 4.1. Installation Template Installation template image’s size scale in this installation guide is not 1:1. The correct-size template design paper can be found inside the package Caution separately. 01A.01...
  • Page 9: Setting The Lens Position

    ZN-DN312XE-M Installation Guide 4.2. Setting the Lens Position Instruction below describes how to set the lens positions and manually adjust zoom and focus. 1) Remove the dome cover. 2) Adjust the lens to the desired position by manually moving its reinforced body, upper lens shell, or horizontal platform in the following directions.
  • Page 10: Connections

    ZN-DN312XE-M Installation Guide 5. CONNECTIONS N / A N / A N / A N / A     VIDEO AUDIO DC12V ETHERNET MICRO SD   N / A N / A ① Audio input/output The camera has a mono audio input and a mono audio output. Due to low audio output power,...
  • Page 11 ZN-DN312XE-M Installation Guide Do not exceed the maximum input voltage or relay rate. Caution Internal Internal Output of Output of Sensor Sensor Relay Type Voltage Type ④ Alarm (DO) connection Only the relay type is supported. Relay Rating: Max 24VDC 50mA Do not exceed the maximum relay rating.
  • Page 12 ZN-DN312XE-M Installation Guide ⑤ LAN connection This is a RJ45 LAN connector for 10/100 Base-T Ethernet. Connect a LAN cable. Green Orange When the device is powered-on, both LEDs blink for a second. Then the orange LED turns on initially for a while, and eventually green LED turns on when the device is ready.
  • Page 13: Configuration

    ZN-DN312XE-M Installation Guide 6. CONFIGURATION 6.1.Set up network environment The default IP address of your IP device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’ hexadecimal numbers, which is attached to the device.
  • Page 14: View Video Using Ipadmin Tool

    ZN-DN312XE-M Installation Guide 6.2.1. View video using IPAdmin Tool IPAdminTool automatically scans all of the products including encoders and cameras on the network and displays product’s information, including product name, IP address, MAC address, firmware information, and devices’ uptime. IPAdminTool is provided with SDK at the following SDK path.
  • Page 15: View Video Using Ip Address

    ZN-DN312XE-M Installation Guide 7. When the dialog box appears to request user name and password, enter the default value for the administrator account (case-sensitive) as below: ID: root Password: pass 8. Refresh the page and check if the live streaming images are successfully displayed on a monitor.
  • Page 16: Appendix (A): Specifications

    ZN-DN312XE-M Installation Guide APPENDIX (A): SPECIFICATIONS Summary Camera Module Image Sensor 1/2.7” 1080p CMOS CMOS Effective Pixels 1920x1080 Scanning system Progressive scanning Resolution 1920 x 1080 Min. Color: 1.0 lux, F1.2 ELECTRICAL Illumination BW: 0.001 lux, F1.2 AGC Control Auto 3.0~9.0mm Vari-Focal F1.2...
  • Page 17: Electrical Characteristics

    ZN-DN312XE-M Installation Guide Electrical Characteristics Power Source DC 12V / PoE IEEE802.3af (Class 0) Power Consumption 1100mA (Heater On) Video Output 1 Vp-p, 75Ω, Composite Audio Input Linein, 1.43Vp-p(Min 1.35Vp-p, max 1.49 Vp-p), 39 KΩ Audio Output Lineout, 46mW Power, 16 Ω...
  • Page 18: Appendix (B): Power Over Ethernet

    ZN-DN312XE-M Installation Guide APPENDIX (B): POWER OVER ETHERNET The Power over Ethernet (PoE) is designed to extract power from a conventional twisted pair Category 5 Ethernet cable, conforming to the IEEE 802.3af Power-over-Ethernet (PoE) standard. The IEEE 802.3af-2003 standard allows up to 15.4 W power to device. However, 12.95W is the maximum available power, as some power gets lost in the cable.
  • Page 19: Appendix (C): Dimensions

    ZN-DN312XE-M Installation Guide APPENDIX (C): DIMENSIONS (Unit: mm) 01A.01...
  • Page 20: Appendix (D): Hexadecimal-Decimal Conversion Table

    ZN-DN312XE-M Installation Guide APPENDIX (D): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when converting the MAC address of the device to the IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 94 148...
  • Page 21: Revision History

    ZN-DN312XE-M Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 05/24/2012 First release version 01A.01...
