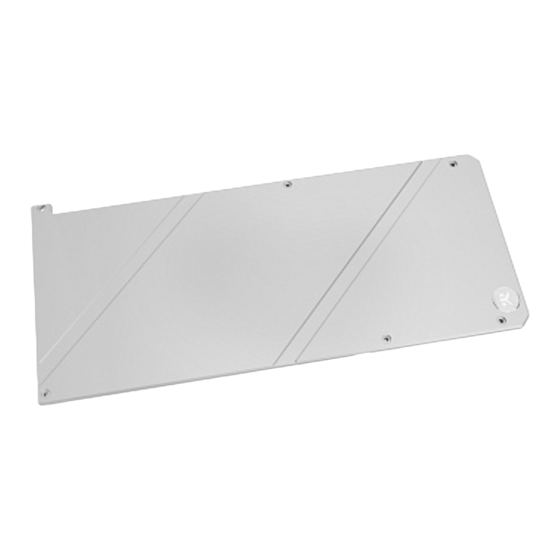

- Page 1 EK-Quantum Vector FTW3 RTX 3070 Ti Backplate BACKPLATE USER GUIDE...
- Page 2 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS BACKPLATE DIMENSIONS REQUIRED TOOLS INSTALLING THE BACKPLATE PREPARING THE GRAPHICS CARD CUTTING AND PLACING THERMAL PADS ATTACHING THE BACKPLATE TESTING THE LOOP WARRANTY SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
M2.5x8 AX1 Screw (8 pcs) Black M2.5x8 AX1 Screw (8 pcs) Nickel Thermal PAD G 1.5 mm - (120x24mm) (2 pcs) EK-Quantum Vector FTW3 RTX 3070 Ti Backplate Thermal PAD G 2.0 mm - (120x24mm) (1 pcs) - 4 -... -
Page 5: Backplate Dimensions
BACKPLATE DIMENSIONS 302.6 mm 3.6 mm 5.2 mm REQUIRED TOOLS Phillips Head Screwdriver Scissors - 5 -... -
Page 6: Installing The Backplate
INSTALLING THE BACKPLATE STEP 1 PREPARING THE GRAPHICS CARD First complete the installation of your EK-Quantum Vector FTW3 RTX 3070 Ti water block according to its installation manual. If water block is already installed, remove the six (6) AX1 screws and their PVC washers(marked on the picture). -
Page 7: Attaching The Backplate
STEP 3 Once cut to size thermal pads should be applied to the backplate as shown in the image. Thermal Pad G 2.0 mm STEP 3 Thermal Pad G 1.5 mm STEP 4 ATTACHING THE BACKPLATE M2.5 x 8 AX1 Screw Place the backplate on to the PCB aligning all of the holes. -
Page 8: Testing The Loop
TESTING THE LOOP To ensure the installation of EK components was successful, we recommend you perform a 24-hour leak test. When your loop is complete and filled with coolant, connect the pump to a PSU outside your system. Do not connect power to any of the other components. -
Page 9: Support And Service
SUPPORT AND SERVICE In case you need assistance, please contact: https://www.ekwb.com/customer-support/ EKWB d.o.o. Pod lipami 18 1218 Komenda Slovenia - EU SOCIAL MEDIA EKWaterBlocks @EKWaterBlocks ekwaterblocks EKWBofficial ekwaterblocks...
