Installation Steps - Danfoss 176F1784 Instructions

1. Remove the label shown in Fig-
ure 2 to expose the USB feed-
through hole from the inside of
the door.
2. Carefully cut through the exterior
label to create a hole for the USB
cable. It is recommended that
the hole be located by creating a
hole in the label from the inside of
the door, then cut through the
decorative label from the outside
to prevent the decorative label
from separating from the door.
3. Remove the retaining nut from
the USB cable. See Figure 3.
4. Insert the USB cable into the door.
The gasket should be located on the
outside of the door. See Figure 4.
Instruction No: 177R0091 V0

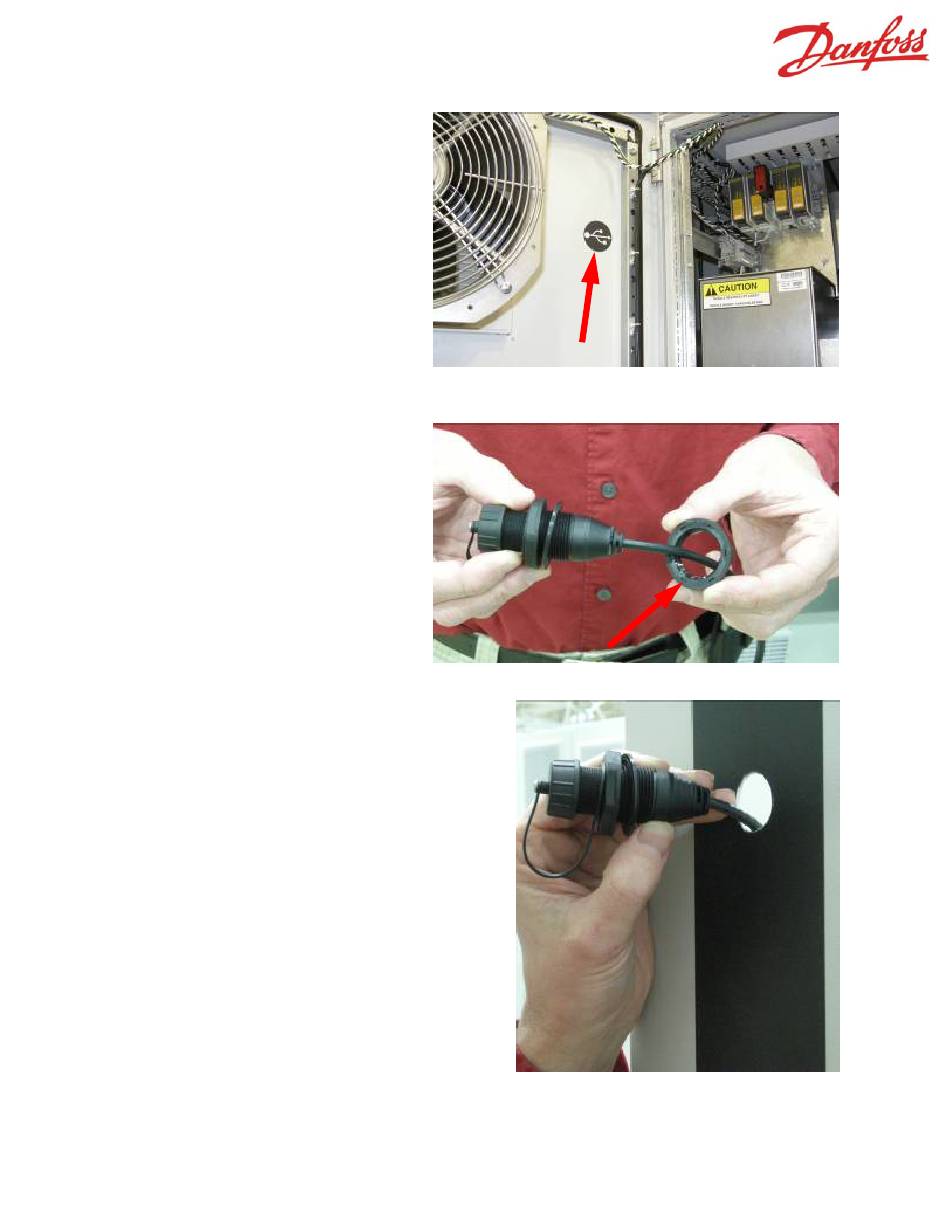

Figure 2. Location of USB feed-through hole.
Figure 3. USB connector retaining nut.
Figure 4. Inserting USB cable into
feed-through hole.
Jan 2009 Page 2
