In-back/out-back cooling kit for fk09a/fb09a and fk10a/fb10a

Advertisement

Quick Links

Installation Guide
In-back/Out-back Cooling Kit
for FK09a/FB09a and FK10a/FB10a
iC7 Series Frequency Converters
1 Overview
1.1 Description
The in-back/out-back cooling kit fits iC7 Series FK09a/FB09a and FK10a/FB10a Frequency Converters. When the kit is installed, air
flows into the lower duct and out through the upper back vent. See
1
2
3

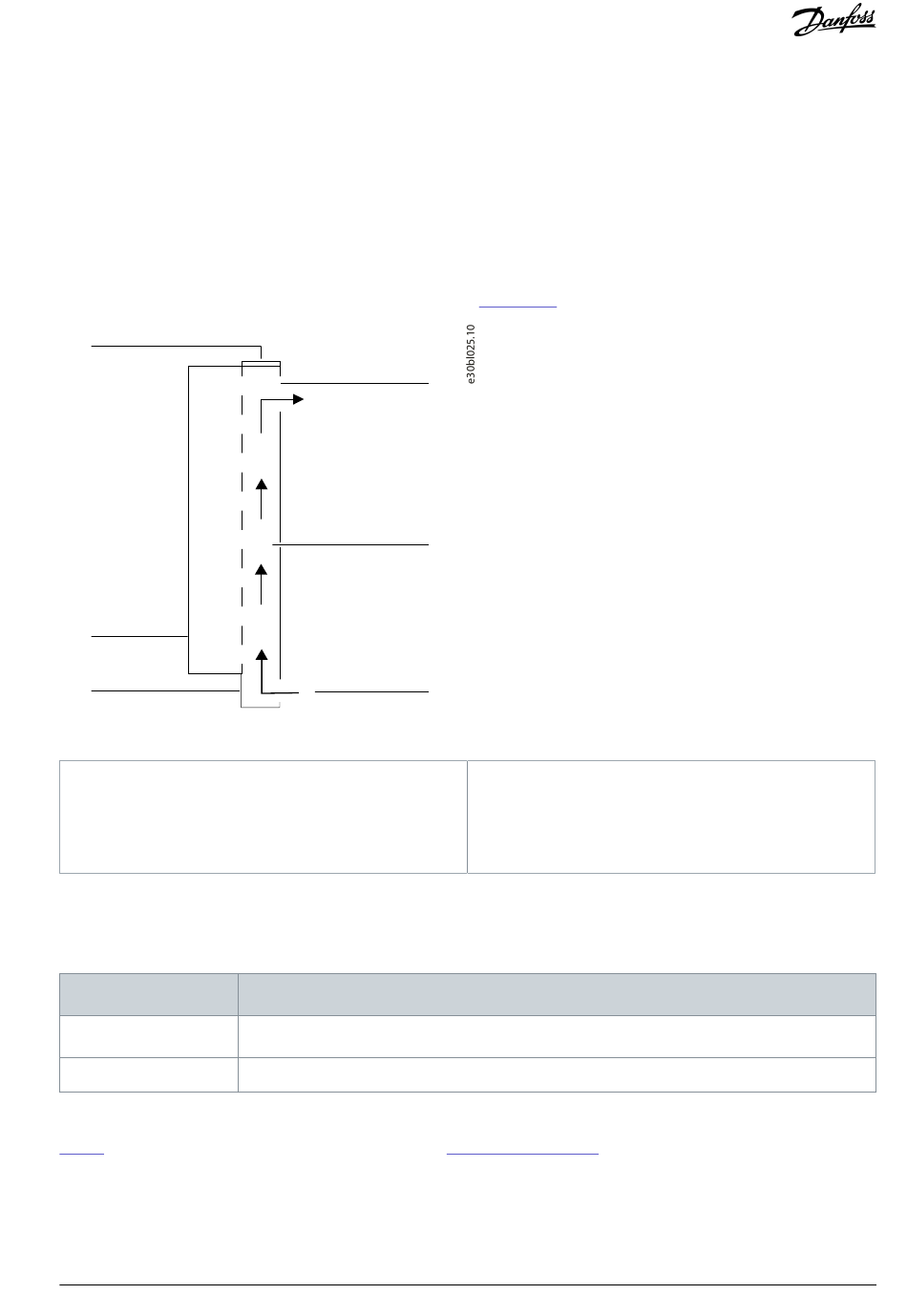

Illustration 1: Direction of Airflow with Kit Installed
1
Top cover
2
Frequency converter enclosure
3
Lower duct
1.2 Kit Numbers
Use these instructions with the following kits.
Table 1: Numbers for In-back/Out-back Cooling Kits
Number
176F4184
176F4185
1.3 Items Supplied
Table 2
provides a list of items included in the kit. Refer also to
Danfoss A/S © 2023.09
Kit description
FK09a/FB09a in-back/out-back cooling kit
FK10a/FB10a in-back/out-back cooling kit
Illustration
1.
4
5
6
4
Back vent
5
Cooling back channel
6
Airflow direction
2.2 Installation
Overview.
AN440656954288en-000101 / 136R0326 | 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 176F4184 and is the answer not in the manual?

Questions and answers

Summary of Contents for Danfoss 176F4184

  • Page 1 Kit description 176F4184 FK09a/FB09a in-back/out-back cooling kit 176F4185 FK10a/FB10a in-back/out-back cooling kit 1.3 Items Supplied Table 2 provides a list of items included in the kit. Refer also to 2.2 Installation Overview. Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326 | 1...
  • Page 2 M5 nut Drain tube Back vent gasket Seal plate Seal plate gasket M10x30 mm mounting screw Grill gasket Back grill Side gasket, left Side gasket, right Bottom gasket Bottom cover plate 2 | Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326...
  • Page 3: Installation Overview

    APPLYING GASKETS This kit contains self-adhesive gaskets to ensure a proper seal between metal parts. Before affixing a gasket, check that the part matches the gasket and that no holes are covered. Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326 | 3...
  • Page 4 In-back/Out-back Cooling Kit for FK09a/FB09a and FK10a/FB10a Installation Guide Installation Illustration 2: Overview of In-back/Out-back Cooling Kit 4 | Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326...
  • Page 5 Peel the paper from the self-adhesive back vent gasket. Attach the back vent gasket around the upper opening in the back of the frequency converter. Illustration 3: Installation of Back Vent Gasket Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326 | 5...
  • Page 6 Adhere the cable entry gasket to the upper surface of the cable entry plate. Position the cable entry plate over the opening in the base plate below the mains and motor terminals. 6 | Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326...
  • Page 7: Mounting The Frequency Converter

    Determine proper placement of the frequency converter, considering the operating environment and cable access re- quirements. Ensure that the air intake and exhaust vents at the back of the frequency converter are not obstructed. Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326 | 7...
  • Page 8 In-back/Out-back Cooling Kit for FK09a/FB09a and FK10a/FB10a Installation Guide Installation (1.3) (7.1) 0.43 (2.5) (0.9) (7.9) Illustration 6: Dimensions for Mounting FK09a/FB09a Frequency Converter 8 | Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326...
  • Page 9 Lift the frequency converter and fasten 4 M10x30 mm screws, 2 in the upper mounting holes and 2 in the lower mounting holes. The 2 seal plates function as washers for the lower mounting screws. Torque all fasteners to 19 Nm (170 in-lb). Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326 | 9...
  • Page 10 Secure the back grill to the duct frame using 1 M5 nut on each stud. Torque to 2.3 Nm (20 in-lb). Affix the grill gasket to the outer side of the back grill. Affix the bottom cover gasket to the bottom cover plate. 10 | Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326...
  • Page 11 Remove 6 screws (T25) from the base plate. Keep the screws for installing the lower duct. Secure the top flange of the duct frame to the bottom of the frequency converter using the screws removed in step 1. Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326 | 11...
  • Page 12 In-back/Out-back Cooling Kit for FK09a/FB09a and FK10a/FB10a Installation Guide Installation Attach the drain tube to the opening in the bottom of the duct assembly. Illustration 11: Installation of Lower Duct and Drain Tube 12 | Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326...
  • Page 13: Installing The Top Cover

    Position the top cover over the vent opening in the top of the frequency converter. Secure the top cover to the frequency converter with the screws removed in steps 2 and 3. Torque to 2.3 Nm (20 in-lb). Danfoss A/S © 2023.09 AN440656954288en-000101 / 136R0326 | 13...
  • Page 14 Danfoss cannot accept any responsibility for possible errors in catalogues, brochures, videos and other material.
