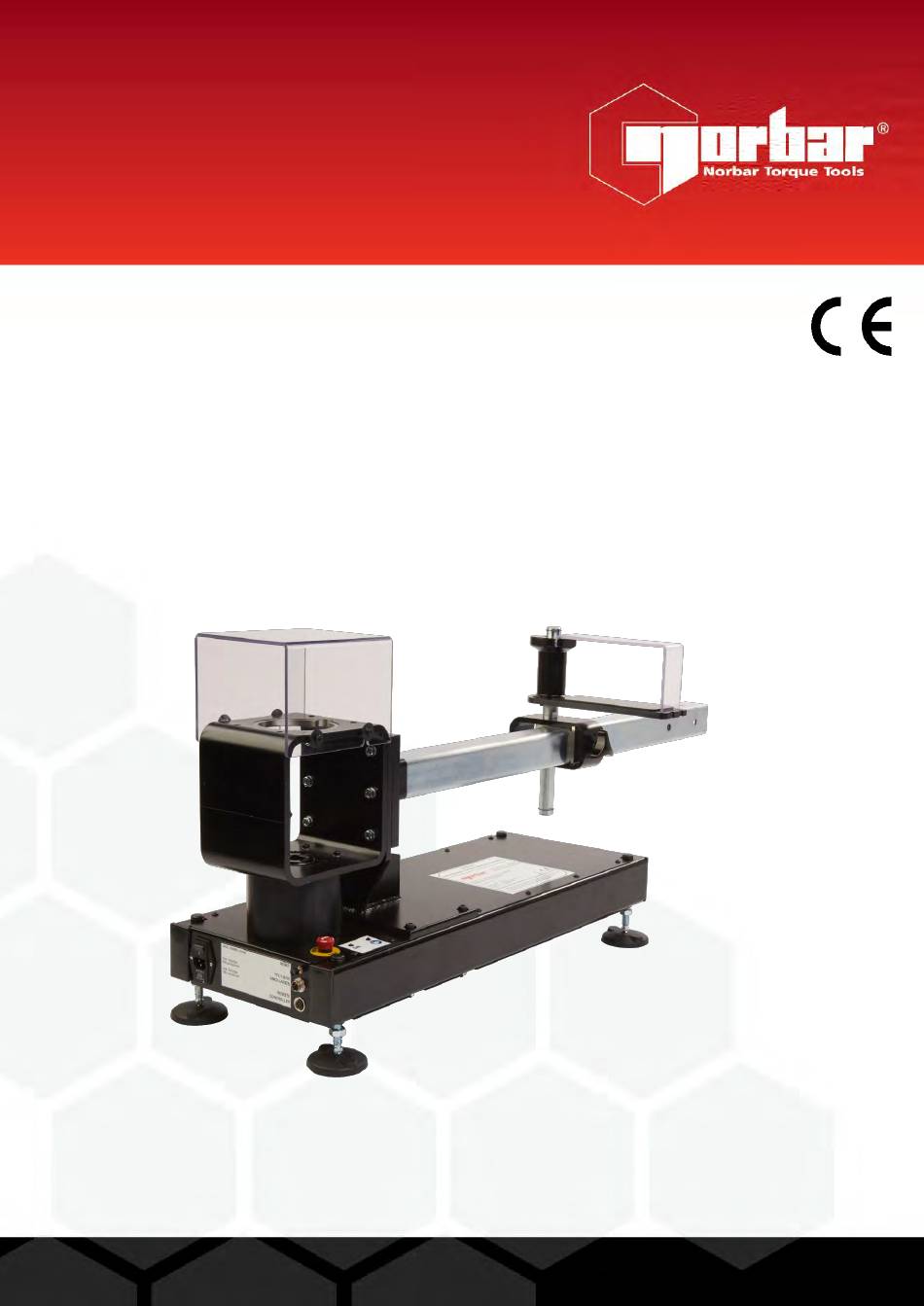

- Page 1 OPERATOR’S MANUAL 3000 N • MOTORISED TORQUE WRENCH LOADER Part Number 34414 | Issue 2 | Original Instructions (English)
-
Page 2: Table Of Contents
CONTENTS Safety Introduction Parts Included Accessories Features & Functions Installation Items Required Location Connecting Remote Controller Box Mains Plug Fitting Mains Voltage Selection Torque Measurement Initial Free Run Test Operating Instructions Locating a Torque Wrench Using the Motorised System Emergency Stop Overload Hints on Torque Wrench Testing Maintenance... -
Page 3: Safety
SAFETY • Always read and understand the manual fully before use. • Train operating personnel to use the Motorised Torque Wrench Loader in a safe manner. • The 3000 N·m motorised torque wrench loader is heavy (40kg). Take care when installing. Only lift by the solid metalwork. -
Page 4: Introduction
• Retains the benefits of the standard torque wrench loader. • Ergonomically designed speed control paddle for accurate applied torque control. • Safety transducer overload feature when used with compatible Norbar measurement system. • Automatic motor stop without operator presence. Emergency stop override. -
Page 5: Installation
A compatible Norbar torque measurement system must be used to facilitate transducer overload protection. The lead is supplied for TST/TTT/ T-Box connection (60303). Connect the 3 way socket into ‘TTT/T-BOX ANCILLARIES’ on unit. Connect 15 way plug to ancillaries socket of a Norbar TST, TTT or T-Box. -
Page 6: Mains Plug Fitting
Mains Plug Fitting If a mains plug is not fitted, follow the plug’s own instructions. The following may be useful: BROWN-LIVE BLUE-NEUTRAL GREEN / YELLOW-EARTH WARNING! IT IS IMPORTANT THAT LIVE, NEUTRAL AND EARTH ARE ALL CONNECTED BETWEEN THE MOTORISED TORQUE WRENCH LOADER AND THE MAINS SUPPLY. -
Page 7: Operating Instructions
OPERATING INSTRUCTIONS Locating a Torque Wrench Please refer to Torque Wrench Loader operator’s manual. Select the correct adapter to place the torque wrench drive into transducer. Set the reaction post position on the reaction arm so it is in the middle of the torque wrench handle. FIGURE 5 Set the reaction post height to ensure the wrench handle is parallel to the reaction arm. -
Page 8: Overload
Overload System Overload action The overload is activated by the ‘HI’ of the measurement system limit detector; refer to limit settings in measurement system manual. T-Box When the torque value reaches the HI (high) limit the system will stop and the RED LED illuminate. -
Page 9: Maintenance
For maintenance and recalibration of the torque instrument and transducer refer to their manuals. Cleaning Do not use abrasives or solvent based cleaners. Norbar recommend a propriety brand of foam based fabric / vinyl cleaner. Use a soft cloth to avoid scratches. -
Page 11: Appendix A - Trouble Shooting
Remove hazard. Press ‘RESET’ to initialise system. Overload protection activated Refer to OVERLOAD section on page 7. Ensure torque is decreasing. DOES Reason Action SYSTEM Other Return to Norbar for repair. OPERATE ? Always replace fuses with same value and type. - Page 12 Tel + 61 (0)8 8292 9777 Tel + 86 21 6145 0368 Email enquiry@norbar.com.au Email sales@norbar.com.cn NORBAR TORQUE TOOLS INC NORBAR TORQUE TOOLS INDIA PVT. LTD 36400 Biltmore Place, Willoughby, Plot No A-168, Khairne Industrial Area, Ohio, 44094 Thane Belapur Road, Mahape, Navi Mumbai –...
