Summary of Contents for norbar EVOTORQUE COMPACT EBT-C Series

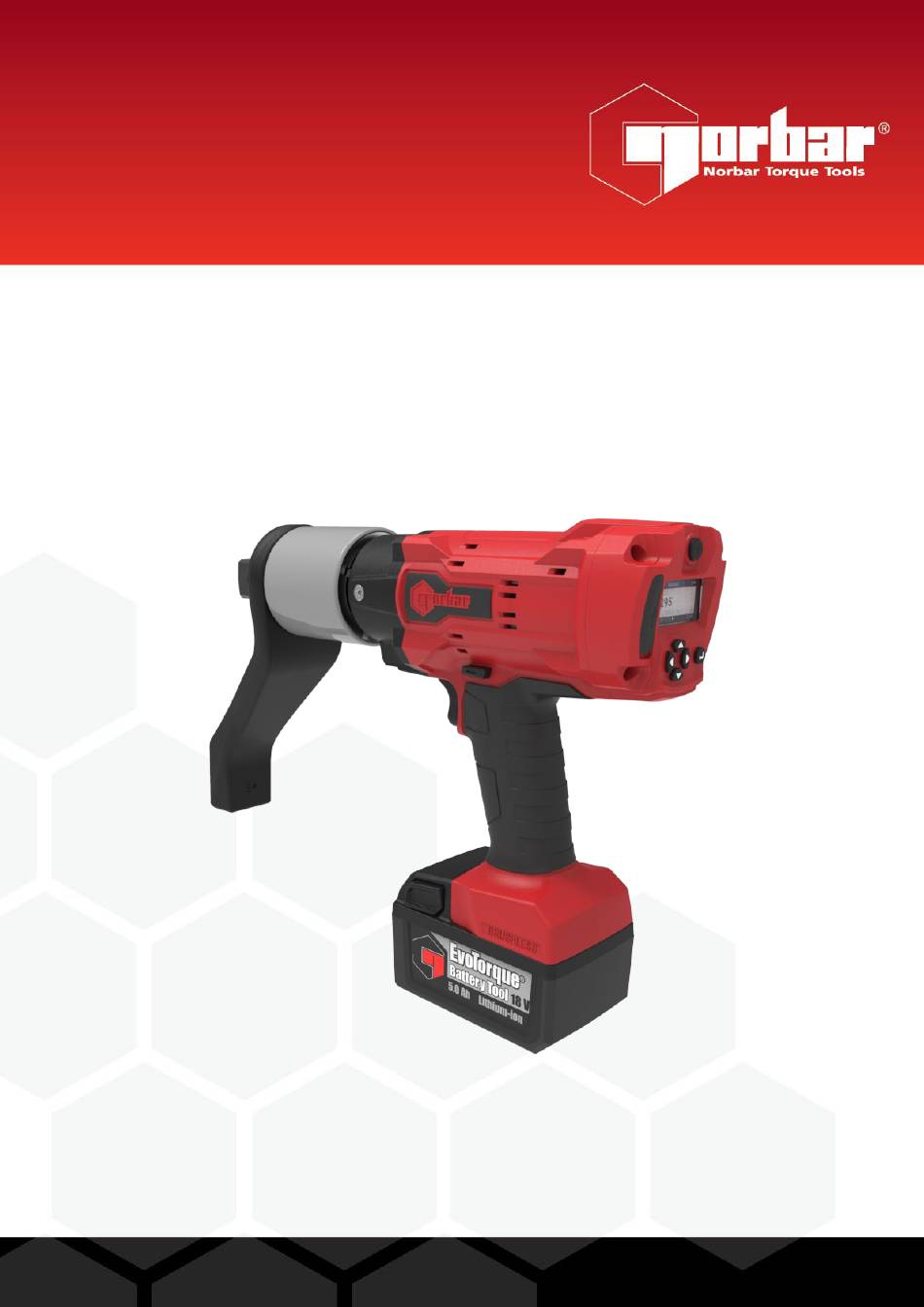

- Page 1 OPERATOR MANUAL EVOTORQUE BATTERY TOOL COMPACT ® (EBT- C) Part Number 34520 | Issue 2 | Original Instructions (English)
- Page 2 Originele Instructies Norsk / Oversettelse av de Operatør manual Norwegian originale instruksjonene Polski / Tłumaczenie oryginalnej Podręcznik operator Visit: Polish instrukcji www.norbar.com/Media/ Português / Tradução das Instruções Manuals Manual do operador Portuguese Originais Svenska / Översättning av Operatör manual Swedish originalinstruktioner...
- Page 3 CONTENTS Read Operator Manuals Available Languages Part Numbers Covered by This Manual Serial Number Safety Messages Safety – General Power Tool Safety Warnings Work Area Safety Electrical Safety Personal Safety Power Tool Use and Care Battery Tool Use and Care Service Safety –...
- Page 4 PART NUMBERS COVERED BY THIS MANUAL This manual covers the set up and use of Norbar EvoTorque Battery Tool Compact (EBT-C) series. ® Torque Model Part Number Calibrated Range Operating Range EBT-C-750 150 - 750 N∙m 75 - 750 N∙m...
- Page 5 Use only with Norbar EvoTorque Battery Pack (EBP Series) batteries.
- Page 6 • When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock • If operating a power tool in a damp location is unavoidable, use a residual Ground Fault Circuit Interrupter (GFCI) protected supply.
- Page 7 Service • Contact Norbar or an authorised distributor for servicing. Use only identical replacement parts to maintain the safety of the power tool. • Never service damaged battery packs. Service of battery packs should only be performed by the...
- Page 8 Incorrect tool use can easily apply excessive torque • Do not remove any labels. Replace all damaged labels (contact Norbar) • Do not lock or tape trigger, or ‘Safe to Start’ button, in the ON position •...
- Page 9 EBC 60352.KIT Accessories Model Description EBT-C-750 EBT-C-1100 1" Drive Square (Fixing Screw) – 19431 (25352.45) Blade Reaction – 19859 Wheel Reaction Assembly – 19864 Reactions to suit specific applications can be supplied, contact Norbar or an authorised distributor for details.
- Page 10 FEATURES AND FUNCTIONS ‘Safe to Start‘ Button Bright Display for visibility in all conditions Drive Square USB Port – for updating Software Clockwise / Counter-Clockwise Switch Trigger Handle Battery Pack Release Button Preset Selection / Menu Reaction Bar LED torch Battery Pack ‘Enter‘...
- Page 11 SET UP INSTRUCTIONS NOTE: If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. WARNING: ALLOW THE TOOL TO EQUALISE TO THE AMBIENT TEMPERATURE / HUMIDITY BEFORE SWITCHING ON. WIPE OFF ANY MOISTURE BEFORE USE.
- Page 12 Reaction Bar Bladed Reaction Wheel Reaction Assembly (accessory) 19859 19864 To fit tool 750 N∙m 750 N∙m Dimensions (mm) 2. Fit reaction bar over the drive square to engage reaction splines. Secure with circlip supplied. TIP: To remove the circlip a flat screwdriver may be required. 3.
- Page 13 DO NOT MODIFY THE REACTION BAR. FAILURE OF THE REACTION BAR CAN ENDANGER OPERATOR SAFETY AND DAMAGE THE TOOL. For alternative reaction bars see ACCESSORIES list. For custom reaction bars contact Norbar or an authorised distributor. Battery 1. Only use EvoTorque Battery Pack (EBP) battery with this tool.
- Page 14 Display Screens: Insert Battery. Press to select option. Press trigger to start tool. Press to adjust option. Press to accept. HOLD to exit. Splash Screen: HOLD to shut down. D = Display Software number M = Motor Software number TORQUE N·m ‘MAIN kgf·m...
- Page 15 Main Menu Use ⇧ ⇩ select. Use ⇧ ⇩ ⇦ ⇨ to adjust. Hold ⇦ to exit. Use ⏎ to Enter. Use ⇧ ⇩ to select PRESET (PRESET 1, PRESET 2 PRESET 3, ….. 10). Main Menu Action Use ⇦ ⇨ for PRESET page: PRESET XX-0 MODE, TORQUE, ANGLE &...
- Page 16 OPERATING INSTRUCTIONS WARNING: KEEP HANDS CLEAR OF THE REACTION BAR. WARNING: WHEN USING THIS TOOL IT MUST BE SUPPORTED AT ALL TIMES IN ORDER TO PREVENT UNEXPECTED RELEASE IN THE EVENT OF FASTENER OR COMPONENT FAILURE. Tightening 1. Fit the tool with required impact or high-quality socket. Slide the socket over the tool square drive ensuring the pin hole in both socket and square drive line up.
- Page 17 3. Ensure TORQUE or TORQUE AND ANGLE preset is correct. TORQUE (TRQ) Torque is applied until the preset torque is reached. Torqu Preset TORQUE Start Time TORQUE AND ANGLE (TAA) The tool applies the preset torque followed by the preset angle.
- Page 18 5. Adopt a posture to counteract normal or unexpected movement of the tool due to reaction forces. 6. Run the tool. Press trigger and ‘Safe to Start’ button within Safe to Start 1 second to slowly bring reaction bar into Button contact with the reaction point.
- Page 19 Releasing 1. Fit the tool with required impact or high-quality socket. Slide the socket over the tool square drive ensuring the pin hole in both socket and square drive line up. Insert holding pin through the hole and place the retaining ring over the holding pin to secure.
- Page 20 For optimum performance and safety, regular tool maintenance is required. The user maintenance is limited to that stipulated in this section. Any other maintenance or repairs should be carried out by Norbar or an authorised distributor. After any repair not covered in this section a recalibration must be completed.
- Page 21 Software Updating The tool contains software that can be updated through a PC internet connection and via the USB Port. For the latest version of the EBT-C software, please contact Norbar or visit the ‘downloads section’ of the Norbar website: https://www.norbar.com/Support/Downloads/Software-Download...
- Page 22 SPECIFICATIONS NOTE: Due to continuous improvement, all specifications are subject to change without prior notice. Symbol Meaning Symbol Meaning REFER TO OPERATOR C-Tick (Australia) MANUAL CE MARK VOLT CANADIAN - UNITED STATES DIRECT CURRENT UNDERWRITERS LABORATORY UKCA (UK CONFORMITY DO NOT PLACE IN GENERAL WASTE ASSESSED) MARKING Mode...
- Page 23 SPECIFICATIONS (continued) Display: Colour TFT (152 x 320 pixels) Motor Voltage: 18.0 VDC Ingress protection IP 20 Environment: Industrial. Store in a clean and dry environment Temperature Range: Operating & storage = -20ºC to +49ºC (-4ºF to 120ºF) Operating Humidity: 85% Relative Humidity @ 30ºC (86ºF) maximum Tool Weight Model...
- Page 24 Full Name: Trevor Mark Lester B.Eng. Date: 18 July 2024 Authority: Compliance Engineer Place: Norbar Torque Tools Ltd., Wildmere Road, Banbury, Oxfordshire, OX16 3JU, UK UK Declaration of Conformity (No 0049.0) This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 25 TROUBLESHOOTING The following is only a guide, for more complex fault diagnoses please contact Norbar or an authorised distributor. Error Code Likely Reason Likely Solutions 1. 18 V BATTERY LOW Under voltage protection Charge battery 2. MCU TOO COLD MCU under temperature Warm up tool 3.
- Page 26 No load torque value not Large change in ambient From MAIN MENU select ZERO at zero temperature Remove main battery for 1 minute to Unknown power cycle the tool. If problem persists Fault not shown above contact Norbar or an authorised distributor...
- Page 27 GLOSSARY OF TERMS Word or Term Meaning Angle Tolerance Pass acceptance for angle result Cal Interval Settable calibration reminder Counter-Clockwise. When set tool has full reverse (FULL-R) Clockwise. When set tool has full reverse (FULL-R) Degrees of angle movement EBC60352 EvoTorque Battery Charger (60352) ®...
- Page 28 Tel + 44 (0)1295 270333 Email: enquiry@norbar.com To find your nearest To access latest versions Norbar company or of all Norbar Operator authorised distributor, Manuals, scan the QR scan the QR code below. code below. www.norbar.com © Norbar Torque Tools Ltd 2024...
