oPeratinG anD installation
instrUCtions

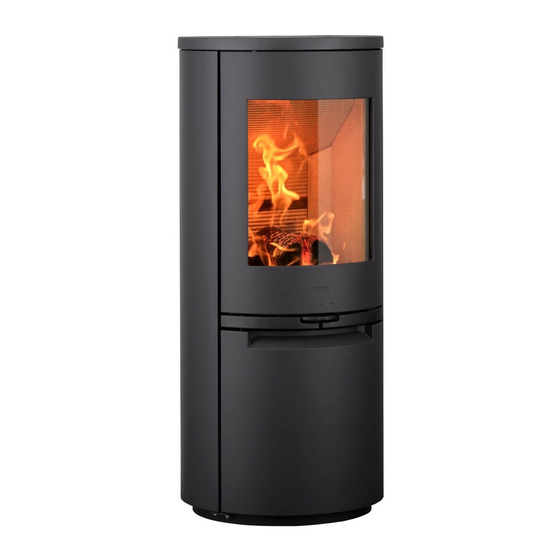

sCan-line 900 / sCan-line 900 sCa
Scan-line 900 SCA is exempt for use in smoke control areas when burning dry wood
PenDinG
eCoDesiGn reaDy
www.heta.dk
en
Danish DesiGn . Danish QUality . Danish ProDUCtion
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Scan-Line 900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Heta Scan-Line 900

Summary of Contents for Heta Scan-Line 900

  • Page 1 900 / sCan-line 900 sCa Scan-line 900 SCA is exempt for use in smoke control areas when burning dry wood PenDinG eCoDesiGn reaDy www.heta.dk Danish DesiGn . Danish QUality . Danish ProDUCtion...

  • Page 2: Declaration Of Performance

    Signed on behalf the manufacturer of 06.06-2019 ____________________________________________________________________________________________________________________ In case of any change of the above-mentioned production type this Declaration of Performance becomes invalid. Heta A/S, Jupitervej 22, DK-7620 Lemvig, Tlf. +45 9663 0600, www.heta.dk Page 1 of 1...
  • Page 3 Signed on behalf the manufacturer of 06.06-2019 ____________________________________________________________________________________________________________________ In case of any change of the above-mentioned production type this Declaration of Performance becomes invalid. Heta A/S, Jupitervej 22, DK-7620 Lemvig, Tlf. +45 9663 0600, www.heta.dk Page 1 of 1...

  • Page 4: Table Of Contents

    Scan-Line 900 and Scan-Line 900 Side windows have been approved according to the EN 13240, NS 3058, NS 3059 and A15 Austria. and the Scan-Line 900 SCA series are modified so that they are also recommended as exempt for use within smoke control areas (SCA) throughout the UK (see clean air act Appendix A).

  • Page 5: Before Installation

    It is important that upon receipt check your Heta product completely and report any damage or defects to your dealer. The packaging must be disposed of as follows: Wood is untreated and able to burn in the stove.
  • Page 6 With your new wood stove you should find the following: Q.C. check Operating / Instruction manual Tool set Heta glove Data plate required tools and grease are not supplied. 8057 0000-DK Heta A/S Jupitervej 22 . DK-7620 Lemvig . Denmark EN 13240:2001/A2:2004 - AEA - NS 3058/3059, Aus §15A...

  • Page 7: Operating Instructions

    Place fi- Open rewood equivalent to 1.52 kg (Scan-Line 900) and 1.71 kg (Scan-Line 900 Side windows) on top of the embers in one layer, perpendicular to Scan-Line 900 SCA stoves are designed and te- the chamber opening.

  • Page 8: Emptying The Ash

    The nominal output of 6.6 kW is equivalent to a firing interval of approx. 50 minutes at: Stove type Open combu- Quantity of stion air vent firewood Scan-Line 900 1,52 Scan-Line 900 Side windows 1,71 The door must be closed during operation.

  • Page 9: Reduced Burning

    Minimum chimney draft: 10 PA for Scan-Line 900 and 12 PA for Scan-Line 900 Side windows. Be aware that the stove will naturally soot if the It is the draft that the stove has been tested and operating air is too low.

  • Page 10: Fuel

    ted wood or chipboard, as these materials can emit poisonous fumes and smoke. Correct firing using well seasoned wood pro- vides optimal heat output and maximum effi- ciency. At the same time, correct firing prevents environmental damage in the form of smoke emissions and reduces the risk of chimney fires.

  • Page 11: Chimney Fire

    release 1.13 Maintenance At combustion 1000 litres of heating oil forms The surface of the stove is treated with a heat- 3.171 tons CO . As wood is a CO neutral heat/ resistant paint. The stove should be cleaned energy source, you save the environment about with a damp cloth.
  • Page 12 1.15 Diagram for the maintenance Qualified Stove Owner Technicia Maintenance / Period Before 60-90 1st Year 2st Year Daily Autum week days days Cleaning the chimney (see. Chimney) Cleaning the chimney and stove Cleaning the stoves firebox Cleaning combustion air intake Cleaning ash bucket Cleaning of the firebox Checking / switch, gasket for door...

  • Page 13: Troubleshooting

    1.16 troubleshooting table - applies to all stove types Fault Cause Troubleshooting Solution Inadequate chimney draft. Lighting problems. When the You can test using a lighter whether Improve the chimney. The chimney only has stove is cold, smoke seeps flame is drawn into the combustion sufficient draft when it is hot.
  • Page 14 1.17 scan-line 900. Cleaning after sweeping or before replacing vermiculite stones Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone. Order of removing Fire bricks. Replace in reverse order. Starting with Fig. 6.
  • Page 15 1.17 scan-line 900 side windows. Cleaning after sweeping or before replacing vermiculite stones Note: it may be necessary to clean/vaccum the holes and air ducts behind the rear stone. Order of removing Fire bricks. Replace in reverse order. Starting with Fig. 5.

  • Page 16: Scan-Line 900 Side Windows

    ø100 1,71 125/150 Side windows Average temperature in the flue pipe connector: Scan-Line 900 302° C - Scan-Line 900 Side windows 321° C * Scan-Line 900 standard 147 kg * Scan-Line 900 full stone 201 kg * Scan-Line 900 stone top...
  • Page 17 1.20 scan-line 900 Parts - inside fire chamber Pos. Name Qty. 1 0023-006028 Vermiculite, rear, bottom 2 0023-006261 Vermiculite, side, right 3 0023-006465 Vermiculite, side, left 4 0023-011495 Baffle 5 0023-012044 Baffle, small 6 0023-012060 Vermiculite, rear, top 7 0023-012061...
  • Page 18 900 side windows Parts - inside fire chamber 12 6 Pos. Name Qty. 0023-006026 Vermiculite, front, right 0023-006028 Vermiculite, rear, bottom 0023-006029 Vermiculite, narrow sid, right 0023-006032 Vermiculite, rear, top 0023-006050 Vermiculite, under Side windows 0023-006110 Baffle, two-part, right...

  • Page 19: Parts

    Parts - Door Pos. Name Qty. 0008-0040 M5x10 Hexagon socket head cap 6000-005970 Close roller, completet 0008-012080 M6x10 Hexagon socket head 0008-012083 M8x25 Hexagon socket head 0008-1002 M6x6 Hexagon socket set screw 0008-2304 M4x6 Hexalobular socket pan head 0008-9082 6x35 Round head rivet 0016-007188 Spring for handle 0016-007198 Close roller 0021-006404 Glass...
  • Page 20 installation instructions Contents Installation instructions ..............21 Distance requirements ..............21 Floor ....................21 Chimney connection ................. 21 Combustion air and ventilation ............22 Stovedrawings/measurments ............23 Connecting direct air below or behind ..........24 Installing the HAC unit ............... 24 Clearances for installation EN 13 240 ..........

  • Page 21: Installation Instructions

    16 of this manual. must be sealed with fireproof material and / or beading. Heta A/S stresses that it is of utmost 2.2 floor importance that this is done correctly with very tight joints.

  • Page 22: Combustion Air And Ventilation

    The Scan-Line 900 and Scan-Line 900 Side to flammable material must be followed. It is im- windows have a nominal output of less than 6,6...

  • Page 23: Stovedrawings/Measurments

    2.5 stovedrawings/measurments Scan-Line 900 Scan-Line 900 Stone ø100 ø100 Scan-Line 900 Side windows Scan-Line 900 Stone Side windows ø100 ø100...

  • Page 24: Connecting Direct Air Below Or Behind

    ø100 mm, the draught in the flue depends on this air for optimal combu- stion. Heta recommends max. 4 meters of direct air pipe, with max. 3, 90° bends and a min. of ø100 Flexi-pipe to the floor 2.7 installing the haC unit...

  • Page 25: Clearances For Installation En 13 240

    / side oven furnitures distance stove uninsu- fire wall for- of fire uninsulated uninsulated lated flue ward in front wall next flue pipe flue pipe pipe of oven to oven Scan-Line 175/175 1000 Scan-Line 900 125/150 Side windows...

  • Page 26: Changing To A Back Flue Outlet

    2.9 Changing to a back outlet steel model with casted top...
  • Page 27 3. appendix a The Clean Air Act 1993 and Smoke Control Areas. Under the Clean Air Act local authorities may gulatory Reform (Scotland) Act 2014. In Wales declare the whole or part of the district of the and Northern Ireland these are authorized by authority to be a smoke control area.
