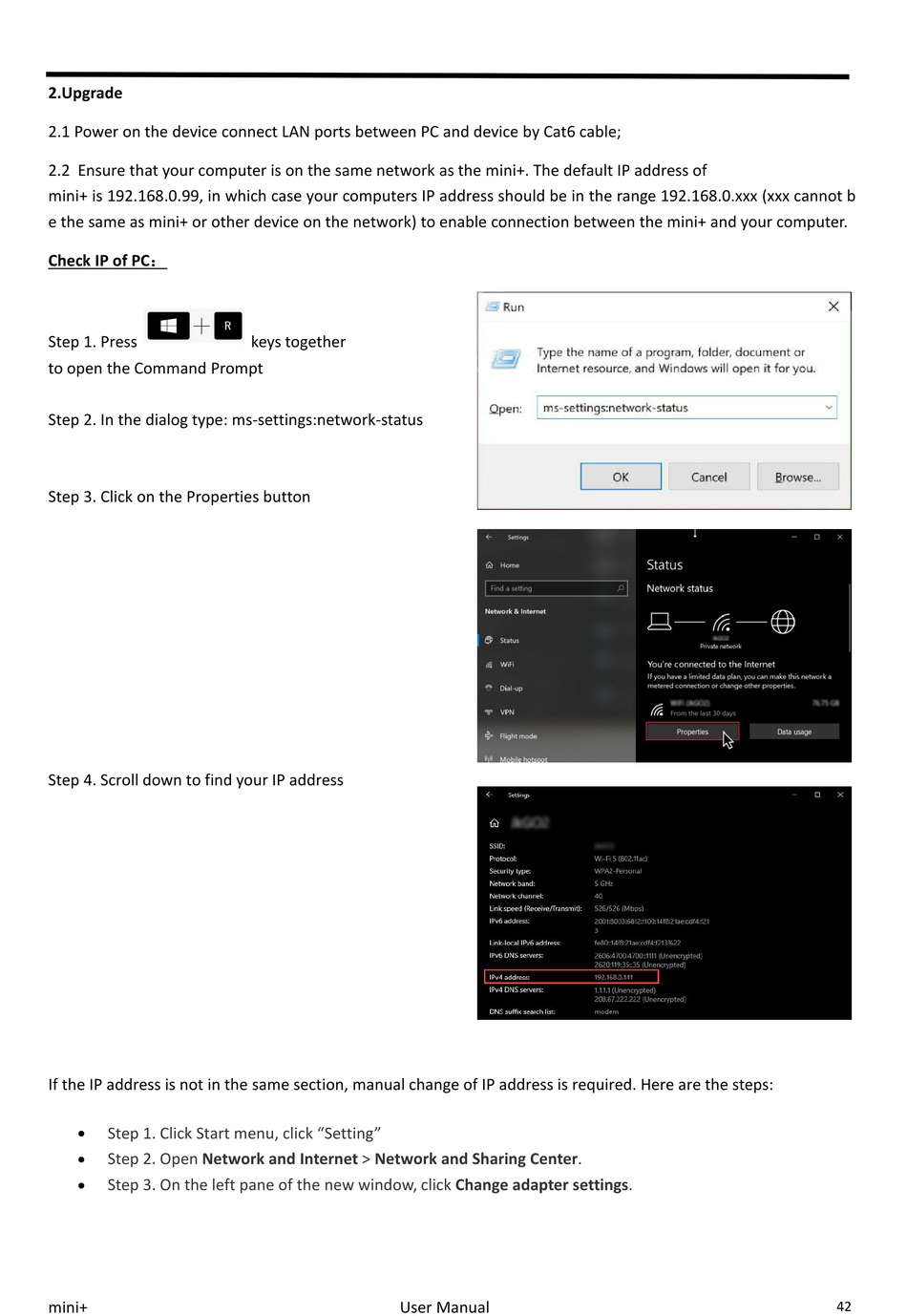

2.Upgrade
2.1 Power on the device connect LAN ports between PC and device by Cat6 cable;
2.2xEnsure that your computer is on the same network as the mini+. The default IP address of
mini+ is 192.168.0.99, in which case your computers IP address should be in the range 192.168.0.xxx (xxx cannot b
e the same as mini+ or other device on the network) to enable connection between the mini+ and your computer.
Check IP of PC：
Step 1. Press
to open the Command Prompt
Step 2. In the dialog type: ms-settings:network-status
Step 3. Click on the Properties button
Step 4. Scroll down to find your IP address
If the IP address is not in the same section, manual change of IP address is required. Here are the steps:
 Step 1. Click Start menu, click "Setting"
 Step 2. Open Network and Internet > Network and Sharing Center.
 Step 3. On the left pane of the new window, click Change adapter settings.
mini+
keys together
User Manual
42
