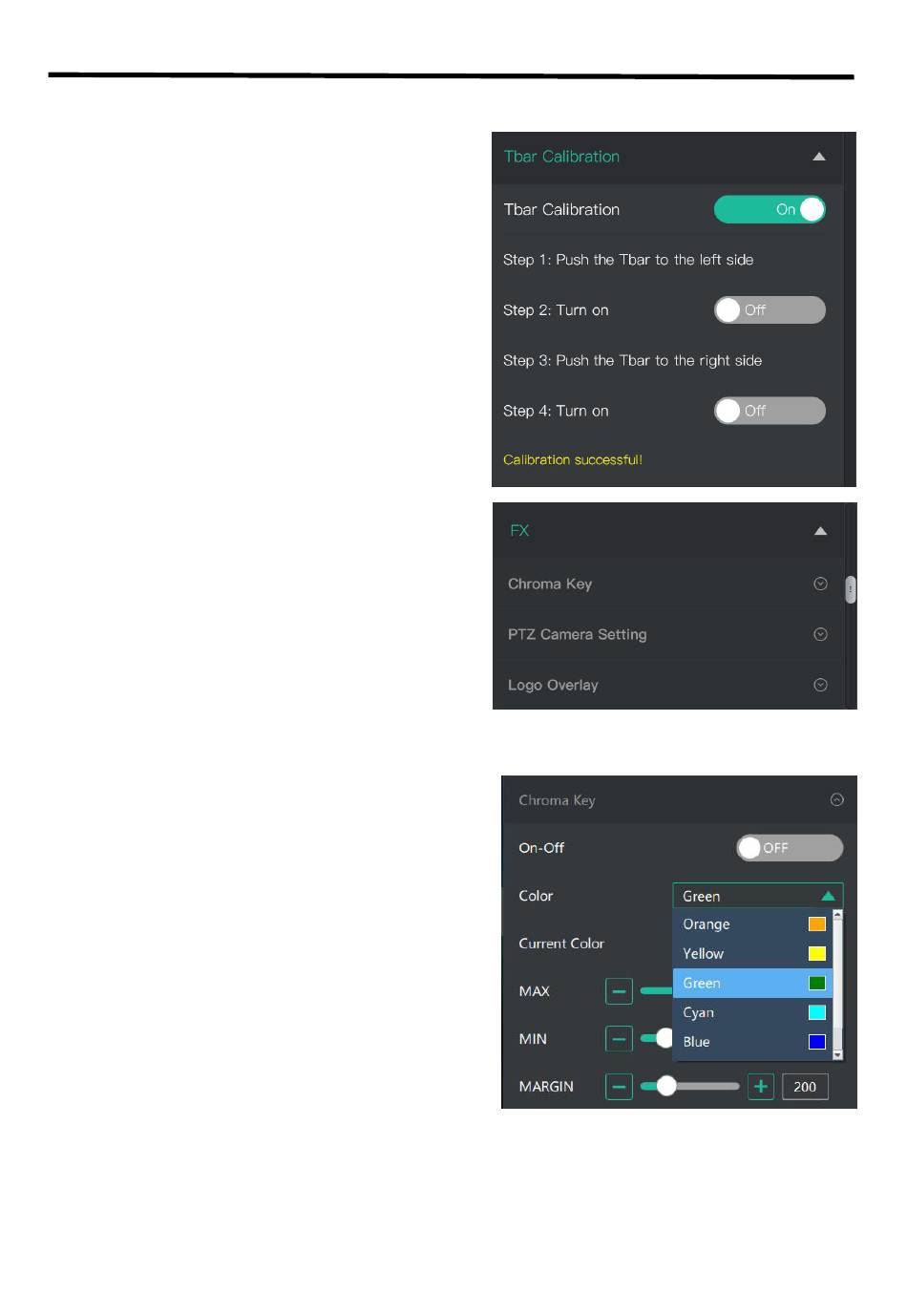

5.2.5 T-Bar Calibration
If the T-Bar is not in the correct position, no other
operation is possible. t-Bar correction is available in
XPOSE mini.
The steps are as follow：
1. Turn on the T-Bar Calibration switch.
2. Push the T-Bar to the far right on the mini+.
3. Turn on the "On" switch
4. Push the T-Bar to the far left on the mini+.
5. Turn on the "On" switch
FX
More features on mini+ .
They are Chroma key, PTZ Camera Setting and Logo Overlay
5.2.6 Chroma Key
mini+ also provides Chroma Key of sub-screens. Sub-screen
keying is possible with PIP turned on,which helps you to
combine characters with the virtual background.
Make sure to use XPOSE mini V1.0.0.9 or higher before using
the latest program, and make sure to use mini+ V1.23 and
higher.
1.Select the base color you want to remove, there are 6 kinds
of colors you can select: orange,yellow,green,cyan,blue and
purple.
