RGBlink ASK nano User Manual
Wireless presentation and collaboration system
Hide thumbs
Also See for ASK nano:
- User manual (29 pages) ,
- Quick start manual (9 pages) ,
- User manual (30 pages)
Related Manuals for RGBlink ASK nano
Summary of Contents for RGBlink ASK nano
- Page 1 ASK nano Wireless Presentation and Collaboration System USER MANUAL Article No: RGB-RD-UM-ASK nano E007 ASK nano User Manual Revision No: V1.7...
-
Page 2: Table Of Contents
3.5.3 Screen Position............................ 16 3.5.4 Airplay Mode............................16 Chapter 4 Order Codes..............................18 4.1 Product Code..............................18 Chapter 5 Support ............................... 19 5.1 Contact Us............................... 19 Chapter 6 Appendix...............................20 6.1 FAQ.................................. 20 6.2 Specification..............................21 6.3 Terms & Definitions............................22 6.4 Revision History...............................28 ASK nano User Manual... -
Page 3: Declarations
RGBlink. If the purchaser or a third party carries out modifications or repairs on goods delivered by RGBlink, or if the goods are handled incorrectly, in particular if the systems are commissioned operated incorrectly or if, after the transfer of risks, the goods are subject to influences not agreed upon in the contract, all guarantee claims of the purchaser will be rendered invalid. -
Page 4: Operators Safety Summary
Site Preparation The environment in which you install your ASK nano should be clean, properly lit, free from static, and have adequate power, ventilation, and space for all components. -
Page 5: Chapter 1 Your Product
Chapter 1 Your Product 1.1 In the Box ASK nano Starter Set(TX*1+RX*1) Standard HDMI micro USB Cable(male to Cable*2 female)*1 Optional USB-C - HDMI converter*1 Tip：USB-C to HDMI converter is suggested for notebooks without HDMI port but with USB-C such as MacBook Pro. -
Page 6: Product Overview
APP required, no set up, no messy cables, just click and share. A standard Ask nano Starter set is a combination of one transmitters and one receiver. The receiver is connected to a projector or display, and the transmitters are pluged into HDMI port on PC or any device with HDMI after being powered. -
Page 7: Interface

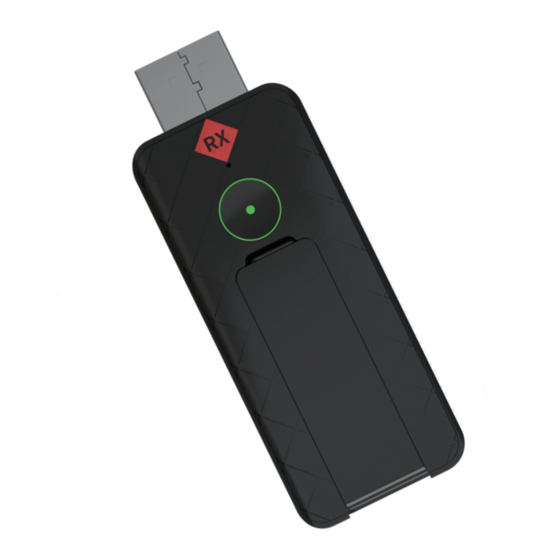

HDMI interface,connect display or projector Mode switch key,switch TX/DLNA/AirPlay Mode and Miracast Mode Indicator light Micro USB power interface Indicator light Illumination Static Red TX is opening Flashing Red TX is searching for RX Flashing Blue Waiting for the connection ASK nano User Manual... - Page 8 Static blue Successful connection and projection Illumination Flash Blue RX is power on and ready for projection Static Blue Already in projection ASK nano User Manual...
-
Page 9: Chapter 2 Install Your Product
Chapter 2 Install Your Product 2.1 Pairing of TX and RX Before delivery, each ASK nano set has been paired , but when extra TX are required, following steps are the method for users to finish TX/RX pairing. (1) If you want to determine whether TX and RX have been paired: ①... -
Page 10: Transmitter Installation
2.3 Transmitter Installation Application 1: 1.Connect ASK nano TX to laptop HDM port. 2.Wait and it will connect automatically. Application 2: 1.Power ASK nano TX with micro USBcable. 2.Connect ASK nano TX to laptop HDM port. 3.Wait and it will connect automatically. -
Page 11: Chapter 3 Use Your Product
3.1 Homepage After RX is connected to big screen, the screen enters homepage. You can find the the hotspot and password on top of homepage. RX hotspot name : ASK nano-XXXXXX; Password : 12345678; 3.2 Computer Screen Projection by TX TX/DLNA/AirPlay TX/DLNA/Airplay is designed for TX and iOS device projection. -
Page 12: Phone Screen Projection
3.5<Menu> If Airplay is set as Mirror, keep RX in TX/DLNA/AirPlay Mode. ●See the current mode above the TV graphic on the display/product 2.Connect iOS device to ASK nano RX from Wi-Fi Settings. ●Wi-Fi Network: ASK nano-XXXXXX ● Password: 12345678 3.From Quick Settings,select Screen Mirroring to mirror the display. -
Page 13: Android
1. Press the button on the RX to enter Miracast Mode. The screen on the RX will show "Miracast Mode". 2. Find "Wireless Projection" in the general list, and select ASK nano from the list to project the current image of phone. - Page 14 4) When iOS device screen for example iPhone is required to display on big screen, press the RX button again to switch back to TX/DLNA/Airplay mode. Connect to the ASK-nano-XXXXX in wifi setting . Open up Sreen Mirroring list to find the ASK-nano-XXXXX-ITV , select it and iPhone screen is cast. ASK nano User Manual...
-
Page 15: Web
2. type the IP address 192.168.XX.1 of RX in the web site bar on your phone or computer. IP address is shown on the right corner of the homepage. 3.5.1 Add Wireless Network Enter the web menu. Click "Add WIFI" and select the network to be added from the WIFI list. ASK nano User Manual... -
Page 16: Language
3.5.2 Language For the time being, Ask nano support English language only. 3.5.3 Screen Position Click "Screen Position" to Zoom in or Zoom out the image of big screen. 3.5.4 Airplay Mode For devices that support AirPlay, users can select the screen projection mode of "Mirror" or "Streaming."... - Page 17 Tencent and other video APPs on iOS device to play video, the video is only played on big screen instead of on Below is an example when AirPlay is set as Streaming, the iQIYI video page on iOS device: ASK nano User Manual...
-
Page 18: Chapter 4 Order Codes
Chapter 4 Order Codes 4.1 Product Code 450-0101-02-0 ASK nano TX 450-1002-01-1 ASK nano Starter Set (TX*1+RX*1) 4.2 Optional Accesorry 910-0013-01-0 USB-C to HDMI Adapter ASK nano User Manual... -
Page 19: Chapter 5 Support
Chapter 5 Support 5.1 Contact Us ASK nano User Manual... -
Page 20: Chapter 6 Appendix
●Wireless transmission is a process of signal encoding and decoding, therefore,signal latency and picture distortion is unavoidable. Q:What if Android phone projection does not work?A: ●Press the switch button on ASK nano RX to switch the casting mode. Q: What is the differences between the two cast Mode? ●TX/DLNA/AirPlay Mode ASKnano TXor iOS phone can cast in this mode ●... -
Page 21: Specification
Performance Output Resolutions HDMI VESA Up to 1920×1080@60 Supported Standard HDMI Power Input Voltage DC 5V/0.5A Max Power 2.5W Environment Temperature 0 ℃ ~70 ℃ Humidity 10%~85% Physical Weight 0.026kg Packaged 0.24kg(TX*1+RX*1) Dimension 85mm×32mm×13mm Packaged 120mm×120mm×50mm(TX*1+RX*1) ASK nano User Manual... -
Page 22: Terms & Definitions
●DVI：Digital Visual Interface. The digital video connectivity standard that was developed by DDWG (Digital Display Work Group). This connection standard offers two different connectors: one with 24 pins that handles digital video signals only, and one with 29 pins that handles both digital and analog video. ASK nano User Manual... - Page 23 HDMI 2.1 : released on November 28, 2017. It adds support for higher resolutions and higher refresh rates, Dynamic HDR including 4K 120 Hz and 120 Hz. ● DisplayPort: A VESA standard interface primarily for video, but also for audio, USB and other data. DisplayPort (orDP) ASK nano User Manual...
- Page 24 ● USB: Universal Serial Bus is a standard that was developed in the mid-1990s that defines cables, connectors and communication protocols. This technology is designed to allow a connection, communication and power supply for ASK nano User Manual...
- Page 25 ●HDCP: High-bandwidth Digital Content Protection (HDCP) was developed by Intel Corporation an is in wide use for protection of video during transmission between devices. ●HDBaseT: A video standard for the transmission of uncompressed video (HDMI signals) and related features using Cat 5e/Cat6 cabling infrastructure. ASK nano User Manual...
- Page 26 DMX512 is delivered over cable of 2 twisted pairs with 5pin XLR cables for connection. ●ArtNet: An ethernet protocol based on TCP/IP protocol stack, mainly used in entertainment/events applications. Built on the DMX512 data format, ArtNet enables multiple “universes” of DMX512 to be transmitted using ethernet networks ASK nano User Manual...
- Page 27 In NTSC video, the most commonly used colour bars are the SMPTE standard colour bars. In PAL video, the most commonly used colour bars are eight full field bars. On computer ASK nano User Manual...
-
Page 28: Revision History
The source device will then output the provided EDID data, ensuring proper video image qality. 6.4 Revision History The table below lists the changes of ASK nano User Manual. Format Time... - Page 29 All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a regist ered trademark of Xiamen RGBlink Science & Technology Co Ltd.While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
