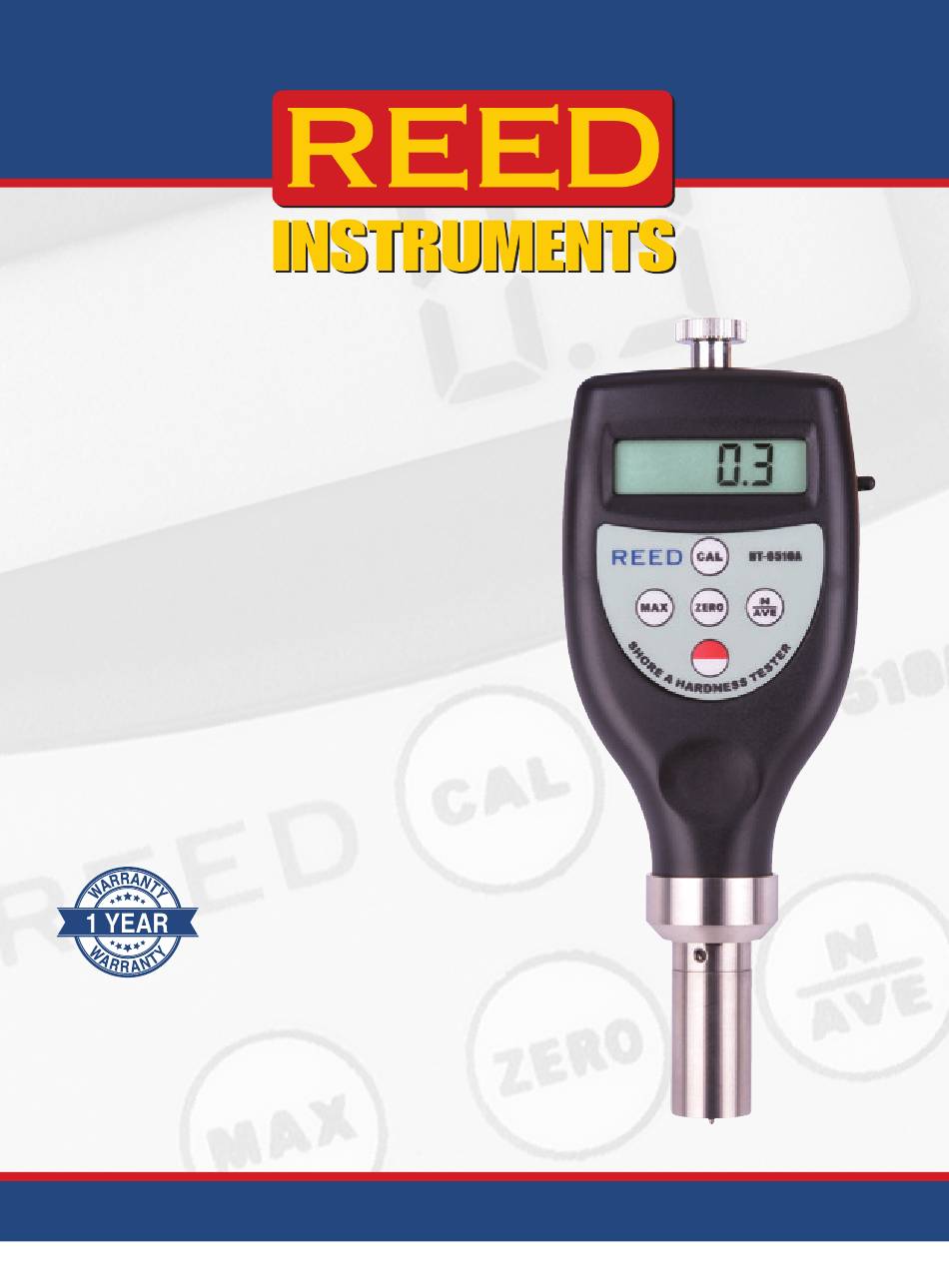

- Page 1 HT-6510A Scale Durometer Instruction Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Product Disposal and Recycling .............. 10 Product Support ..................10 Introduction Thank you for purchasing your REED HT-6510A Durometer. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 3: Product Quality
Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet the stated product specifications. If a certificate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply. -
Page 4: Specifications
Specifications Measuring Range: 10 to 90HA Deviation: ±1HA Resolution: 0.1HA Sampling Time: 1 second Display: 4-digit, LCD Zero Button: Max and Average Functions: Power Supply: 2 x AAA Batteries Low Battery Indicator: Product Certifications: Operating Temperature: 32 to 104°F (0 to 40°C) Storage Temperature: -4 to 140°F (-20 to 60°C) Operating Humidity... -
Page 5: Instrument Description
Instrument Description HT-6510A ZERO 1. Battery Cover 2. Zero Button 3. Max Hold Button 4. LCD Display 5. Average Measaurement Button 6. POWER Button 7. Presser Foot 8. Indenter GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com... -
Page 6: Operating Instructions
Operating Instructions Power ON/OFF Turn the meter on by pressing the button. To turn the meter off, press and hold the button for approx. 2 seconds and release when "OFF" appears on the display. Measuring Procedure The material under test should be a minimum of 6mm (0.25"). The test area should allow measurements to be taken at least 12mm from any edge. -
Page 7: Maximum Measurement Mode
Maximum Measurement Mode Press the MAX button to enter the maximum value mode. The Max Indicator will appear on the display. Hold the durometer vertically with the point of the indenter at least 12mm from any edge. Place the presser foot onto the test piece while keeping the foot parallel to the surface. -
Page 8: Auto Power Off
Place the presser foot onto the test piece while keeping the foot parallel to the surface. Apply enough force to ensure proper contact between the presser foot and the test piece. Keep in place and Hold for approx. 2 seconds. 10. -
Page 9: Battery Replacement
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 10: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 11 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
