- Page 1 R3000SD Data Logging pH/ORP Meter Instruction Manual REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 2: Table Of Contents
Selecting the Temperature Unit of Measure (t-CF) ......13 Setting pH manual Temperature Compensation Value ....... 13 ESC ....................14 Verify Set Time and Date ..............14 Verify Sampling Rate ................14 continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 3: Introduction
Product Disposal and Recycling .............. 21 Product Support ..................22 Introduction Thank you for purchasing your REED R3000SD Data Logging pH/ORP Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. -
Page 4: Safety
Included • Soft Carrying Case • Batteries Specifications Temperature Automatic Temperature Compensation (ATC): Manual: 33.8 to 212°F (1 to 100°C) Optional ATC Probe (R3000SD-ATC): 32 to 149°F (0 to 65°C) ORP (mV) Measuring Range: -1999 to 1999mV Accuracy: ±(0.5% +2 dgt) Resolution: 1 mV continued... - Page 5 Battery Life: Sampling Time Dependent Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 80% Dimensions: 7 x 2.7 x 1.9" (177 x 68 x 45mm) Weight: 1.1lb (489g) REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
-
Page 6: Instrument Description

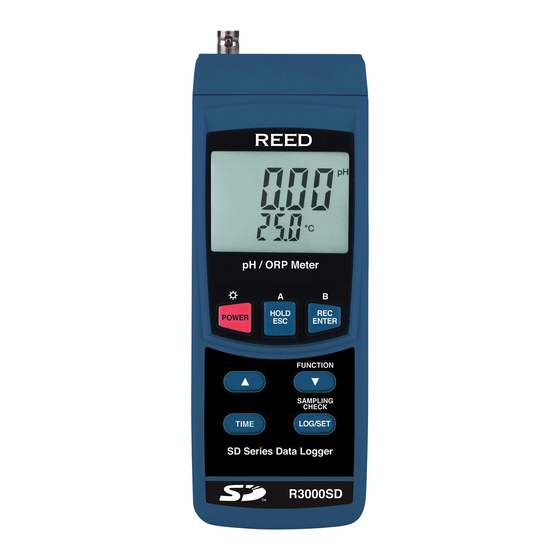

Meter HOLD POWER FUNCTION SAMPLING CHECK TIME LOG/SET SD Series Data logger R3000SD 1. LCD Display 10. RS-232 Output Jack 2. POWER/Backlight Button 11. Reset Pin 3. Up Button 12. Power Adapter Input Jack 4. TIME Button 13. Tripod Mounting Screw 5. -
Page 7: Display Description
2. Date & Time Values/Temperature Measurement Reading 3. Date/Time Stamp 4. Data Logging Status Indicator 5. SD Card Status Indicator 6. Temperature Unit of Measure 7. Maximum and Minimum indicator 8. Record Mode Indicator 9. Data Hold Indicator 10. Low Battery Indicator REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 8: Operating Instructions
The temperature compensation value appears on the lower part of the LCD display. For automatic temperature compensation, an external temperature probe is connected to the meter (R3000SD-ATC) and inserted into the solution under test. The temperature compensation value will also appear on the lower part of the LCD display. -
Page 9: Ph Measurement Mode (Automatic Temperature Compensation)
Press the HOLD button again to resume normal operation. Note: When the Data Hold feature is active all buttons except the POWER button are disabled. Recording Maximum and Minimum Readings Press the REC button to enter recording mode as indicated by "REC" on the LCD. The meter will now begin recording maximum and minimum readings. While in recording mode; continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 10: Backlight
Set pH manual Temp. compensation value, pH only Exit Setup mode Once the appropriate parameter has been selected, follow the instructions below. Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 11: Formatting The Sd Card (Sd F)
Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. The internal clock will keep accurate time when the meter is powered off. When new batteries are installed the clock will have to be reset. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 12: Setting The Data Logging Sampling Rate (Sp-T)
ON (enabled) or OFF (disabled). Press the ENTER button to confirm selection. Press the SET button to save and jump to next parameter. Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 13: Setting Data Decimal Format (Dec)
°C or °F. By default, the meters temperature compensation factor is set to 25°C or 77°F. Press the ENTER button to confirm selection. Press the SET button to save and jump to next parameter. Note: At any time, you can press the ESC button to exit the Setup mode and resume normal operation. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 14: Esc
SD card at any time. In order to setup the meter for manual data logging, follow steps 1 through 7 below. Set the data logging sampling rate to "0" seconds. Press the REC button and "REC" will appear on the LCD. Press the LOG button to enter manual data logging function as indicated by "DATALOGGER". continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 15: Automatic Data Logging
3.48 Degree_C 19-07-10 11:00:55 Degree_C 19-07-10 11:00:59 3.46 Degree_C 19-07-10 11:01:03 3.45 Degree_C 19-07-10 11:01:07 3.56 Degree_C 19-07-10 11:01:11 3.45 Degree_C 19-07-10 11:01:15 3.45 Degree_C 19-07-10 11:01:19 3.45 Degree_C 19-07-10 11:01:23 Degree_C continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 16: Ph Calibration
4.00 and pH 7.00 buffer solutions when measurements are expected to be on the lower side of the pH scale. Use the pH 7.00 and pH 10.00 buffer solutions when measurements are expected to be on the higher side of the pH scale. Connect the optional pH electrode into the pH input jack Turn the meter on by pressing the POWER button. continued... REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 17: Clearing Ph Calibration Data
Press the buttons to until "CLr" appears on the display. Press the ENTER button to confirm and erase all calibration data. The display will continuously blink while the calibration data is being erased. When complete, the meter will resume normal operation. REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 18: Data Stream Output
Positif (+) = 0, Negatif (-) = 1 RS-232 Mono Jack °C = 01, °F = 02, pH = 05, mV = 18 Pin 2 (RX) Sleeve Pin 4 (DTX) 1 = valeur d'affichage supérieure, 2 = valeur d'affichage inférieure REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 19: System Reset
Remove the battery cover. Replace 6 x "AA" batteries. Secure the battery cover with the two (2) Phillips screws. Applications • Water conditioning • General purpose pH measurement • Aquariums • Wastewater monitoring • Beverage production REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com... -
Page 20: Accessories And Replacement Parts
Accessories and Replacement Parts R3000SD-PH1 Professional pH Electrode R3000SD-PH2 General Purpose Electrode R3000SD-ORP Professional ORP Electrode R3000SD-ATC Automatic Temperature Compensation Probe R1404 pH Buffer Solution, 4.01, 500ml R1407 pH Buffer Solution, 7.0, 500ml R1410 pH Buffer Solution, 10.0, 500ml R1420 Electrode Storage Solution, 500ml... -
Page 21: Product Care
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. -
Page 22: Product Disposal And Recycling
Product Support If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com. Please visit www.REEDINSTRUMENTS.com for the most up-to-date manuals, datasheets, product guides and software. - Page 23 TeST & MeaSuRe wITH COnfIDenCe CHeCk OuT OuR LaTeST PRODuCTS! REED Instruments 1-877-849-2127 | info@reedinstruments.com | www.reedinstruments.com...
