Summary of Contents for Reed Instruments LM-8000

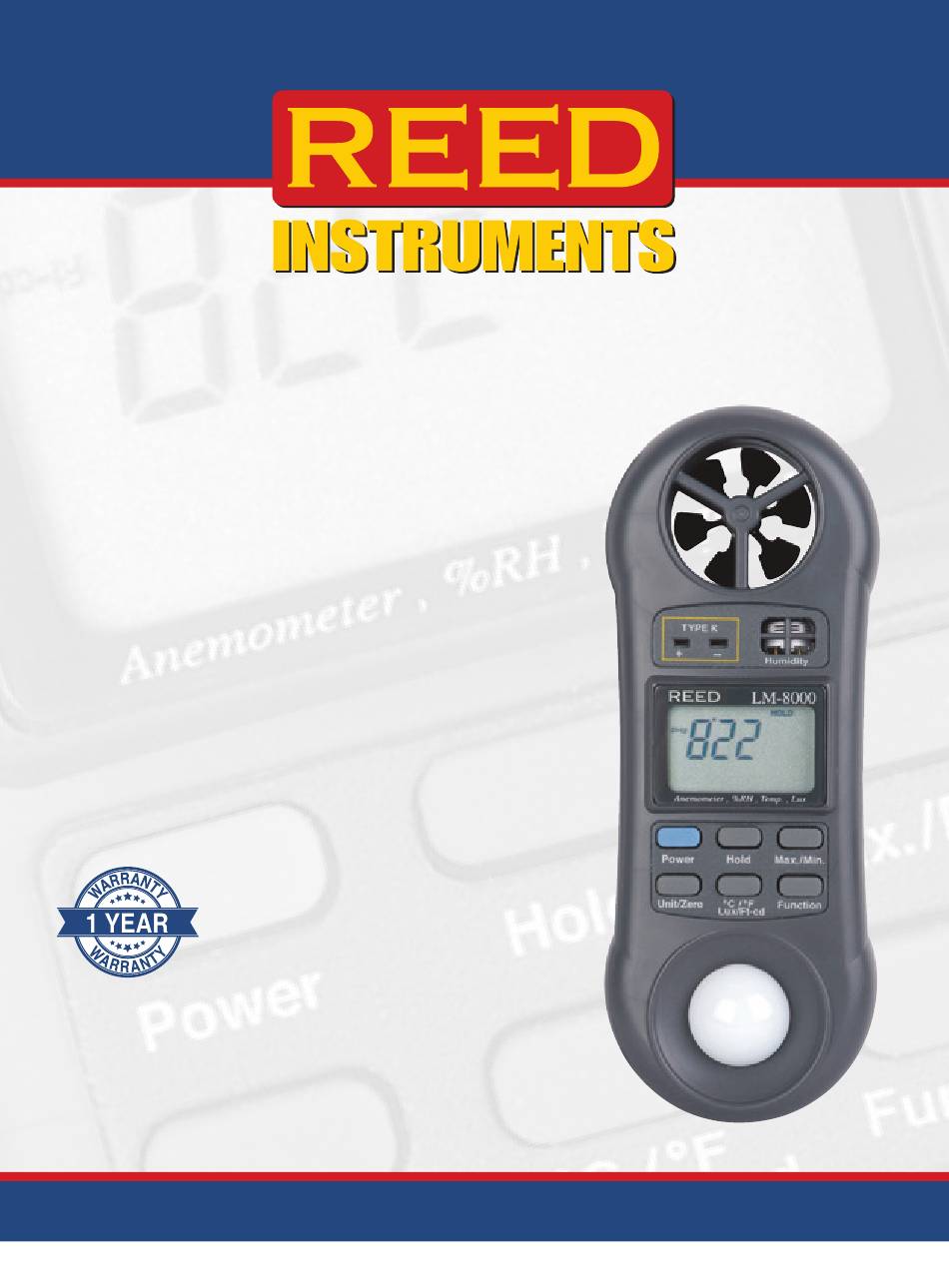

- Page 1 LM-8000 Multi-Function Environmental Meter Instruction Manual GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
-
Page 2: Table Of Contents
Table of Contents Introduction ....................2 Product Quality ................... 3 Safety ......................3 Features ...................... 3 Specifications ..................4-5 Included ...................... 5 Instrument Description ................6 Operating Instructions ................7-10 Power ON/OFF ..................7 Selecting Measurement Modes ............. 7 Air Velocity/Temperature Measurement ..........7 Thermocouple Temperature Measurement .......... -
Page 3: Introduction
Introduction Thank you for purchasing your REED LM-8000 Multi-Function Environmental Meter. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service. Product Quality This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet the stated product specifications. -
Page 4: Specifications
Specifications Air Velocity Measuring Ranges: 0.2 to 30.0m/s 1.4 to 108.0km/h 0.9 to 67.0 mph 80 to 5910 fpm 0.8 to 58.3 knots Accuracy: <20m/s: ±3% FS ≥20m/s: ±4% FS Resolution: 0.1m/s, km/h, mph, knot 1 fpm Temperature Measuring Ranges: Air Temperature: 32 to 122.0°F (0 to 50°C) Contact Temperature (Type K): -148 to 2372°F (-100 to 1300°C) -
Page 5: Included
Max: Zero Adjustment: Yes (for Light) Auto Shut-off: Yes (after 10 minutes) Low Battery Indicator: Power Supply: 9V Battery Product Certifications: Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: 14 to 140°F (-10 to 60°C) Operating Humidity Range: 10 to 85% Dimensions: 6.1 x 2.4 x 1.3"... -
Page 6: Instrument Description

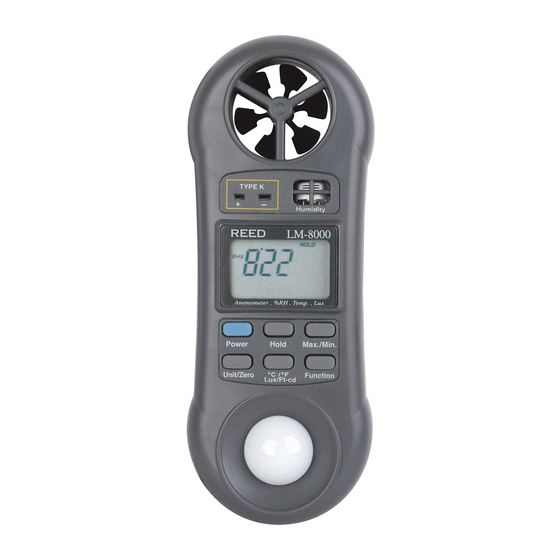

Instrument Description LM-8000 8. Relative Humidity Sensor 1. Air Flow Sensor 2. Thermocouple Input Socket 9. Battery Cover 10. Hold Button 3. LCD display 11. Max/Min Button 4. POWER Button 5. Unit/Zero Button 12. Function Button 13. °C/°F Button &... -
Page 7: Operating Instructions
Operating Instructions Power ON/OFF Turn the instrument on or off by pressing the POWER button. Selecting Measurement Modes The LM-8000 offers 4 types of measurement modes: • Air Velocity/Temperature • Humidity/Temperature • Type K Thermocouple Temperature • Light Meter 1. When the meter is on, press the FUNCTION button to cycle through the measurement modes. -
Page 8: Thermocouple Temperature Measurement
Thermocouple Temperature Measurement Plug the optional Type K Thermocouple Probe into the thermocouple input jack. Select the "tP" function (see Selecting Measurement Modes section for details). In this mode, the LCD display will only show the thermocouple temperature. Press the °C/°F button to select between °C and °F. Note: If no thermocouple is connected, the meter will display "-----". -
Page 9: Zero Adjustment
Zero Adjustment • For best results you should zero the light sensor prior to first use in a dark environment. To achieve this, place the light sensor end of the meter under a desktop or flat surface to block any light. Press the Unit/Zero button to perform the zero adjustment. -
Page 10: Auto Power Off
Auto Power Off To preserve battery life, the meter is programmed to turn off after 10 minutes of inactivity. Battery Replacement When the low battery icon appears on the left corner of LCD display, you will need to replace the batteries. Remove the battery cover using a Phillips head screwdriver, insert a new 9V battery and secure the cover. -
Page 11: Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. - Page 12 TEST & MEASURE WITH CONFIDENCE CHECK OUT OUR LATEST PRODUCTS! GlobalTestSupply www. .com Find Quality Products Online at: sales@GlobalTestSupply.com...
