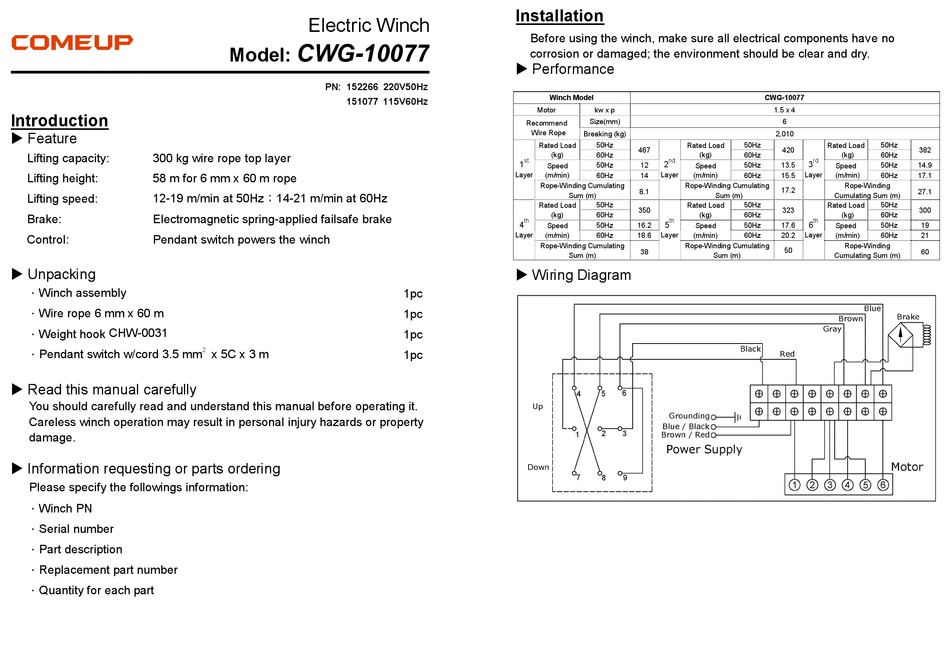

Comeup 152266 220V50Hz Quick Start Manual

Introduction

 Feature
Lifting capacity: 300 kg wire rope top layer
Lifting height: 58 m for 6 mm x 60 m rope
12-19 m/min at 50Hz；14-21 m/min at 60Hz
Lifting speed:
Brake: Electromagnetic spring-applied failsafe brake
Control: Pendant switch powers the winch
 Unpacking
．Winch assembly
．Wire rope 6 mm x 60 m
．Weight hook CHW-0031
．Pendant switch w/cord 3.5 mm
 Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
 Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part

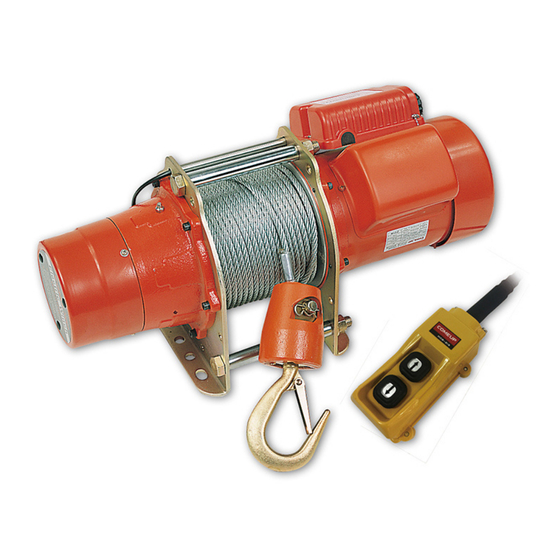

Electric Winch
CWG-10077
Model:
PN: 152266 220V50Hz
151077 115V60Hz
2
x 5C x 3 m

Installation

Before using the winch, make sure all electrical components have no
corrosion or damaged; the environment should be clear and dry.
 Performance
Winch Model
Motor
Recommend
Wire Rope
Rated Load
(kg)
st
1
Speed
Layer (m/min)
Rope-Winding Cumulating
Sum (m)
Rated Load
(kg)
th
4
Speed
Layer (m/min)
Rope-Winding Cumulating
Sum (m)
 Wiring Diagram
1pc
1pc
1pc
1pc
kw x p
Size(mm)
Breaking (kg)
50Hz Rated Load 50Hz
467
60Hz (kg) 60Hz
nd
2
50Hz 12 50Hz
Speed
Layer (m/min)
60Hz 14 60Hz
Rope-Winding Cumulating
8.1
Sum (m)
50Hz Rated Load 50Hz
350
60Hz (kg) 60Hz
th
50Hz 16.2 5 50Hz
Speed
60Hz 18.6 Layer (m/min) 60Hz
Rope-Winding Cumulating
38
Sum (m)
CWG-10077
1.5 x 4
6
2,010
Rated Load 50Hz
420 382
(kg) 60Hz
rd
3
13.5 50Hz 14.9
Speed
Layer (m/min)
15.5 60Hz 17.1
Rope-Winding
17.2
27.1
Cumulating Sum (m)
Rated Load 50Hz
323 300
(kg) 60Hz
th
17.6 6 50Hz 19
Speed
20.2 Layer (m/min) 60Hz 21
Rope-Winding
50
60
Cumulating Sum (m)
