2.5. POWER UP THE ADV7282-M EVALUATION BOARD

1. Connect a mains cable to the 7.5 V supply cable included in the ADV7282-M evaluation kit.
2. Connect the 7.5 V supply cable to Jumper J8 on the ADV7282-M evaluation board. When this is done correctly, LED D6 turns
on (refer to Figure
3. Connect the USB cable included in the ADV7282-M evaluation kit to the computer where you installed the DVP Eval program
and ADV7282-M script files. This cable is used to send commands from your computer to the ADV7282-M evaluation board.
4. Connect the other end of the USB cable to Jumper J7 of the ADV7282-M evaluation board. When this is done correctly, LED D7
turns on (refer to
5. Connect the analog video input(s) to the Ain inputs of the ADV7282-M evaluation board. Refer to
how to connect these inputs.
6. Connect SMA cables to the MIPI CSI-2 output connectors and feed these to a sink device.
Notes:
• The I C lines to the ADV7282-M can be accessed via test points on the evaluation board. Refer to
2
•
Even after the ADV7282-M evaluation board is powered up, the 28.63636 MHz crystal (Y1) will not oscillate until the
ADV7282-M is programmed (refer to Section 2.6).

2.6. PROGRAM THE ADV7282-M EVALUATION BOARD

1. To run the DVP Eval Latest Source application, select Start-> All Programs -> Analog Devices -> DVP Eval Latest Source 10-14-
11.
Press the Choose Board button on the top left of the DVP Eval program window and the Board Selector window appears (refer
2.
to Figure 5).
3. Select ADV7282M_CUST in the Rx section of the Board Selector window.
4. Select None in the MotherBoard section.
5. Select None in the Tx section.
6. Press the Load button. A window similar to that shown in
Rev. A, March 2013
1).
Figure 1).

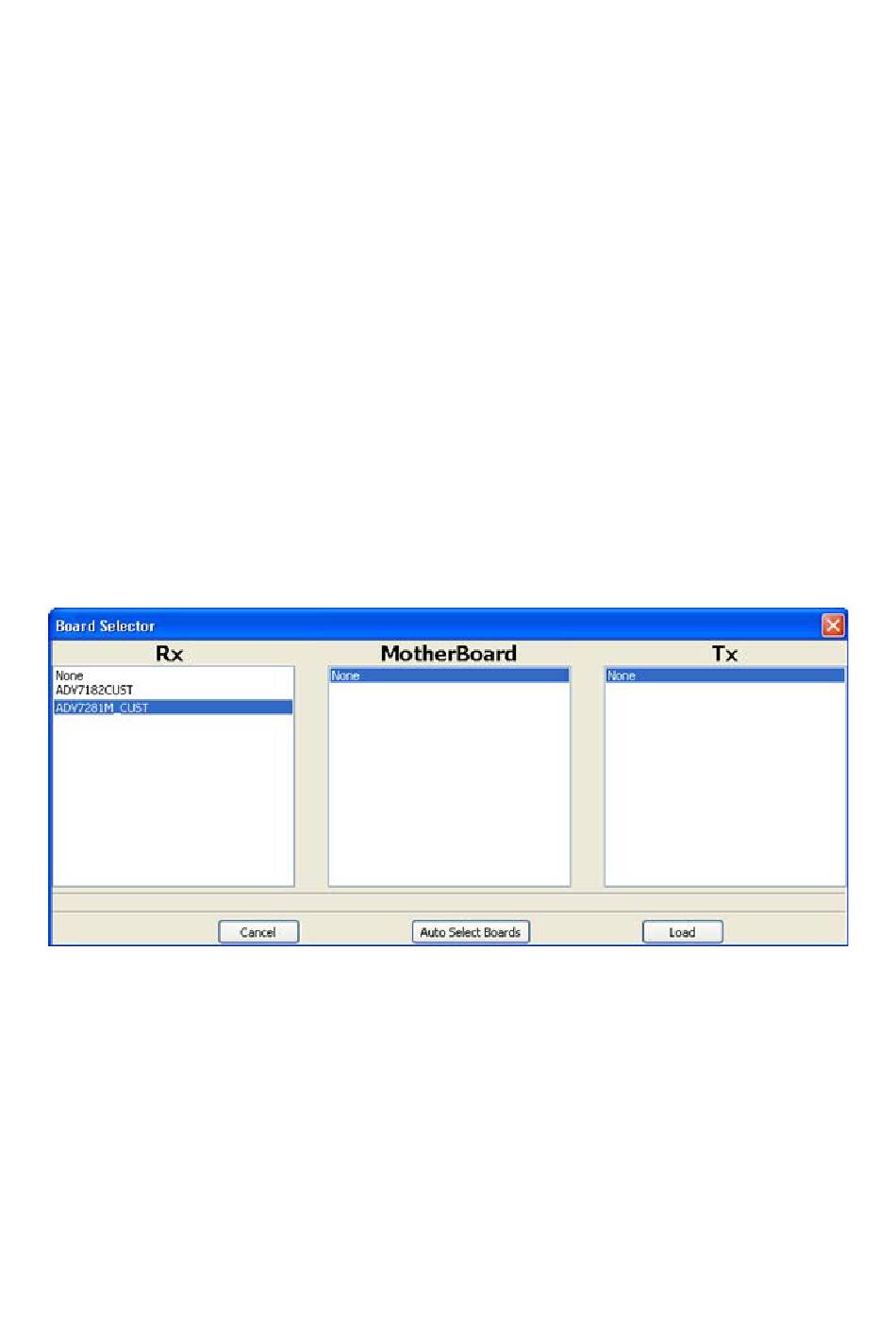

Figure 5. Board Selector Window of DVP Eval Program

Figure 6 appears.
9
ADV7282-M Installation Guide
Table 1 for information on
Figure 1.
