DIS-51 To TLS Console Wiring Connections Connection Instructions - DIS-51 to TLS-450 Series

Connection Instructions - DIS-51 to TLS-450 Series

The RS-232/RS-485 Comm module (P/N 330020-618 for DIS-51 communication
is shown in Figure 7.

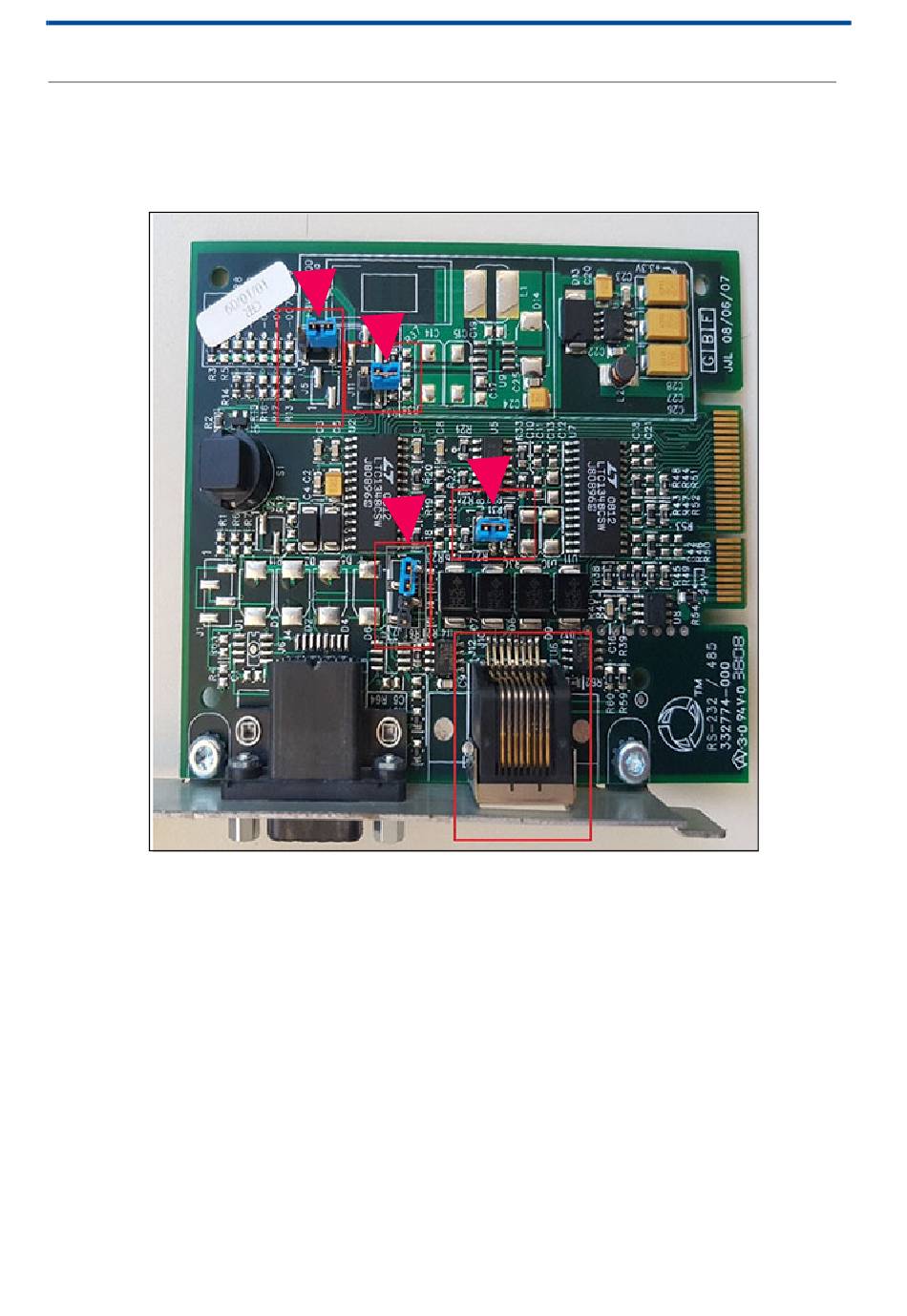

Figure 7. RS-232/RS-485 Comm Module For TLS-450/TLS-450PLUS

RS-485 Serial Port Configuration On TLS-450/TLS-450PLUS

1. The jumpers should be set as shown in Figure 7 above:
a. J7 (determines if serial interface is RS-232 or RS-485) should be set on
pins 1 and 2. Notice the 1 on the right side of the J7 box. That is pin 1.
b. J8 should connect both pins.
2. The other jumpers should be set as shown.

Wiring Diagram

Figure 3 shows the wiring connections between the DIS-51 junction box and the
TLS-450/TLS-450PLUS RS-485 Port.
J5
J11
J7
13
J8
